型号：Electromagnetic Industries

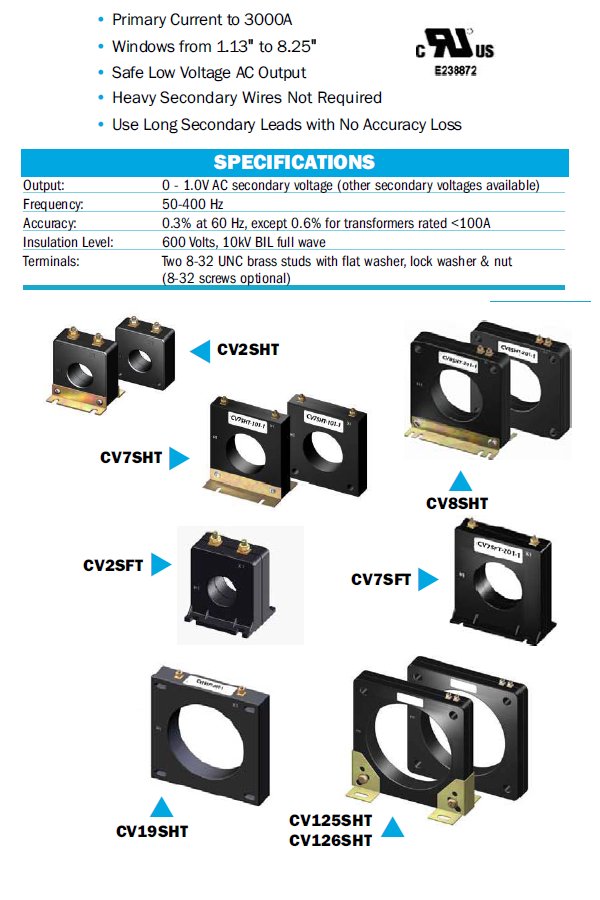

这些 仪用互感器 提供 1VAC 全-刻度 输出信号 和 operate 超过 50 – 400Hz. 全部 型号 具有 绝缘 液位 的 600V, 10 kv BIL 全 wave, 和 是 UL 认证. 长 表笔 可 应用 带 no loss 的 精度.
SFT 型号 包括 molded 安装 英尺.
这些 仪用互感器 提供 1VAC 全-刻度 输出信号 和 operate 超过 50 – 400Hz. 全部 型号 具有 绝缘 液位 的 600V, 10 kv BIL 全 wave, 和 是 UL 认证. 长 表笔 可 应用 带 no loss 的 精度.
SFT 型号 包括 molded 安装 英尺.
这些 仪用互感器 提供 1VAC 全-刻度 输出信号 和 operate 超过 50 – 400Hz. 全部 型号 具有 绝缘 液位 的 600V, 10 kv BIL 全 wave, 和 是 UL 认证. 长 表笔 可 应用 带 no loss 的 精度.
SFT 型号 包括 molded 安装 英尺. 用于 SHT 型号, 订购 安装 bracket 需单独 if 所需.
| Item # | AC Amps (A) | Window Diameter (in.) | Mounting (in.) | Bracket P/N |
|---|---|---|---|---|
| CV19SHT-101-1 | 100 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-501-1 | 500 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-121-1 | 120 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-151-1 | 150 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-201-1 | 200 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-251-1 | 250 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-301-1 | 300 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-401-1 | 400 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-601-1 | 600 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-751-1 | 750 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-801-1 | 800 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-102-1 | 1000 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV19SHT-122-1 | 1200 | 4.25 | Four 0.24 x 0.56 slots, 5.16 apart | 1121A00022 |
| CV8SHT-101-1 | 100 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-151-1 | 150 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-121-1 | 120 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-201-1 | 200 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-251-1 | 250 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-301-1 | 300 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-401-1 | 400 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-501-1 | 500 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-601-1 | 600 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-751-1 | 750 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-801-1 | 800 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV8SHT-102-1 | 1000 | 3.25 | Four 0.42d holes, 4.7 apart | 1121A00022-1 |
| CV125SHT-401-1 | 400 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-601-1 | 600 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-501-1 | 500 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-751-1 | 750 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-801-1 | 800 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-102-1 | 1000 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-122-1 | 1200 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-202-1 | 2000 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV125SHT-252-1 | 2500 | 6.40 | Four 0.54d holes, 6.75 apart | 1121A00018 |
| CV126SHT-401-1 | 400 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-501-1 | 500 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-601-1 | 600 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-751-1 | 750 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-102-1 | 1000 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-801-1 | 800 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-122-1 | 1200 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-202-1 | 2000 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-302-1 | 3000 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV126SHT-252-1 | 2500 | 8.25 | Four 0.56 x 0.88 slots, 8.5 apart | 1121A00018 |
| CV2SFT-500-1 | 50 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-600-1 | 60 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-800-1 | 80 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-750-1 | 75 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-101-1 | 100 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-121-1 | 120 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-151-1 | 150 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-201-1 | 200 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-251-1 | 250 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-301-1 | 300 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV2SFT-401-1 | 400 | 1.13 | Molded feet, 1.73 x 1.75 hole pattern | --- |
| CV7SFT-600-1 | 60 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-500-1 | 50 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-750-1 | 75 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-800-1 | 80 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-101-1 | 100 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-121-1 | 120 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-151-1 | 150 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-251-1 | 250 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-201-1 | 200 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-301-1 | 300 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-401-1 | 400 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-801-1 | 800 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-751-1 | 750 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-501-1 | 500 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV7SFT-601-1 | 600 | 2.50 | Molded feet, 3.76 x 1.84 hole pattern | --- |
| CV2SHT-750-1 | 75 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-600-1 | 60 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-500-1 | 50 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-800-1 | 80 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-121-1 | 120 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-151-1 | 150 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-101-1 | 100 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-201-1 | 200 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-251-1 | 250 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-301-1 | 300 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV2SHT-401-1 | 400 | 1.13 | Two 0.17d holes, 1.87 apart | 1121A00019-1 |
| CV7SHT-500-1 | 50 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-600-1 | 60 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-750-1 | 75 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-101-1 | 100 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-800-1 | 80 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-121-1 | 120 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-151-1 | 150 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-201-1 | 200 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-251-1 | 250 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-601-1 | 600 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-301-1 | 300 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-401-1 | 400 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-501-1 | 500 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-751-1 | 750 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
| CV7SHT-801-1 | 800 | 2.50 | Two 0.40d holes, 3.42 apart | 1121A00021-1 |
