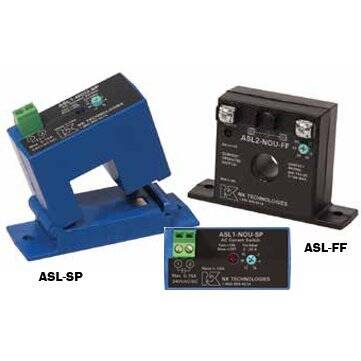

便捷设置交流电流开关 – ASL 系列 – NK 技术

Name: NK Technologies 便捷 设置 交流 电流 开关 – ASL 系列 – NK 技术
Brand: Weschler
SKU: NK Technologies

Weschler美国

型号：NK Technologies

ASL 系列电流传感开关提供电流 operated 固态触点供电来自 monitored 电路. trip 点 adjustment 使用单 turn potentiometer. 此 means installer 可设定点其中输出 changes 状态当 monitored 电路为不 energized, 通过 turning adjustment arrow 以电流 magnitude needed

立即询价加入询价车

概要特点规格相关下载解决方案

产品目录页 104a ASL 数据表 ASL-instructions

trip 点可设定 before 安装或带 no 负载 present

trip 点 indicated 于 potentiometer label

自-供电

2 second inrush delay

5 年质保

Item #	Full Scale Range	Output	Relay Current/Voltage	Case	Price
ASL1-NCU-FF	1-10 A	N.C.	0.20A @ 135V AC/DC	Solid-core	$137.00
ASL2-NOU-FF	10-50 A	N.O	0.15A @ 240V AC/DC	Solid-core	$137.00
ASL2-NCU-FF	10-50 A	N.C.	0.20A @ 135V AC/DC	Solid-core	$137.00
ASL3-NOU-FF	50-100 A	N.O	0.15A @ 240V AC/DC	Solid-core	$137.00
ASL3-NCU-FF	50-100 A	N.C.	0.20A @ 135V AC/DC	Solid-core	$137.00
ASL4-NOU-FF	100-150 A	N.O	0.15A @ 240V AC/DC	Solid-core	$137.00
ASL4-NCU-FF	100-150 A	N.C.	0.20A @ 135V AC/DC	Solid-core	$137.00
ASL1-NOU-SP	2-20 A	N.O	0.15A @ 240V AC/DC	Split-core	$153.00
ASL1-NCU-SP	2-20 A	N.C.	0.20A @ 135V AC/DC	Split-core	$153.00
ASL2-NOU-SP	20-50 A	N.O	0.15A @ 240V AC/DC	Split-core	$153.00
ASL2-NCU-SP	20-50 A	N.C.	0.20A @ 135V AC/DC	Split-core	$153.00
ASL3-NOU-SP	50-100 A	N.O	0.15A @ 240V AC/DC	Split-core	$153.00
ASL3-NCU-SP	50-100 A	N.C.	0.20A @ 135V AC/DC	Split-core	$153.00
ASL4-NOU-SP	100-150 A	N.O	0.15A @ 240V AC/DC	Split-core	$153.00
ASL4-NCU-SP	100-150 A	N.C.	0.20A @ 135V AC/DC	Split-core	$153.00
ASL1-NOU-FF	1-10 A	N.O.	0.15A @ 240V AC/DC	Solid-core	$137.00
