宽 vue 式样 模拟面板表 交流 电压/电流 – Simpson
返回
型号：Simpson

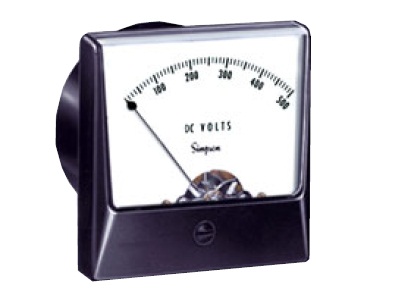

Simpson electric 宽-vue 式样 模拟面板表 特性 clear acrylic 视窗 用于 宽-视角 可见性 和 黑色 插片 指针 用于 便捷 distant 读数. 提供 4 不同 尺寸规格, 宽-vue 式样 为 housed 在 坚固, 黑色 塑料 外壳 用于 added 防护 和 可 订购 在 宽 选择 的 输入 量程.
Simpson electric 宽-vue 式样 模拟面板表 特性 clear acrylic 视窗 用于 宽-视角 可见性 和 黑色 插片 指针 用于 便捷 distant 读数. 提供 4 不同 尺寸规格, 宽-vue 式样 为 housed 在 坚固, 黑色 塑料 外壳 用于 added 防护 和 可 订购 在 宽 选择 的 输入 量程.
Simpson electric 宽-vue 式样 模拟面板表 特性 clear acrylic 视窗 用于 宽-视角 可见性 和 黑色 插片 指针 用于 便捷 distant 读数. 提供 4 不同 尺寸规格, 宽-vue 式样 为 housed 在 坚固, 黑色 塑料 外壳 用于 added 防护 和 可 订购 在 宽 选择 的 输入 量程.
型号 1247, 1257, 1347, 1357, 1349 与 1359
产品目录页 065 widevue 数据表
UL 认证
宽 视角 可见性
酚醛树脂 外壳 带 acrylic 视窗
2½”, 3½”, 4½” 尺寸规格
额外 量程 upon request
| Item # | Model | Type | Ranges | Scale | Height (in) |
|---|---|---|---|---|---|
| 02560 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-1 | 0-1 | 2.47 |
| 02575 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-1 | 0-1 | 2.47 |
| 02615 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-30 | 0-30 | 2.47 |
| 02599 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-15 | 0-15 | 2.47 |
| 02580 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-5 | 0-5 | 2.47 |
| 02590 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-10 | 0-10 | 2.47 |
| 03200 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-25 | 0-25 | 3.25 |
| 02609 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-25 | 0-25 | 2.47 |
| 02619 | 1257 - 2 1/2 | AC Ammeters (self-contained) | 0-50 | 0-50 | 2.47 |
| 03130 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-1 | 0-1 | 3.25 |
| 03150 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-2 | 0-2 | 3.25 |
| 03180 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-10 | 0-10 | 3.25 |
| 03210 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-50 | 0-50 | 3.25 |
| 03205 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-30 | 0-30 | 3.25 |
| 03160 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-3 | 0-3 | 3.25 |
| 03170 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-5 | 0-5 | 3.25 |
| 03190 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-15 | 0-15 | 3.25 |
| 02627 | 1257 - 2 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-300 | 2.47 |
| 03345 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-75 | 0-75 | 4.68 |
| 03240 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-200 | 3.25 |
| 03310 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-10 | 0-10 | 4.68 |
| 03230 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-150 | 3.25 |
| 35074 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-25 | 3.25 |
| 35076 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-75 | 3.25 |
| 02626 | 1257 - 2 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-200 | 2.47 |
| 02624 | 1257 - 2 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-150 | 2.47 |
| 03290 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-3 | 0-3 | 4.68 |
| 35075 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-50 | 3.25 |
| 03335 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-30 | 0-30 | 4.68 |
| 03215 | 1357 - 3 1/2 | AC Ammeters (self-contained) | 0-75 | 0-75 | 3.25 |
| 03220 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-100 | 3.25 |
| 03340 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-50 | 0-50 | 4.68 |
| 02622 | 1257 - 2 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-100 | 2.47 |
| 03280 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-2 | 0-2 | 4.68 |
| 03300 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-5 | 0-5 | 4.68 |
| 35080 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-75 | 4.68 |
| 03320 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-15 | 0-15 | 4.68 |
| 03260 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-1 | 0-1 | 4.68 |
| 03330 | 1359 - 4 1/2 | AC Ammeters (self-contained) | 0-25 | 0-25 | 4.68 |
| 35079 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-50 | 4.68 |
| 03350 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-100 | 4.68 |
| 03250 | 1357 - 3 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-300 | 3.25 |
| 10280 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-15 | 0-15 | 4.68 |
| 35078 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-25 | 4.68 |
| 10240 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-300 | 0-300 | 3.25 |
| 09695 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-100 | 0-100 | 2.47 |
| 10260 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-5 | 0-5 | 4.68 |
| 10100 | 1349 - 4 1/2 | AC Voltmeters-Rectified | 0-10 | 0-10 | 4.68 |
| 10270 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-10 | 0-10 | 4.68 |
| 10350 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-500 | 0-500 | 4.68 |
| 06294 | 1257 - 2 1/2 | AC Milliammeters | 0-10 | 0-10 | 2.47 |
| 09710 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-300 | 0-300 | 2.47 |
| 06300 | 1257 - 2 1/2 | AC Milliammeters | 0-500 | 0-500 | 2.47 |
| 10230 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-250 | 0-250 | 3.25 |
| 06640 | 1357 - 3 1/2 | AC Milliammeters | 0-100 | 0-100 | 3.25 |
| 10170 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-10 | 0-10 | 3.25 |
| 09690 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-50 | 0-50 | 2.47 |
| 10250 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-500 | 0-500 | 3.25 |
| 10018 | 1247 - 2 1/2 | AC Voltmeters-Rectified | 0-300 | 0-300 | 2.47 |
| 10140 | 1349 - 4 1/2 | AC Voltmeters-Rectified | 0-300 | 0-300 | 4.68 |
| 10290 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-25 | 0-25 | 4.68 |
| 10320 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-150 | 0-150 | 4.68 |
| 10210 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-100 | 0-100 | 3.25 |
| 10015 | 1247 - 2 1/2 | AC Voltmeters-Rectified | 0-5 | 0-5 | 2.47 |
| 06295 | 1257 - 2 1/2 | AC Milliammeters | 0-50 | 0-50 | 2.47 |
| 10090 | 1349 - 4 1/2 | AC Voltmeters-Rectified | 0-5 | 0-5 | 4.68 |
| 06630 | 1357 - 3 1/2 | AC Milliammeters | 0-50 | 0-50 | 3.25 |
| 06297 | 1257 - 2 1/2 | AC Milliammeters | 0-250 | 0-250 | 2.47 |
| 10300 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-50 | 0-50 | 4.68 |
| 10340 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-300 | 0-300 | 4.68 |
| 03380 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-300 | 4.68 |
| 10120 | 1349 - 4 1/2 | AC Voltmeters-Rectified | 0-50 | 0-50 | 4.68 |
| 06625 | 1357 - 3 1/2 | AC Milliammeters | 0-10 | 0-10 | 3.25 |
| 03360 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-150 | 4.68 |
| 09705 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-250 | 0-250 | 2.47 |
| 10017 | 1247 - 2 1/2 | AC Voltmeters-Rectified | 0-150 | 0-150 | 2.47 |
| 10220 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-150 | 0-150 | 3.25 |
| 09670 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-10 | 0-10 | 2.47 |
| 10310 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-100 | 0-100 | 4.68 |
| 09700 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-150 | 0-150 | 2.47 |
| 10110 | 1349 - 4 1/2 | AC Voltmeters-Rectified | 0-15 | 0-15 | 4.68 |
| 10130 | 1349 - 4 1/2 | AC Voltmeters-Rectified | 0-150 | 0-150 | 4.68 |
| 10200 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-50 | 0-50 | 3.25 |
| 10016 | 1247 - 2 1/2 | AC Voltmeters-Rectified | 0-10 | 0-10 | 2.47 |
| 09715 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-500 | 0-500 | 2.47 |
| 10180 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-15 | 0-15 | 3.25 |
| 03370 | 1359 - 4 1/2 | AC Ammeters (for use with CT) | 0-5 | 0-200 | 4.68 |
| 10040 | 1347 - 3 1/2 | AC Voltmeters-Rectified | 0-15 | 0-15 | 3.25 |
| 09675 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-15 | 0-15 | 2.47 |
| 10190 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-25 | 0-25 | 3.25 |
| 10330 | 1359 - 4 1/2 | AC Voltmeters-Iron Vane | 0-250 | 0-250 | 4.68 |
| 10060 | 1347 - 3 1/2 | AC Voltmeters-Rectified | 0-150 | 0-150 | 3.25 |
| 09680 | 1257 - 2 1/2 | AC Voltmeters-Iron Vane | 0-25 | 0-25 | 2.47 |
| 10050 | 1347 - 3 1/2 | AC Voltmeters-Rectified | 0-50 | 0-50 | 3.25 |
| 10070 | 1347 - 3 1/2 | AC Voltmeters-Rectified | 0-300 | 0-300 | 3.25 |
| 10020 | 1347 - 3 1/2 | AC Voltmeters-Rectified | 0-5 | 0-5 | 3.25 |
| 10160 | 1357 - 3 1/2 | AC Voltmeters-Iron Vane | 0-5 | 0-5 | 3.25 |
| 10030 | 1347 - 3 1/2 | AC Voltmeters-Rectified | 0-10 | 0-10 | 3.25 |
| 06296 | 1257 - 2 1/2 | AC Milliammeters | 0-100 | 0-100 | 2.47 |
| 06660 | 1357 - 3 1/2 | AC Milliammeters | 0-500 | 0-500 | 3.25 |
| 06670 | 1359 - 4 1/2 | AC Milliammeters | 0-50 | 0-50 | 4.68 |
| 06650 | 1357 - 3 1/2 | AC Milliammeters | 0-250 | 0-250 | 3.25 |
| 06690 | 1359 - 4 1/2 | AC Milliammeters | 0-250 | 0-250 | 4.68 |
| 06665 | 1359 - 4 1/2 | AC Milliammeters | 0-10 | 0-10 | 4.68 |
| 06680 | 1359 - 4 1/2 | AC Milliammeters | 0-100 | 0-100 | 4.68 |
| 06699 | 1359 - 4 1/2 | AC Milliammeters | 0-500 | 0-500 | 4.68 |
