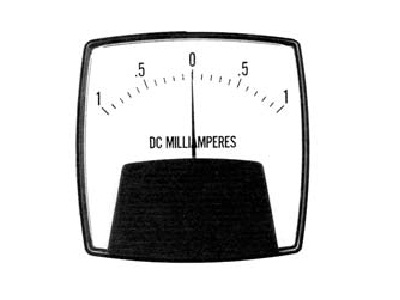

Modutec PB 系列直流电流与电压仪表 – Jewell

Name: Jewell Modutec PB 系列 直流 电流 与 电压 仪表 – Jewell
Brand: Weschler
SKU: Jewell

Weschler美国

型号：Jewell

PB 系列工业面板盘面仪表满足或超过要求的 ANSI C39.1. 安装 stud 配置 complies 带 ANSI 标准. 数字的接线柱 varies 通过尺寸: 1½” 仪表 – 2 接线柱; 2½” 与 3½” 仪表 – 3 接线柱; 4½” 仪表 – 4 接线柱.

这些仪表是提供两者动圈 (rectifier 型式) 和铁 vane 版本.

立即询价加入询价车

概要特点规格相关下载解决方案

这些仪表是提供两者动圈 (rectifier 型式) 和铁 vane 版本.

这些仪表是提供两者动圈 (rectifier 型式) 和铁 vane 版本. 铁 vane 结构为 relatively insensitive 以输入 distortion. rectifier 型式为 less affected 通过频率 variations.

产品目录页 062a Modutec-PB-仪表

四显示尺寸规格: 1½”, 2½”, 3½”, 和 4½”

shielded taut-band 表芯

大型, 便捷以读取刻度

Item #	Type	Case Size (in)	Scale	Resistance	Size (in)
4PB-DVV-015	DC Voltmeters – Zero Left	4.5	0-15	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-020	DC Voltmeters - Zero Left	4.5	0-20	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-025	DC Voltmeters - Zero Left	4.5	0-25	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-030	DC Voltmeters - Zero Left	4.5	0-30	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-040	DC Voltmeters - Zero Left	4.5	0-40	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-050	DC Voltmeters - Zero Left	4.5	0-50	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-075	DC Voltmeters - Zero Left	4.5	0-75	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-080	DC Voltmeters - Zero Left	4.5	0-80	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-100	DC Voltmeters - Zero Left	4.5	0-100	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-150	DC Voltmeters - Zero Left	4.5	0-150	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-200	DC Voltmeters - Zero Left	4.5	0-200	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-250	DC Voltmeters - Zero Left	4.5	0-250	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-300	DC Voltmeters - Zero Left	4.5	0-300	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-500	DC Voltmeters - Zero Left	4.5	0-500	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-600	DC Voltmeters - Zero Left	4.5	0-600	10 kohm/V	4.41 x 4.85 x 1.84
4PB-DVV-750	DC Voltmeters - Zero Left	4.5	0-750	10 kohm/V	4.41 x 4.85 x 1.84
4PB-DVV-1000	DC Voltmeters - Zero Left	4.5	0-1000	10 kohm/V	4.41 x 4.85 x 1.84
4PB-DVV-5U5	DC Voltmeters - Zero center	4.5	5-0-5	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-10U10	DC Voltmeters - Zero center	4.5	10-0-10	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-15U15	DC Voltmeters - Zero center	4.5	15-0-15	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-25U25	DC Voltmeters - Zero center	4.5	25-0-25	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-50U50	DC Voltmeters - Zero center	4.5	50-0-50	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-1H1	DC Voltmeters - Zero center	4.5	100-0-100	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-1.5H1.5	DC Voltmeters - Zero center	4.5	150-0-150	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-3H3	DC Voltmeters - Zero center	4.5	300-0-300	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-5H5	DC Voltmeters - Zero center	4.5	500-0-500	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-6H6	DC Voltmeters - Zero center	4.5	600-0-600	10 kohm/V	4.41 x 4.85 x 1.84
1PB-DMV-050	DC Millivoltmeters – Zero left	1.5	0-50	200 ohm/V	1.75 x 1.75 x 1.39
1PB-DMV-100	DC Millivoltmeters – Zero left	1.5	0-100	200 ohm/V	1.75 x 1.75 x 1.39
1PB-DMV-50U50	DC Millivoltmeters – Zero center	1.5	50-0-50	200 ohm/V	1.75 x 1.75 x 1.39
1PB-DMV-1H1	DC Millivoltmeters – Zero center	1.5	100-0-100	200 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-001	DC Voltmeters – Zero Left	1.5	0-1	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-0015	DC Voltmeters – Zero Left	1.5	0-1.5	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-002	DC Voltmeters – Zero Left	1.5	0-2	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-003	DC Voltmeters – Zero Left	1.5	0-3	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-005	DC Voltmeters – Zero Left	1.5	0-5	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-010	DC Voltmeters – Zero Left	1.5	0-10	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-015	DC Voltmeters – Zero Left	1.5	0-15	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-020	DC Voltmeters – Zero Left	1.5	0-20	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-025	DC Voltmeters – Zero Left	1.5	0-25	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-030	DC Voltmeters – Zero Left	1.5	0-30	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-040	DC Voltmeters – Zero Left	1.5	0-40	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-050	DC Voltmeters – Zero Left	1.5	0-50	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-075	DC Voltmeters – Zero Left	1.5	0-75	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-080	DC Voltmeters – Zero Left	1.5	0-80	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-100	DC Voltmeters – Zero Left	1.5	0-100	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-150	DC Voltmeters – Zero Left	1.5	0-150	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-200	DC Voltmeters – Zero Left	1.5	0-200	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-250	DC Voltmeters – Zero Left	1.5	0-250	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-300	DC Voltmeters – Zero Left	1.5	0-300	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-500	DC Voltmeters – Zero Left	1.5	0-500	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-600	DC Voltmeters – Zero Left	1.5	0-600	10 kohm/V	1.75 x 1.75 x 1.39
1PB-DVV-750	DC Voltmeters – Zero Left	1.5	0-750	10 kohm/V	1.75 x 1.75 x 1.39
1PB-DVV-1000	DC Voltmeters – Zero Left	1.5	0-1000	10 kohm/V	1.75 x 1.75 x 1.39
1PB-DVV-5U5	DC Voltmeters – Zero Left	1.5	5-0-5	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-10U10	DC Voltmeters – Zero Left	1.5	10-0-10	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-15U15	DC Voltmeters – Zero Left	1.5	15-0-15	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-25U25	DC Voltmeters – Zero Left	1.5	25-0-25	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-50U50	DC Voltmeters – Zero Left	1.5	50-0-50	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-1H1	DC Voltmeters – Zero Left	1.5	100-0-100	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-1.5H1.5	DC Voltmeters – Zero Left	1.5	150-0-150	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-3H3	DC Voltmeters – Zero Left	1.5	300-0-300	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-5H5	DC Voltmeters – Zero Left	1.5	500-0-500	1000 ohm/V	1.75 x 1.75 x 1.39
1PB-DVV-6H6	DC Voltmeters – Zero Left	1.5	600-0-600	10 kohm/V	1.75 x 1.75 x 1.39
1PB-DUA-050	DC Microammeters - Zero left	1.5	0-50	4000 ohm	1.75 x 1.75 x 1.39
1PB-DUA-100	DC Microammeters - Zero left	1.5	0-100	900 ohm	1.75 x 1.75 x 1.39
1PB-DUA-200	DC Microammeters - Zero left	1.5	0-200	306 ohm	1.75 x 1.75 x 1.39
1PB-DUA-500	DC Microammeters - Zero left	1.5	0-500	203 ohm	1.75 x 1.75 x 1.39
1PB-DUA-25U25	DC Microammeters - Zero center	1.5	25-0-25	4000 ohm	1.75 x 1.75 x 1.39
1PB-DUA-50U50	DC Microammeters - Zero center	1.5	50-0-50	900 ohm	1.75 x 1.75 x 1.39
1PB-DUA-1H1	DC Microammeters - Zero center	1.5	100-0-100	305 ohm	1.75 x 1.75 x 1.39
1PB-DUA-5H5	DC Microammeters - Zero center	1.5	500-0-500	41 ohm	1.75 x 1.75 x 1.39
1PB-DMA-001	DC Milliammeters - Zero left	1.5	0-1	43 ohm	1.75 x 1.75 x 1.39
1PB-DMA-002	DC Milliammeters - Zero left	1.5	0-2	16.7 ohm	1.75 x 1.75 x 1.39
1PB-DMA-003	DC Milliammeters - Zero left	1.5	0-3	8.3 ohm	1.75 x 1.75 x 1.39
1PB-DMA-005	DC Milliammeters - Zero left	1.5	0-5	3.8 ohm	1.75 x 1.75 x 1.39
1PB-DMA-010	DC Milliammeters - Zero left	1.5	0-10	2.2 ohm	1.75 x 1.75 x 1.39
1PB-DMA-015	DC Milliammeters - Zero left	1.5	0-15	3.3 ohm	1.75 x 1.75 x 1.39
1PB-DMA-020	DC Milliammeters - Zero left	1.5	0-20	2.5 ohm	1.75 x 1.75 x 1.39
1PB-DMA-025	DC Milliammeters - Zero left	1.5	0-25	2.0 ohm	1.75 x 1.75 x 1.39
1PB-DMA-030	DC Milliammeters - Zero left	1.5	0-30	1.7 ohm	1.75 x 1.75 x 1.39
1PB-DMA-050	DC Milliammeters - Zero left	1.5	0-50	1.0 ohm	1.75 x 1.75 x 1.39
1PB-DMA-100	DC Milliammeters - Zero left	1.5	0-100	.50 ohm	1.75 x 1.75 x 1.39
1PB-DMA-150	DC Milliammeters - Zero left	1.5	0-150	.33 ohm	1.75 x 1.75 x 1.39
1PB-DMA-200	DC Milliammeters - Zero left	1.5	0-200	.25 ohm	1.75 x 1.75 x 1.39
1PB-DMA-300	DC Milliammeters - Zero left	1.5	0-300	.166 ohm	1.75 x 1.75 x 1.39
1PB-DMA-500	DC Milliammeters - Zero left	1.5	0-500	.10 ohm	1.75 x 1.75 x 1.39
1PB-DMA-750	DC Milliammeters - Zero left	1.5	0-750	.066 ohm	1.75 x 1.75 x 1.39
1PB-DMA-1U1	DC Milliammeters - Zero center	1.5	1-0-1	35.0 ohm	1.75 x 1.75 x 1.39
1PB-DMA-5U5	DC Milliammeters - Zero center	1.5	5-0-5	3.4 ohm	1.75 x 1.75 x 1.39
1PB-DMA-10U10	DC Milliammeters - Zero center	1.5	10-0-10	1.8 ohm	1.75 x 1.75 x 1.39
1PB-DMA-25U25	DC Milliammeters - Zero center	1.5	25-0-25	2.0 ohm	1.75 x 1.75 x 1.39
1PB-DMA-50U50	DC Milliammeters - Zero center	1.5	50-0-50	1.0 ohm	1.75 x 1.75 x 1.39
1PB-DMA-1H1	DC Milliammeters - Zero center	1.5	100-0-100	.50 ohm	1.75 x 1.75 x 1.39
1PB-DMA-2H2	DC Milliammeters - Zero center	1.5	200-0-200	.25 ohm	1.75 x 1.75 x 1.39
1PB-DMA-5H5	DC Milliammeters - Zero center	1.5	500-0-500	.10 ohm	1.75 x 1.75 x 1.39
1PB-DAA-001	DC Ammeters - Zero left, self-contained	1.5	0-1	.050 ohm	1.75 x 1.75 x 1.39
1PB-DAA-0015	DC Ammeters - Zero left, self-contained	1.5	0-1.5	.033 ohm	1.75 x 1.75 x 1.39
1PB-DAA-002	DC Ammeters - Zero left, self-contained	1.5	0-2	.025 ohm	1.75 x 1.75 x 1.39
1PB-DAA-003	DC Ammeters - Zero left, self-contained	1.5	0-3	.0166 ohm	1.75 x 1.75 x 1.39
1PB-DAA-005	DC Ammeters - Zero left, self-contained	1.5	0-5	.010 ohm	1.75 x 1.75 x 1.39
1PB-DAA-010	DC Ammeters - Zero left, self-contained	1.5	0-10	.0050 ohm	1.75 x 1.75 x 1.39
1PB-DAA-1U1	DC Ammeters - Zero left, self-contained	1.5	1-0-1	.050 ohm	1.75 x 1.75 x 1.39
1PB-DAA-3U3	DC Ammeters - Zero left, self-contained	1.5	3-0-3	.016 ohm	1.75 x 1.75 x 1.39
1PB-DAA-5U5	DC Ammeters - Zero left, self-contained	1.5	5-0-5	.010 ohm	1.75 x 1.75 x 1.39
1PB-DAA-10U10	DC Ammeters - Zero center, self contained	1.5	10-0-10	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-075	DC Ammeters - Zero left, 50 mV shunt	1.5	0-75	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-100	DC Ammeters - Zero left, 50 mV shunt	1.5	0-100	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-150	DC Ammeters - Zero left, 50 mV shunt	1.5	0-150	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-200	DC Ammeters - Zero left, 50 mV shunt	1.5	0-200	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-300	DC Ammeters - Zero left, 50 mV shunt	1.5	0-300	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-500	DC Ammeters - Zero left, 50 mV shunt	1.5	0-500	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-750	DC Ammeters - Zero left, 50 mV shunt	1.5	0-750	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-1000	DC Ammeters - Zero left, 50 mV shunt	1.5	0-1000	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-1200	DC Ammeters - Zero left, 50 mV shunt	1.5	0-1200	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-1500	DC Ammeters - Zero left, 50 mV shunt	1.5	0-1500	.005 ohm	1.75 x 1.75 x 1.39
1PBS-DAA-2000	DC Ammeters - Zero left, 50 mV shunt	1.5	0-2000	.005 ohm	1.75 x 1.75 x 1.39
E 1PB-DAA-075	DC Ammeters - Zero left, 100 mV shunt	1.5	0-75	.005 ohm	1.75 x 1.75 x 1.39
E 1PB-DAA-100	DC Ammeters - Zero left, 100 mV shunt	1.5	0-100	.005 ohm	1.75 x 1.75 x 1.39
2PB-DMV-050	DC Millivoltmeters - Zero left	2.5	0-50	200 ohm/V	2.70 x 2.70 x 1.77
E 1PB-DAA-150	DC Ammeters - Zero left, 100 mV shunt	1.5	0-150	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-200	DC Ammeters - Zero left, 100 mV shunt	1.5	0-200	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-300	DC Ammeters - Zero left, 100 mV shunt	1.5	0-300	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-500	DC Ammeters - Zero left, 100 mV shunt	1.5	0-500	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-750	DC Ammeters - Zero left, 100 mV shunt	1.5	0-750	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-1000	DC Ammeters - Zero left, 100 mV shunt	1.5	0-1000	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-1200	DC Ammeters - Zero left, 100 mV shunt	1.5	0-1200	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-1500	DC Ammeters - Zero left, 100 mV shunt	1.5	0-1500	200 ohm/V	1.75 x 1.75 x 1.39
E 1PB-DAA-2000	DC Ammeters - Zero left, 100 mV shunt	1.5	0-2000	200 ohm/V	1.75 x 1.75 x 1.39
1PBS-DAA-75U75	DC Ammeters - Zero center, 50 mV shunt	1.5	75-0-75	200 ohm/V	1.75 x 1.75 x 1.39
1PBS-DAA-1H1	DC Ammeters - Zero center, 50 mV shunt	1.5	100-0-100	200 ohm/V	1.75 x 1.75 x 1.39
1PBS-DAA-2H2	DC Ammeters - Zero center, 50 mV shunt	1.5	200-0-200	200 ohm/V	1.75 x 1.75 x 1.39
1PBS-DAA-3H3	DC Ammeters - Zero center, 50 mV shunt	1.5	300-0-300	200 ohm/V	1.75 x 1.75 x 1.39
1PBS-DAA-4H4	DC Ammeters - Zero center, 50 mV shunt	1.5	400-0-400	200 ohm/V	1.75 x 1.75 x 1.39
1PBS-DAA-5H5	DC Ammeters - Zero center, 50 mV shunt	1.5	500-0-500	200 ohm/V	1.75 x 1.75 x 1.39
2PB-DMV-100	DC Millivoltmeters – Zero left	2.5	0-100	200 ohm/V	2.70 x 2.70 x 1.77
2PB-DMV-50U50	DC Millivoltmeters – Zero center	2.5	50-0-50	200 ohm/V	2.70 x 2.70 x 1.77
2PB-DMV-1H1	DC Millivoltmeters – Zero center	2.5	100-0-100	200 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-001	DC Voltmeters – Zero Left	2.5	0-1	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-0015	DC Voltmeters – Zero Left	2.5	0-1.5	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-002	DC Voltmeters – Zero Left	2.5	0-2	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-003	DC Voltmeters – Zero Left	2.5	0-3	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-005	DC Voltmeters – Zero Left	2.5	0-5	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-010	DC Voltmeters – Zero Left	2.5	0-10	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-015	DC Voltmeters – Zero Left	2.5	0-15	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-020	DC Voltmeters – Zero Left	2.5	0-20	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-025	DC Voltmeters – Zero Left	2.5	0-25	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-030	DC Voltmeters – Zero Left	2.5	0-30	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-040	DC Voltmeters – Zero Left	2.5	0-40	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-050	DC Voltmeters - Zero Left	2.5	0-50	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-075	DC Voltmeters – Zero Left	2.5	0-75	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-080	DC Voltmeters – Zero Left	2.5	0-80	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-100	DC Voltmeters – Zero Left	2.5	0-100	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-150	DC Voltmeters – Zero Left	2.5	0-150	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-200	DC Voltmeters – Zero Left	2.5	0-200	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-250	DC Voltmeters – Zero Left	2.5	0-250	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-300	DC Voltmeters – Zero Left	2.5	0-300	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-500	DC Voltmeters – Zero Left	2.5	0-500	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-600	DC Voltmeters – Zero Left	2.5	0-600	10 kohm/V	2.70 x 2.70 x 1.77
2PB-DVV-750	DC Voltmeters – Zero Left	2.5	0-750	10 kohm/V	2.70 x 2.70 x 1.77
2PB-DVV-1000	DC Voltmeters – Zero Left	2.5	0-1000	10 kohm/V	2.70 x 2.70 x 1.77
2PB-DVV-5U5	DC Voltmeters - Zero center	2.5	5-0-5	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-10U10	DC Voltmeters - Zero center	2.5	10-0-10	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-15U15	DC Voltmeters - Zero center	2.5	15-0-15	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-25U25	DC Voltmeters - Zero center	2.5	25-0-25	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-50U50	DC Voltmeters - Zero center	2.5	50-0-50	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-1H1	DC Voltmeters - Zero center	2.5	100-0-100	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-1.5H1.5	DC Voltmeters - Zero center	2.5	150-0-150	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-3H3	DC Voltmeters - Zero center	2.5	300-0-300	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-5H5	DC Voltmeters - Zero center	2.5	500-0-500	1000 ohm/V	2.70 x 2.70 x 1.77
2PB-DVV-6H6	DC Voltmeters - Zero center	2.5	600-0-600	10 kohm/V	2.70 x 2.70 x 1.77
2PB-DUA-050	DC Microammeters - Zero left	2.5	0-50	4000 ohm	2.70 x 2.70 x 1.77
2PB-DUA-100	DC Microammeters - Zero left	2.5	0-100	900 ohm	2.70 x 2.70 x 1.77
2PB-DUA-200	DC Microammeters - Zero left	2.5	0-200	306 ohm	2.70 x 2.70 x 1.77
2PB-DUA-500	DC Microammeters - Zero left	2.5	0-500	203 ohm	2.70 x 2.70 x 1.77
2PB-DUA-25U25	DC Microammeters - Zero center	2.5	25-0-25	4000 ohm	2.70 x 2.70 x 1.77
2PB-DUA-50U50	DC Microammeters - Zero center	2.5	50-0-50	900 ohm	2.70 x 2.70 x 1.77
2PB-DUA-1H1	DC Microammeters - Zero center	2.5	100-0-100	305 ohm	2.70 x 2.70 x 1.77
2PB-DUA-5H5	DC Microammeters - Zero center	2.5	500-0-500	41 ohm	2.70 x 2.70 x 1.77
2PB-DMA-001	DC Milliammeters - Zero left	2.5	0-1	43 ohm	2.70 x 2.70 x 1.77
2PB-DMA-002	DC Milliammeters - Zero left	2.5	0-2	16.7 ohm	2.70 x 2.70 x 1.77
2PB-DMA-003	DC Milliammeters - Zero left	2.5	0-3	8.3 ohm	2.70 x 2.70 x 1.77
2PB-DMA-005	DC Milliammeters - Zero left	2.5	0-5	3.8 ohm	2.70 x 2.70 x 1.77
2PB-DMA-010	DC Milliammeters - Zero left	2.5	0-10	2.2 ohm	2.70 x 2.70 x 1.77
2PB-DMA-015	DC Milliammeters - Zero left	2.5	0-15	3.3 ohm	2.70 x 2.70 x 1.77
2PB-DMA-020	DC Milliammeters - Zero left	2.5	0-20	2.5 ohm	2.70 x 2.70 x 1.77
2PB-DMA-025	DC Milliammeters - Zero left	2.5	0-25	2.0 ohm	2.70 x 2.70 x 1.77
2PB-DMA-030	DC Milliammeters - Zero left	2.5	0-30	1.7 ohm	2.70 x 2.70 x 1.77
2PB-DMA-050	DC Milliammeters - Zero left	2.5	0-50	1.0 ohm	2.70 x 2.70 x 1.77
2PB-DMA-100	DC Milliammeters - Zero left	2.5	0-100	.50 ohm	2.70 x 2.70 x 1.77
2PB-DMA-150	DC Milliammeters - Zero left	2.5	0-150	.33 ohm	2.70 x 2.70 x 1.77
2PB-DMA-200	DC Milliammeters - Zero left	2.5	0-200	.25 ohm	2.70 x 2.70 x 1.77
2PB-DMA-300	DC Milliammeters - Zero left	2.5	0-300	.166 ohm	2.70 x 2.70 x 1.77
2PB-DMA-500	DC Milliammeters - Zero left	2.5	0-500	.10 ohm	2.70 x 2.70 x 1.77
2PB-DMA-750	DC Milliammeters - Zero left	2.5	0-750	.066 ohm	2.70 x 2.70 x 1.77
2PB-DMA-1U1	DC Milliammeters - Zero center	2.5	1-0-1	35.0 ohm	2.70 x 2.70 x 1.77
2PB-DMA-5U5	DC Milliammeters - Zero center	2.5	5-0-5	3.4 ohm	2.70 x 2.70 x 1.77
2PB-DMA-10U10	DC Milliammeters - Zero center	2.5	10-0-10	1.8 ohm	2.70 x 2.70 x 1.77
2PB-DMA-25U25	DC Milliammeters - Zero center	2.5	25-0-25	2.0 ohm	2.70 x 2.70 x 1.77
2PB-DMA-50U50	DC Milliammeters - Zero center	2.5	50-0-50	1.0 ohm	2.70 x 2.70 x 1.77
2PB-DMA-1H1	DC Milliammeters - Zero center	2.5	100-0-100	.50 ohm	2.70 x 2.70 x 1.77
2PB-DMA-2H2	DC Milliammeters - Zero center	2.5	200-0-200	.25 ohm	2.70 x 2.70 x 1.77
2PB-DMA-5H5	DC Milliammeters - Zero center	2.5	500-0-500	.10 ohm	2.70 x 2.70 x 1.77
2PB-DAA-001	DC Ammeters - Zero left, self-contained	2.5	0-1	.050 ohm	2.70 x 2.70 x 1.77
2PB-DAA-0015	DC Ammeters - Zero left, self-contained	2.5	0-1.5	.033 ohm	2.70 x 2.70 x 1.77
2PB-DAA-002	DC Ammeters - Zero left, self-contained	2.5	0-2	.025 ohm	2.70 x 2.70 x 1.77
2PB-DAA-003	DC Ammeters - Zero left, self-contained	2.5	0-3	.0166 ohm	2.70 x 2.70 x 1.77
2PB-DAA-005	DC Ammeters - Zero left, self-contained	2.5	0-5	.010 ohm	2.70 x 2.70 x 1.77
2PB-DAA-010	DC Ammeters - Zero left, self-contained	2.5	0-10	.0050 ohm	2.70 x 2.70 x 1.77
2PB-DAA-015	DC Ammeters - Zero left, self-contained	2.5	0-15	.0033 ohm	2.70 x 2.70 x 1.77
2PB-DAA-020	DC Ammeters - Zero left, self-contained	2.5	0-20	.0025 ohm	2.70 x 2.70 x 1.77
2PB-DAA-025	DC Ammeters - Zero left, self-contained	2.5	0-25	.0020 ohm	2.70 x 2.70 x 1.77
2PB-DAA-030	DC Ammeters - Zero left, self-contained	2.5	0-30	.0015 ohm	2.70 x 2.70 x 1.77
2PB-DAA-050	DC Ammeters - Zero left, self-contained	2.5	0-50	.0010 ohm	2.70 x 2.70 x 1.77
2PB-DAA-1U1	DC Ammeters - Zero center, self contained	2.5	1-0-1	.050 ohm	2.70 x 2.70 x 1.77
2PB-DAA-3U3	DC Ammeters - Zero center, self contained	2.5	3-0-3	.016 ohm	2.70 x 2.70 x 1.77
2PB-DAA-5U5	DC Ammeters - Zero center, self contained	2.5	5-0-5	.010 ohm	2.70 x 2.70 x 1.77
2PB-DAA-10U10	DC Ammeters - Zero center, self contained	2.5	10-0-10	.005 ohm	2.70 x 2.70 x 1.77
2PB-DAA-15U15	DC Ammeters - Zero center, self contained	2.5	15-0-15	.003 ohm	2.70 x 2.70 x 1.77
2PB-DAA-25U25	DC Ammeters - Zero center, self contained	2.5	25-0-25	.002 ohm	2.70 x 2.70 x 1.77
2PB-DAA-50U50	DC Ammeters - Zero center, self contained	2.5	50-0-50	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-075	DC Ammeters - Zero left, 50 mV shunt	2.5	0-75	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-100	DC Ammeters - Zero left, 50 mV shunt	2.5	0-100	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-150	DC Ammeters - Zero left, 50 mV shunt	2.5	0-150	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-200	DC Ammeters - Zero left, 50 mV shunt	2.5	0-200	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-300	DC Ammeters - Zero left, 50 mV shunt	2.5	0-300	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-500	DC Ammeters - Zero left, 50 mV shunt	2.5	0-500	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-750	DC Ammeters - Zero left, 50 mV shunt	2.5	0-750	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-1000	DC Ammeters - Zero left, 50 mV shunt	2.5	0-1000	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-1200	DC Ammeters - Zero left, 50 mV shunt	2.5	0-1200	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-1500	DC Ammeters - Zero left, 50 mV shunt	2.5	0-1500	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-2000	DC Ammeters - Zero left, 50 mV shunt	2.5	0-2000	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-075	DC Ammeters - Zero left, 100 mV shunt	2.5	0-75	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-100	DC Ammeters - Zero left, 100 mV shunt	2.5	0-100	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-150	DC Ammeters - Zero left, 100 mV shunt	2.5	0-150	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-200	DC Ammeters - Zero left, 100 mV shunt	2.5	0-200	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-300	DC Ammeters - Zero left, 100 mV shunt	2.5	0-300	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-500	DC Ammeters - Zero left, 100 mV shunt	2.5	0-500	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-750	DC Ammeters - Zero left, 100 mV shunt	2.5	0-750	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-1000	DC Ammeters - Zero left, 100 mV shunt	2.5	0-1000	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-1200	DC Ammeters - Zero left, 100 mV shunt	2.5	0-1200	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-1500	DC Ammeters - Zero left, 100 mV shunt	2.5	0-1500	.001 ohm	2.70 x 2.70 x 1.77
E 2PB-DAA-2000	DC Ammeters - Zero left, 100 mV shunt	2.5	0-2000	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-75U75	DC Ammeters - Zero center, 50 mV shunt	2.5	75-0-75	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-1H1	DC Ammeters - Zero center, 50 mV shunt	2.5	100-0-100	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-2H2	DC Ammeters - Zero center, 50 mV shunt	2.5	200-0-200	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-3H3	DC Ammeters - Zero center, 50 mV shunt	2.5	300-0-300	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-4H4	DC Ammeters - Zero center, 50 mV shunt	2.5	400-0-400	.001 ohm	2.70 x 2.70 x 1.77
2PBS-DAA-5H5	DC Ammeters - Zero center, 50 mV shunt	2.5	500-0-500	.001 ohm	2.70 x 2.70 x 1.77
3PB-DMV-050	DC Millivoltmeters – Zero left	3.5	0-50	200 ohm/V	3.50 x 3.50 x 1.77
3PB-DMV-100	DC Millivoltmeters – Zero left	3.5	0-100	200 ohm/V	3.50 x 3.50 x 1.77
3PB-DMV-50U50	DC Millivoltmeters – Zero center	3.5	50-0-50	200 ohm/V	3.50 x 3.50 x 1.77
3PB-DMV-1H1	DC Millivoltmeters – Zero center	3.5	100-0-100	200 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-001	DC Voltmeters - Zero Left	3.5	0-1	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-0015	DC Voltmeters - Zero Left	3.5	0-1.5	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-002	DC Voltmeters – Zero Left	3.5	0-2	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-003	DC Voltmeters – Zero Left	3.5	0-3	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-005	DC Voltmeters – Zero Left	3.5	0-5	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-010	DC Voltmeters – Zero Left	3.5	0-10	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-015	DC Voltmeters – Zero Left	3.5	0-15	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-020	DC Voltmeters – Zero Left	3.5	0-20	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-025	DC Voltmeters – Zero Left	3.5	0-25	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-030	DC Voltmeters – Zero Left	3.5	0-30	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-040	DC Voltmeters – Zero Left	3.5	0-40	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-050	DC Voltmeters – Zero Left	3.5	0-50	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-075	DC Voltmeters – Zero Left	3.5	0-75	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-080	DC Voltmeters – Zero Left	3.5	0-80	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-100	DC Voltmeters – Zero Left	3.5	0-100	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-150	DC Voltmeters – Zero Left	3.5	0-150	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-200	DC Voltmeters – Zero Left	3.5	0-200	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-250	DC Voltmeters – Zero Left	3.5	0-250	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-300	DC Voltmeters – Zero Left	3.5	0-300	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-500	DC Voltmeters – Zero Left	3.5	0-500	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-600	DC Voltmeters – Zero Left	3.5	0-600	10 kohm/V	3.50 x 3.50 x 1.77
3PB-DVV-750	DC Voltmeters – Zero Left	3.5	0-750	10 kohm/V	3.50 x 3.50 x 1.77
3PB-DVV-1000	DC Voltmeters – Zero Left	3.5	0-1000	10 kohm/V	3.50 x 3.50 x 1.77
3PB-DVV-5U5	DC Voltmeters - Zero center	3.5	5-0-5	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-10U10	DC Voltmeters - Zero center	3.5	10-0-10	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-15U15	DC Voltmeters - Zero center	3.5	15-0-15	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-25U25	DC Voltmeters - Zero center	3.5	25-0-25	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-50U50	DC Voltmeters - Zero center	3.5	50-0-50	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-1H1	DC Voltmeters - Zero center	3.5	100-0-100	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-1.5H1.5	DC Voltmeters - Zero center	3.5	150-0-150	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-3H3	DC Voltmeters - Zero center	3.5	300-0-300	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-5H5	DC Voltmeters - Zero center	3.5	500-0-500	1000 ohm/V	3.50 x 3.50 x 1.77
3PB-DVV-6H6	DC Voltmeters - Zero center	3.5	600-0-600	10 kohm/V	3.50 x 3.50 x 1.77
3PB-DUA-050	DC Microammeters - Zero left	3.5	0-50	4000 ohm	3.50 x 3.50 x 1.77
3PB-DUA-100	DC Microammeters - Zero left	3.5	0-100	900 ohm	3.50 x 3.50 x 1.77
3PB-DUA-200	DC Microammeters - Zero left	3.5	0-200	306 ohm	3.50 x 3.50 x 1.77
3PB-DUA-500	DC Microammeters - Zero left	3.5	0-500	203 ohm	3.50 x 3.50 x 1.77
3PB-DUA-25U25	DC Microammeters - Zero center	3.5	25-0-25	4000 ohm	3.50 x 3.50 x 1.77
3PB-DUA-50U50	DC Microammeters - Zero center	3.5	50-0-50	900 ohm	3.50 x 3.50 x 1.77
3PB-DUA-1H1	DC Microammeters - Zero center	3.5	100-0-100	305 ohm	3.50 x 3.50 x 1.77
3PB-DUA-5H5	DC Microammeters - Zero center	3.5	500-0-500	41 ohm	3.50 x 3.50 x 1.77
3PB-DMA-001	DC Milliammeters - Zero left	3.5	0-1	43 ohm	3.50 x 3.50 x 1.77
3PB-DMA-002	DC Milliammeters - Zero left	3.5	0-2	16.7 ohm	3.50 x 3.50 x 1.77
3PB-DMA-003	DC Milliammeters - Zero left	3.5	0-3	8.3 ohm	3.50 x 3.50 x 1.77
3PB-DMA-005	DC Milliammeters - Zero left	3.5	0-5	3.8 ohm	3.50 x 3.50 x 1.77
3PB-DMA-010	DC Milliammeters - Zero left	3.5	0-10	2.2 ohm	3.50 x 3.50 x 1.77
3PB-DMA-015	DC Milliammeters - Zero left	3.5	0-15	3.3 ohm	3.50 x 3.50 x 1.77
3PB-DMA-020	DC Milliammeters - Zero left	3.5	0-20	2.5 ohm	3.50 x 3.50 x 1.77
3PB-DMA-025	DC Milliammeters - Zero left	3.5	0-25	2.0 ohm	3.50 x 3.50 x 1.77
3PB-DMA-030	DC Milliammeters - Zero left	3.5	0-30	1.7 ohm	3.50 x 3.50 x 1.77
3PB-DMA-050	DC Milliammeters - Zero left	3.5	0-50	1.0 ohm	3.50 x 3.50 x 1.77
3PB-DMA-100	DC Milliammeters - Zero left	3.5	0-100	.50 ohm	3.50 x 3.50 x 1.77
3PB-DMA-150	DC Milliammeters - Zero left	3.5	0-150	.33 ohm	3.50 x 3.50 x 1.77
3PB-DMA-200	DC Milliammeters - Zero left	3.5	0-200	.25 ohm	3.50 x 3.50 x 1.77
3PB-DMA-300	DC Milliammeters - Zero left	3.5	0-300	.166 ohm	3.50 x 3.50 x 1.77
3PB-DMA-500	DC Milliammeters - Zero left	3.5	0-500	.10 ohm	3.50 x 3.50 x 1.77
3PB-DMA-750	DC Milliammeters - Zero left	3.5	0-750	.066 ohm	3.50 x 3.50 x 1.77
3PB-DMA-1U1	DC Milliammeters - Zero center	3.5	1-0-1	35.0 ohm	3.50 x 3.50 x 1.77
3PB-DMA-5U5	DC Milliammeters - Zero center	3.5	5-0-5	3.4 ohm	3.50 x 3.50 x 1.77
3PB-DMA-10U10	DC Milliammeters - Zero center	3.5	10-0-10	1.8 ohm	3.50 x 3.50 x 1.77
3PB-DMA-25U25	DC Milliammeters - Zero center	3.5	25-0-25	2.0 ohm	3.50 x 3.50 x 1.77
3PB-DMA-50U50	DC Milliammeters - Zero center	3.5	50-0-50	1.0 ohm	3.50 x 3.50 x 1.77
3PB-DMA-1H1	DC Milliammeters - Zero center	3.5	100-0-100	.50 ohm	3.50 x 3.50 x 1.77
3PB-DMA-2H2	DC Milliammeters - Zero center	3.5	200-0-200	.25 ohm	3.50 x 3.50 x 1.77
3PB-DMA-5H5	DC Milliammeters - Zero center	3.5	500-0-500	.10 ohm	3.50 x 3.50 x 1.77
3PB-DAA-001	DC Ammeters - Zero left, self-contained	3.5	0-1	.050 ohm	3.50 x 3.50 x 1.77
3PB-DAA-0015	DC Ammeters - Zero left, self-contained	3.5	0-1.5	.033 ohm	3.50 x 3.50 x 1.77
3PB-DAA-002	DC Ammeters - Zero left, self-contained	3.5	0-2	.025 ohm	3.50 x 3.50 x 1.77
3PB-DAA-003	DC Ammeters - Zero left, self-contained	3.5	0-3	.0166 ohm	3.50 x 3.50 x 1.77
3PB-DAA-005	DC Ammeters - Zero left, self-contained	3.5	0-5	.010 ohm	3.50 x 3.50 x 1.77
3PB-DAA-010	DC Ammeters - Zero left, self-contained	3.5	0-10	.0050 ohm	3.50 x 3.50 x 1.77
3PB-DAA-015	DC Ammeters - Zero left, self-contained	3.5	0-15	.0033 ohm	3.50 x 3.50 x 1.77
3PB-DAA-020	DC Ammeters - Zero left, self-contained	3.5	0-20	.0025 ohm	3.50 x 3.50 x 1.77
3PB-DAA-025	DC Ammeters - Zero left, self-contained	3.5	0-25	.0020 ohm	3.50 x 3.50 x 1.77
3PB-DAA-030	DC Ammeters - Zero left, self-contained	3.5	0-30	.0015 ohm	3.50 x 3.50 x 1.77
3PB-DAA-050	DC Ammeters - Zero left, self-contained	3.5	0-50	.0010 ohm	3.50 x 3.50 x 1.77
3PB-DAA-1U1	DC Ammeters - Zero center, self contained	3.5	1-0-1	.050 ohm	3.50 x 3.50 x 1.77
3PB-DAA-3U3	DC Ammeters - Zero center, self contained	3.5	3-0-3	.016 ohm	3.50 x 3.50 x 1.77
3PB-DAA-5U5	DC Ammeters - Zero center, self contained	3.5	5-0-5	.010 ohm	3.50 x 3.50 x 1.77
3PB-DAA-10U10	DC Ammeters - Zero center, self contained	3.5	10-0-10	.005 ohm	3.50 x 3.50 x 1.77
3PB-DAA-15U15	DC Ammeters - Zero center, self contained	3.5	15-0-15	.003 ohm	3.50 x 3.50 x 1.77
3PB-DAA-25U25	DC Ammeters - Zero center, self contained	3.5	25-0-25	.002 ohm	3.50 x 3.50 x 1.77
3PB-DAA-50U50	DC Ammeters - Zero center, self contained	3.5	50-0-50	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-075	DC Ammeters - Zero left, 50 mV shunt	3.5	0-75	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-100	DC Ammeters - Zero left, 50 mV shunt	3.5	0-100	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-150	DC Ammeters - Zero left, 50 mV shunt	3.5	0-150	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-200	DC Ammeters - Zero left, 50 mV shunt	3.5	0-200	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-300	DC Ammeters - Zero left, 50 mV shunt	3.5	0-300	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-500	DC Ammeters - Zero left, 50 mV shunt	3.5	0-500	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-750	DC Ammeters - Zero left, 50 mV shunt	3.5	0-750	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-1000	DC Ammeters - Zero left, 50 mV shunt	3.5	0-1000	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-1200	DC Ammeters - Zero left, 50 mV shunt	3.5	0-1200	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-1500	DC Ammeters - Zero left, 50 mV shunt	3.5	0-1500	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-2000	DC Ammeters - Zero left, 50 mV shunt	3.5	0-2000	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-075	DC Ammeters - Zero left, 100 mV shunt	3.5	0-75	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-100	DC Ammeters - Zero left, 100 mV shunt	3.5	0-100	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-150	DC Ammeters - Zero left, 100 mV shunt	3.5	0-150	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-200	DC Ammeters - Zero left, 100 mV shunt	3.5	0-200	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-300	DC Ammeters - Zero left, 100 mV shunt	3.5	0-300	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-500	DC Ammeters - Zero left, 100 mV shunt	3.5	0-500	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-750	DC Ammeters - Zero left, 100 mV shunt	3.5	0-750	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-1000	DC Ammeters - Zero left, 100 mV shunt	3.5	0-1000	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-1200	DC Ammeters - Zero left, 100 mV shunt	3.5	0-1200	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-1500	DC Ammeters - Zero left, 100 mV shunt	3.5	0-1500	.001 ohm	3.50 x 3.50 x 1.77
E 3PB-DAA-2000	DC Ammeters - Zero left, 100 mV shunt	3.5	0-2000	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-75U75	DC Ammeters - Zero center, 50 mV shunt	3.5	75-0-75	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-1H1	DC Ammeters - Zero center, 50 mV shunt	3.5	100-0-100	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-2H2	DC Ammeters - Zero center, 50 mV shunt	3.5	200-0-200	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-3H3	DC Ammeters - Zero center, 50 mV shunt	3.5	300-0-300	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-4H4	DC Ammeters - Zero center, 50 mV shunt	3.5	400-0-400	.001 ohm	3.50 x 3.50 x 1.77
3PBS-DAA-5H5	DC Ammeters - Zero center, 50 mV shunt	3.5	500-0-500	.001 ohm	3.50 x 3.50 x 1.77
4PB-DMV-050	DC Millivoltmeters - Zero left	4.5	0-50	200 ohm/V	4.41 x 4.85 x 1.84
4PB-DMV-100	DC Millivoltmeters - Zero left	4.5	0-100	200 ohm/V	4.41 x 4.85 x 1.84
4PB-DMV-50U50	DC Millivoltmeters - Zero center	4.5	50-0-50	200 ohm/V	4.41 x 4.85 x 1.84
4PB-DMV-1H1	DC Millivoltmeters - Zero center	4.5	100-0-100	200 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-001	DC Voltmeters – Zero Left	4.5	0-1	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-0015	DC Voltmeters – Zero Left	4.5	0-1.5	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-002	DC Voltmeters – Zero Left	4.5	0-2	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-003	DC Voltmeters – Zero Left	4.5	0-3	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-005	DC Voltmeters – Zero Left	4.5	0-5	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DVV-010	DC Voltmeters – Zero Left	4.5	0-10	1000 ohm/V	4.41 x 4.85 x 1.84
4PB-DUA-050	DC Microammeters - Zero left	4.5	0-50	4000 ohm	4.41 x 4.85 x 1.84
4PB-DUA-100	DC Microammeters - Zero left	4.5	0-100	900 ohm	4.41 x 4.85 x 1.84
4PB-DUA-200	DC Microammeters - Zero left	4.5	0-200	306 ohm	4.41 x 4.85 x 1.84
4PB-DUA-500	DC Microammeters - Zero left	4.5	0-500	203 ohm	4.41 x 4.85 x 1.84
4PB-DUA-25U25	DC Microammeters - Zero center	4.5	25-0-25	4000 ohm	4.41 x 4.85 x 1.84
4PB-DUA-50U50	DC Microammeters - Zero center	4.5	50-0-50	900 ohm	4.41 x 4.85 x 1.84
4PB-DUA-1H1	DC Microammeters - Zero center	4.5	100-0-100	305 ohm	4.41 x 4.85 x 1.84
4PB-DUA-5H5	DC Microammeters - Zero center	4.5	500-0-500	41 ohm	4.41 x 4.85 x 1.84
4PB-DMA-001	DC Milliammeters - Zero left	4.5	0-1	43 ohm	4.41 x 4.85 x 1.84
4PB-DMA-002	DC Milliammeters - Zero left	4.5	0-2	16.7 ohm	4.41 x 4.85 x 1.84
4PB-DMA-003	DC Milliammeters - Zero left	4.5	0-3	8.3 ohm	4.41 x 4.85 x 1.84
4PB-DMA-005	DC Milliammeters - Zero left	4.5	0-5	3.8 ohm	4.41 x 4.85 x 1.84
4PB-DMA-010	DC Milliammeters - Zero left	4.5	0-10	2.2 ohm	4.41 x 4.85 x 1.84
4PB-DMA-015	DC Milliammeters - Zero left	4.5	0-15	3.3 ohm	4.41 x 4.85 x 1.84
4PB-DMA-020	DC Milliammeters - Zero left	4.5	0-20	2.5 ohm	4.41 x 4.85 x 1.84
4PB-DMA-025	DC Milliammeters - Zero left	4.5	0-25	2.0 ohm	4.41 x 4.85 x 1.84
4PB-DMA-030	DC Milliammeters - Zero left	4.5	0-30	1.7 ohm	4.41 x 4.85 x 1.84
4PB-DMA-050	DC Milliammeters - Zero left	4.5	0-50	1.0 ohm	4.41 x 4.85 x 1.84
4PB-DMA-100	DC Milliammeters - Zero left	4.5	0-100	.50 ohm	4.41 x 4.85 x 1.84
4PB-DMA-150	DC Milliammeters - Zero left	4.5	0-150	.33 ohm	4.41 x 4.85 x 1.84
4PB-DMA-200	DC Milliammeters - Zero left	4.5	0-200	.25 ohm	4.41 x 4.85 x 1.84
4PB-DMA-300	DC Milliammeters - Zero left	4.5	0-300	.166 ohm	4.41 x 4.85 x 1.84
4PB-DMA-500	DC Milliammeters - Zero left	4.5	0-500	.10 ohm	4.41 x 4.85 x 1.84
4PB-DMA-750	DC Milliammeters - Zero left	4.5	0-750	.066 ohm	4.41 x 4.85 x 1.84
4PB-DMA-1U1	DC Milliammeters - Zero center	4.5	1-0-1	35.0 ohm	4.41 x 4.85 x 1.84
4PB-DMA-5U5	DC Milliammeters - Zero center	4.5	5-0-5	3.4 ohm	4.41 x 4.85 x 1.84
4PB-DMA-10U10	DC Milliammeters - Zero center	4.5	10-0-10	1.8 ohm	4.41 x 4.85 x 1.84
4PB-DMA-25U25	DC Milliammeters - Zero center	4.5	25-0-25	2.0 ohm	4.41 x 4.85 x 1.84
4PB-DMA-50U50	DC Milliammeters - Zero center	4.5	50-0-50	1.0 ohm	4.41 x 4.85 x 1.84
4PB-DMA-1H1	DC Milliammeters - Zero center	4.5	100-0-100	.50 ohm	4.41 x 4.85 x 1.84
4PB-DMA-2H2	DC Milliammeters - Zero center	4.5	200-0-200	.25 ohm	4.41 x 4.85 x 1.84
4PB-DMA-5H5	DC Milliammeters - Zero center	4.5	500-0-500	.10 ohm	4.41 x 4.85 x 1.84
4PB-DAA-001	DC Ammeters - Zero left, self-contained	4.5	0-1	.050 ohm	4.41 x 4.85 x 1.84
4PB-DAA-0015	DC Ammeters - Zero left, self-contained	4.5	0-1.5	.033 ohm	4.41 x 4.85 x 1.84
4PB-DAA-002	DC Ammeters - Zero left, self-contained	4.5	0-2	.025 ohm	4.41 x 4.85 x 1.84
4PB-DAA-003	DC Ammeters - Zero left, self-contained	4.5	0-3	.0166 ohm	4.41 x 4.85 x 1.84
4PB-DAA-005	DC Ammeters - Zero left, self-contained	4.5	0-5	.010 ohm	4.41 x 4.85 x 1.84
4PB-DAA-010	DC Ammeters - Zero left, self-contained	4.5	0-10	.0050 ohm	4.41 x 4.85 x 1.84
4PB-DAA-015	DC Ammeters - Zero left, self-contained	4.5	0-15	.0033 ohm	4.41 x 4.85 x 1.84
4PB-DAA-020	DC Ammeters - Zero left, self-contained	4.5	0-20	.0025 ohm	4.41 x 4.85 x 1.84
4PB-DAA-025	DC Ammeters - Zero left, self-contained	4.5	0-25	.0020 ohm	4.41 x 4.85 x 1.84
4PB-DAA-030	DC Ammeters - Zero left, self-contained	4.5	0-30	.0015 ohm	4.41 x 4.85 x 1.84
4PB-DAA-050	DC Ammeters - Zero left, self-contained	4.5	0-50	.0010 ohm	4.41 x 4.85 x 1.84
4PB-DAA-1U1	DC Ammeters - Zero center, self contained	4.5	1-0-1	.050 ohm	4.41 x 4.85 x 1.84
4PB-DAA-3U3	DC Ammeters - Zero center, self contained	4.5	3-0-3	.016 ohm	4.41 x 4.85 x 1.84
4PB-DAA-5U5	DC Ammeters - Zero center, self contained	4.5	5-0-5	.010 ohm	4.41 x 4.85 x 1.84
4PB-DAA-10U10	DC Ammeters - Zero center, self contained	4.5	10-0-10	.005 ohm	4.41 x 4.85 x 1.84
4PB-DAA-15U15	DC Ammeters - Zero center, self contained	4.5	15-0-15	.003 ohm	4.41 x 4.85 x 1.84
4PB-DAA-25U25	DC Ammeters - Zero center, self contained	4.5	25-0-25	.002 ohm	4.41 x 4.85 x 1.84
4PB-DAA-50U50	DC Ammeters - Zero center, self contained	4.5	50-0-50	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-075	DC Ammeters - Zero left, 50 mV shunt	4.5	0-75	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-100	DC Ammeters - Zero left, 50 mV shunt	4.5	0-100	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-150	DC Ammeters - Zero left, 50 mV shunt	4.5	0-150	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-200	DC Ammeters - Zero left, 50 mV shunt	4.5	0-200	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-300	DC Ammeters - Zero left, 50 mV shunt	4.5	0-300	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-500	DC Ammeters - Zero left, 50 mV shunt	4.5	0-500	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-750	DC Ammeters - Zero left, 50 mV shunt	4.5	0-750	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-1000	DC Ammeters - Zero left, 50 mV shunt	4.5	0-1000	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-1200	DC Ammeters - Zero left, 50 mV shunt	4.5	0-1200	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-1500	DC Ammeters - Zero left, 50 mV shunt	4.5	0-1500	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-2000	DC Ammeters - Zero left, 50 mV shunt	4.5	0-2000	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-075	DC Ammeters - Zero left, 100 mV shunt	4.5	0-75	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-100	DC Ammeters - Zero left, 100 mV shunt	4.5	0-100	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-150	DC Ammeters - Zero left, 100 mV shunt	4.5	0-150	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-200	DC Ammeters - Zero left, 100 mV shunt	4.5	0-200	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-300	DC Ammeters - Zero left, 100 mV shunt	4.5	0-300	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-500	DC Ammeters - Zero left, 100 mV shunt	4.5	0-500	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-750	DC Ammeters - Zero left, 100 mV shunt	4.5	0-750	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-1000	DC Ammeters - Zero left, 100 mV shunt	4.5	0-1000	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-1200	DC Ammeters - Zero left, 100 mV shunt	4.5	0-1200	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-1500	DC Ammeters - Zero left, 100 mV shunt	4.5	0-1500	.001 ohm	4.41 x 4.85 x 1.84
E 4PB-DAA-2000	DC Ammeters - Zero left, 100 mV shunt	4.5	0-2000	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-75U75	DC Ammeters - Zero center, 50 mV shunt	4.5	75-0-75	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-1H1	DC Ammeters - Zero center, 50 mV shunt	4.5	100-0-100	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-2H2	DC Ammeters - Zero center, 50 mV shunt	4.5	200-0-200	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-3H3	DC Ammeters - Zero center, 50 mV shunt	4.5	300-0-300	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-4H4	DC Ammeters - Zero center, 50 mV shunt	4.5	400-0-400	.001 ohm	4.41 x 4.85 x 1.84
4PBS-DAA-5H5	DC Ammeters - Zero center, 50 mV shunt	4.5	500-0-500	.001 ohm	4.41 x 4.85 x 1.84
