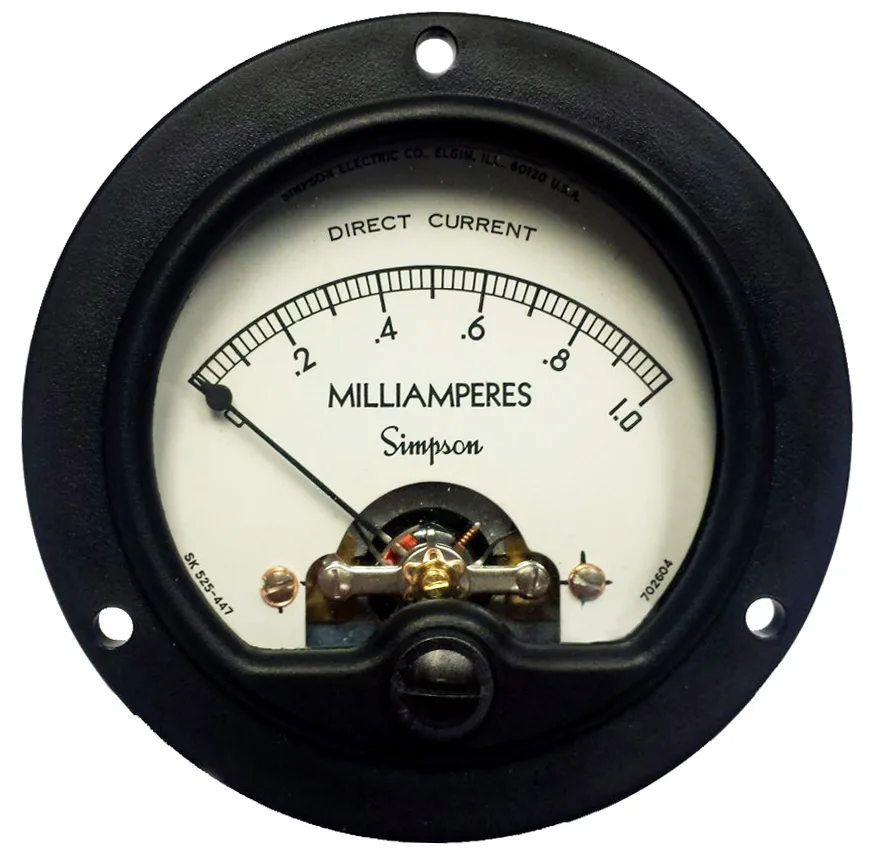

圆形模拟面板表直流电压/电流 – 125 与 25 – Simpson

Name: Simpson 圆形 模拟面板表 直流 电压/电流 – 125 与 25 – Simpson
Brand: Weschler
SKU: Simpson

Weschler美国

型号：Simpson

两不同尺寸规格, 2½” 和 3½”, 是提供此广受欢迎式样. 圆形仪表是制成的坚固高-density 黑色塑料外壳带玻璃 Windows 和是 UL 认证. 全部直流版本具有自-shielding 表芯 (校准为不 affected 通过 stray 磁性现场或磁性安装). 致电用于尺寸规格和量程不 shown.

立即询价加入询价车

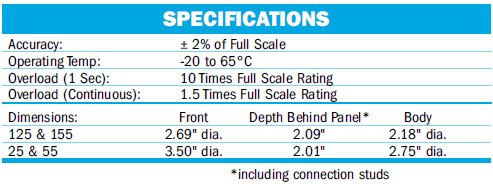

概要特点规格相关下载解决方案

产品目录页 058b Simpson-圆形_数据表

UL 认证

2½” 和 3½” 尺寸规格

黑色塑料外壳带玻璃视窗

精准插片指针

定制刻度与量程可选

Item #	Model	Type	Range	Scale	P/N
04610	25 - 3-1/2	DC Milliammeters	0-1	0-1	4610
00005	25 - 3-1/2	DC Ammeters	0-1	0-1	5
05580	125 - 2-1/2	DC Milliammeters	0-1	0-1	5580
01460	125 - 2-1/2	DC Ammeters	0-1	0-1	1460
08850	125 - 2-1/2	DC Voltmeters	0-1.5	0-1.5	8850
04620	25 - 3-1/2	DC Milliammeters	0-1.5	0-1.5	4620
04650	25 - 3-1/2	DC Milliammeters	0-10	0-10	4650
00060	25 - 3-1/2	DC Ammeters	0-10	0-10	60
08890	125 - 2-1/2	DC Voltmeters	0-10	0-10	8890
05620	125 - 2-1/2	DC Milliammeters	0-10	0-10	5620
01510	125 - 2-1/2	DC Ammeters	0-10	0-10	1510
07100	25 - 3-1/2	DC Voltmeters	0-10	0-10	7100
04710	25 - 3-1/2	DC Milliammeters	0-100	0-100	4710
03770	25 - 3-1/2	DC Microammeters	0-100	0-100	3770
07150	25 - 3-1/2	DC Voltmeters	0-100	0-200	7150
05680	125 - 2-1/2	DC Milliammeters	0-100	0-100	5680
04220	125 - 2-1/2	DC Microammeters	0-100	0-100	4220
08940	125 - 2-1/2	DC Voltmeters	0-100	0-200	8940
35093	25 - 3-1/2	DC Millivoltmeters	0-100	0-100	35093
07220	25 - 3-1/2	DC Voltmeters	0-1000	0-1000	7220
04780	25 - 3-1/2	DC Milliammeters	0-1000	0-1000	4780
04660	25 - 3-1/2	DC Milliammeters	0-15	0-15	4660
00070	25 - 3-1/2	DC Ammeters	0-15	0-15	70
05630	125 - 2-1/2	DC Milliammeters	0-15	0-15	5630
08900	125 - 2-1/2	DC Voltmeters	0-15	0-30	8900
07110	25 - 3-1/2	DC Voltmeters	0-15	0-30	7110
01520	125 - 2-1/2	DC Ammeters	0-15	0-15	1520
04720	25 - 3-1/2	DC Milliammeters	0-150	0-150	4720
08950	125 - 2-1/2	DC Voltmeters	0-150	0-250	8950
07160	25 - 3-1/2	DC Voltmeters	0-150	0-250	7160
05690	125 - 2-1/2	DC Milliammeters	0-150	0-150	5690
00030	25 - 3-1/2	DC Ammeters	0-2	0-2	30
07170	25 - 3-1/2	DC Voltmeters	0-200	0-300	7170
03780	25 - 3-1/2	DC Microammeters	0-200	0-200	3780
04730	25 - 3-1/2	DC Milliammeters	0-200	0-200	4730
04230	125 - 2-1/2	DC Microammeters	0-200	0-200	4230
08960	125 - 2-1/2	DC Voltmeters	0-200	0-300	8960
05700	125 - 2-1/2	DC Milliammeters	0-200	0-200	5700
07240	25 - 3-1/2	DC Voltmeters	0-2000	0-2000	7240
04680	25 - 3-1/2	DC Milliammeters	0-25	0-25	4680
00080	25 - 3-1/2	DC Ammeters	0-25	0-25	80
05650	125 - 2-1/2	DC Milliammeters	0-25	0-25	5650
08910	125 - 2-1/2	DC Voltmeters	0-25	0-50	8910
07120	25 - 3-1/2	DC Voltmeters	0-25	0-50	7120
01530	125 - 2-1/2	DC Ammeters	0-25	0-25	1530
07180	25 - 3-1/2	DC Voltmeters	0-250	0-300	7180
08970	125 - 2-1/2	DC Voltmeters	0-250	0-300	8970
05710	125 - 2-1/2	DC Milliammeters	0-250	0-250	5710
00040	25 - 3-1/2	DC Ammeters	0-3	0-3	40
07070	25 - 3-1/2	DC Voltmeters	0-3	0-3	7070
01490	125 - 2-1/2	DC Ammeters	0-3	0-3	1490
00090	25 - 3-1/2	DC Ammeters	0-30	0-30	90
08920	125 - 2-1/2	DC Voltmeters	0-30	0-100	8920
07130	25 - 3-1/2	DC Voltmeters	0-30	0-100	7130
01540	125 - 2-1/2	DC Ammeters	0-30	0-30	1540
07190	25 - 3-1/2	DC Voltmeters	0-300	0-300	7190
04750	25 - 3-1/2	DC Milliammeters	0-300	0-300	4750
07260	25 - 3-1/2	DC Voltmeters	0-3000	0-3000	7260
00050	25 - 3-1/2	DC Ammeters	0-5	0-5	50
04640	25 - 3-1/2	DC Milliammeters	0-5	0-5	4640
05610	125 - 2-1/2	DC Milliammeters	0-5	0-5	5610
08870	125 - 2-1/2	DC Voltmeters	0-5	0-5	8870
07080	25 - 3-1/2	DC Voltmeters	0-5	0-5	7080
01500	125 - 2-1/2	DC Ammeters	0-5	0-5	1500
03760	25 - 3-1/2	DC Microammeters	0-50	0-50	3760
07140	25 - 3-1/2	DC Voltmeters	0-50	0-150	7140
00099	25 - 3-1/2	DC Ammeters	0-50	0-50	99
08930	125 - 2-1/2	DC Voltmeters	0-50	0-150	8930
04690	25 - 3-1/2	DC Milliammeters	0-50	0-50	4690
06970	125 - 2-1/2	DC Millivoltmeters	0-50	0-50	6970
04210	125 - 2-1/2	DC Microammeters	0-50	0-50	4210
06910	25 - 3-1/2	DC Millivoltmeters	0-50	0-50	6910
01550	125 - 2-1/2	DC Ammeters	0-50	0-50	1550
03790	25 - 3-1/2	DC Microammeters	0-500	0-500	3790
07200	25 - 3-1/2	DC Voltmeters	0-500	0-300	7200
04760	25 - 3-1/2	DC Milliammeters	0-500	0-500	4760
04240	125 - 2-1/2	DC Microammeters	0-500	0-500	4240
05730	125 - 2-1/2	DC Milliammeters	0-500	0-500	5730
07280	25 - 3-1/2	DC Voltmeters	0-5000	0-5000	7280
00188	25 - 3-1/2	DC Ammeters	0-50mV	0-1000	188
00177	25 - 3-1/2	DC Ammeters	0-50mV	0-750	177
00170	25 - 3-1/2	DC Ammeters	0-50mV	0-500	170
00160	25 - 3-1/2	DC Ammeters	0-50mV	0-300	160
00151	25 - 3-1/2	DC Ammeters	0-50mV	0-250	151
00140	25 - 3-1/2	DC Ammeters	0-50mV	0-200	140
00130	25 - 3-1/2	DC Ammeters	0-50mV	0-150	130
00110	25 - 3-1/2	DC Ammeters	0-50mV	0-75	110
00120	25 - 3-1/2	DC Ammeters	0-50mV	0-100	120
01590	125 - 2-1/2	DC Ammeters	0-50mV	0-200	1590
01610	125 - 2-1/2	DC Ammeters	0-50mV	0-300	1610
01620	125 - 2-1/2	DC Ammeters	0-50mV	0-500	1620
01560	125 - 2-1/2	DC Ammeters	0-50mV	0-75	1560
01580	125 - 2-1/2	DC Ammeters	0-50mV	0-150	1580
01570	125 - 2-1/2	DC Ammeters	0-50mV	0-100	1570
07210	25 - 3-1/2	DC Voltmeters	0-750	0-300	7210
05670	125 - 2-1/2	DC Milliammeters	0-75	0-75	5670
03820	25 - 3-1/2	DC Microammeters	100-0-100	100-0-100	3820
00200	25 - 3-1/2	DC Ammeters	15-0-15	15-0-15	200
04196	125 - 2-1/2	DC Microammeters	100-0-100	100-0-100	4196
00210	25 - 3-1/2	DC Ammeters	30-0-30	30-0-30	210
01660	125 - 2-1/2	DC Ammeters	30-0-30	30-0-30	1660
35022	25 - 3-1/2	DC Milliammeters	43210	0-100%	35022
03830	25 - 3-1/2	DC Microammeters	500-0-500	500-0-500	3830
03810	25 - 3-1/2	DC Microammeters	50-0-50	50-0-50	3810
00220	25 - 3-1/2	DC Ammeters	50-0-50	50-0-50	220
04194	125 - 2-1/2	DC Microammeters	50-0-50	50-0-50	4194
01670	125 - 2-1/2	DC Ammeters	50-0-50	50-0-50	1670
35037	25 - 3-1/2	DC Ammeters	50-0-50mV	75-0-75	35037
35066	125 - 2-1/2	DC Ammeters	50-0-50mV	75-0-75	35066
