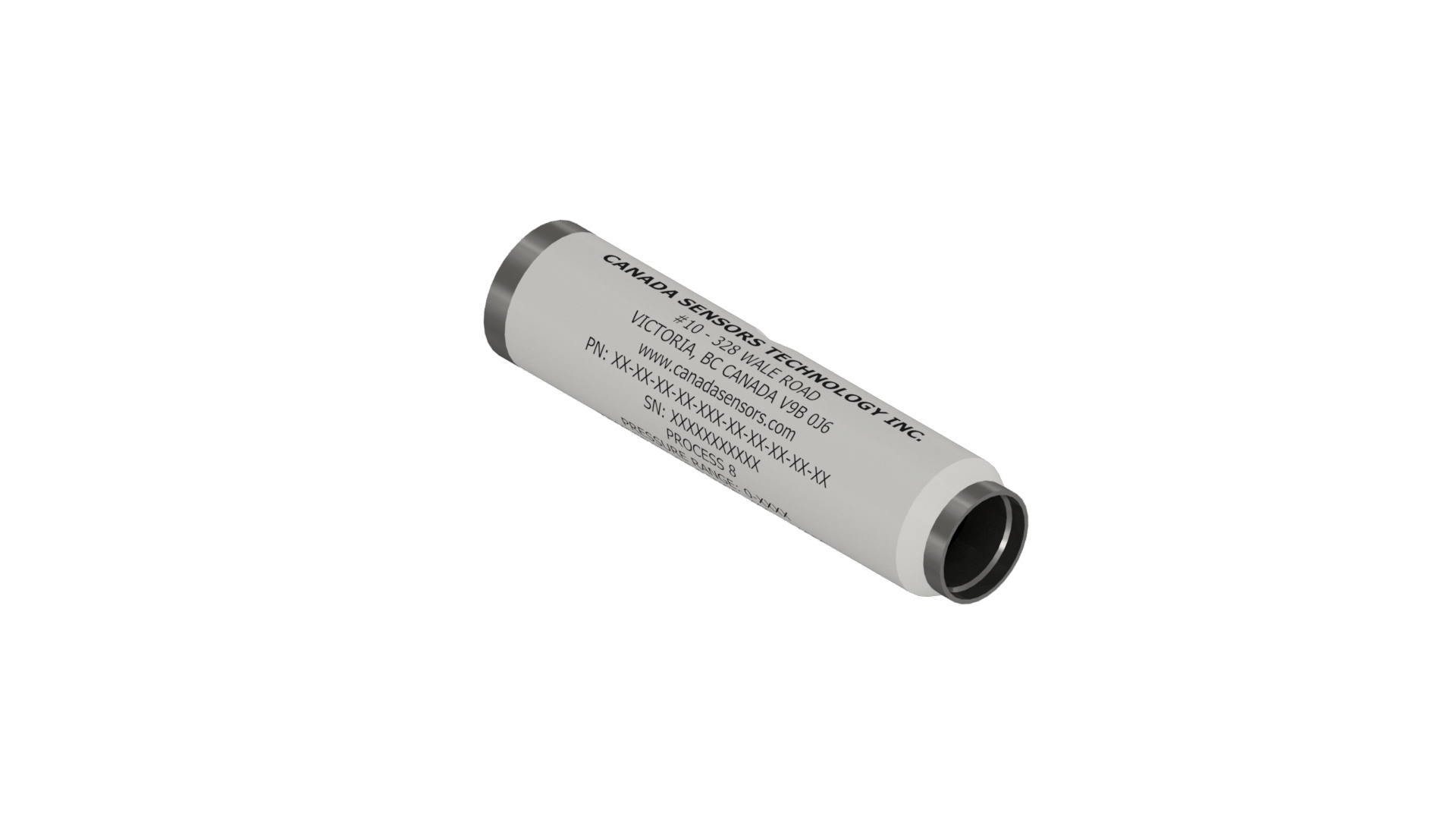

支持 HART™ 的差压测量本质安全型 Canada Sensors 智能变送器为压力变送器及相关仪表市场带来最新技术：自诊断功能确保在全程温度与压力范围内保持稳定的测量精度。

型号代码

• 08 Process 8

输出信号

• 01 - 4-20 mA

校准调节

• 01 - HART Enabled

压力基准

• 04 - Differential

压力量程

• 046 - 0 – 2 PSID
• 047 - 0 – 5 PSID
• 048 - 0 – 10 PSID
• 049 - 0 – 15 PSID
• 050 - 0 – 30 PSID
• 051 - 0 – 50 PSID
• 052 - 0 – 100 PSID
• 053 - 0 – 150 PSID
• 054 - 0 – 200 PSID

过程连接

• 01 - ¼” MNPT (Maximum Pressure 10,000 PSI)
• 02 - ¼” FNPT (Maximum Pressure 10,000 PSI)
• 03 - ½” MNPT (Maximum Pressure 10,000 PSI)
• 04 - ½” FNPT (Maximum Pressure 10,000 PSI)
• 07 - G-¼” (Maximum Pressure 5,000 PSI)
• 08 - G-1/2" (Maximum Pressure 5,000 PSI)

接液部件

• 02 - 316SS
• 03 - Inconel-718
• 04 - Titanium
• 05 - Hastelloy-276

电气连接

• 01 - 316SS Weld-on 6 Pin 90 Degree Military Connector
• 02 - 316SS Weld-on ½” MNPT Positional Swivel Conduit Fitting (2 ft Flying Lead)
• 03 - 316SS Weld-on ½” MNPT Positional Swivel Conduit Fitting (4 ft Flying Lead)
• 04 - 316SS Weld-on ½” MNPT Positional Swivel Conduit Fitting (6 ft Flying Lead)
• 05 - 316SS Weld-on ½” MNPT Positional Swivel Conduit Fitting (10 ft Flying Lead)
• 07 - 316SS Weld-on ½” MNPT Solid Conduit Fitting (2 ft Flying Lead)
• 08 - 316SS Weld-on ½” MNPT Solid Conduit Fitting (4 ft Flying Lead)
• 09 - 316SS Weld-on ½” MNPT Solid Conduit Fitting (6 ft Flying Lead)
• 10 - 316SS Weld-on ½” MNPT Solid Conduit Fitting (10 ft Flying Lead)
• 31 – Bendix Twist Connector 6 Pin (PTIH 10-6P) – Aluminum
• 33 – Bendix Twist Connector 6 Pin (PTIH 10-6P) – 316SS
• 34 - Aluminum XP Head (1/2" FNPT x 3) - 316SS Weld-on 1/2" MNPT Positional Swivel Conduit Fitting - Blank - No Window
• 35 - Aluminum XP Head (1/2" FNPT x 3) - 316SS Weld-on 1/2" MNPT Solid Conduit Fitting - Blank - No Window
• 37 - Aluminum XP Head (1/2" FNPT x 3) - 316SS Weld-on 1/2" MNPT Positional Swivel Conduit Fitting w/ 3 1/2 + Digits LCD Loop Powered Display
• 38 - Aluminum XP Head (1/2" FNPT x 3) - 316SS Weld-on 1/2" MNPT Solid Conduit Fitting w/ 3 1/2 + Digits LCD Loop Powered Display
• 40 - Aluminum XP Head (1/2" FNPT x 1, 3/4" FNPT x 2) - 316SS Weld-on 1/2" MNPT Positional Swivel Conduit Fitting w/ 5 + Digits LCD Loop Powered Display
• 41 - Aluminum XP Head (1/2" FNPT x 1, 3/4" FNPT x 2) - 316SS Weld-on 1/2" MNPT Solid Conduit Fitting w/ 5 Digits LCD Loop Powered Display
• 47 - Aluminum XP Head (1/2" FNPT x 1, 3/4" FNPT x 2) - 316SS Weld-on 1/2" MNPT Positional Swivel Conduit Fitting w/ 5 or 7 Digits LCD Loop Powered Flow Rate Totalizer
• 48 - Aluminum XP Head (1/2" FNPT x 1, 3/4" FNPT x 2) - 316SS Weld-on 1/2" MNPT Solid Conduit Fitting w/ 5 or 7 Digits LCD Loop Powered Flow Rate Totalizer

环境防护处理

• 01 - PTFE Treatment
• 02 - No Treatment
• 04 - DLC (Diamond Like Coating)

精度

• 01 - 0.075%
