heating, plumbing, air conditioning 和 通风 应用
提供 4.5” (115mm) 或 6” (150mm) 刻度
黄铜 插座 1/2” NPT 为 标准 (不锈钢 可选)

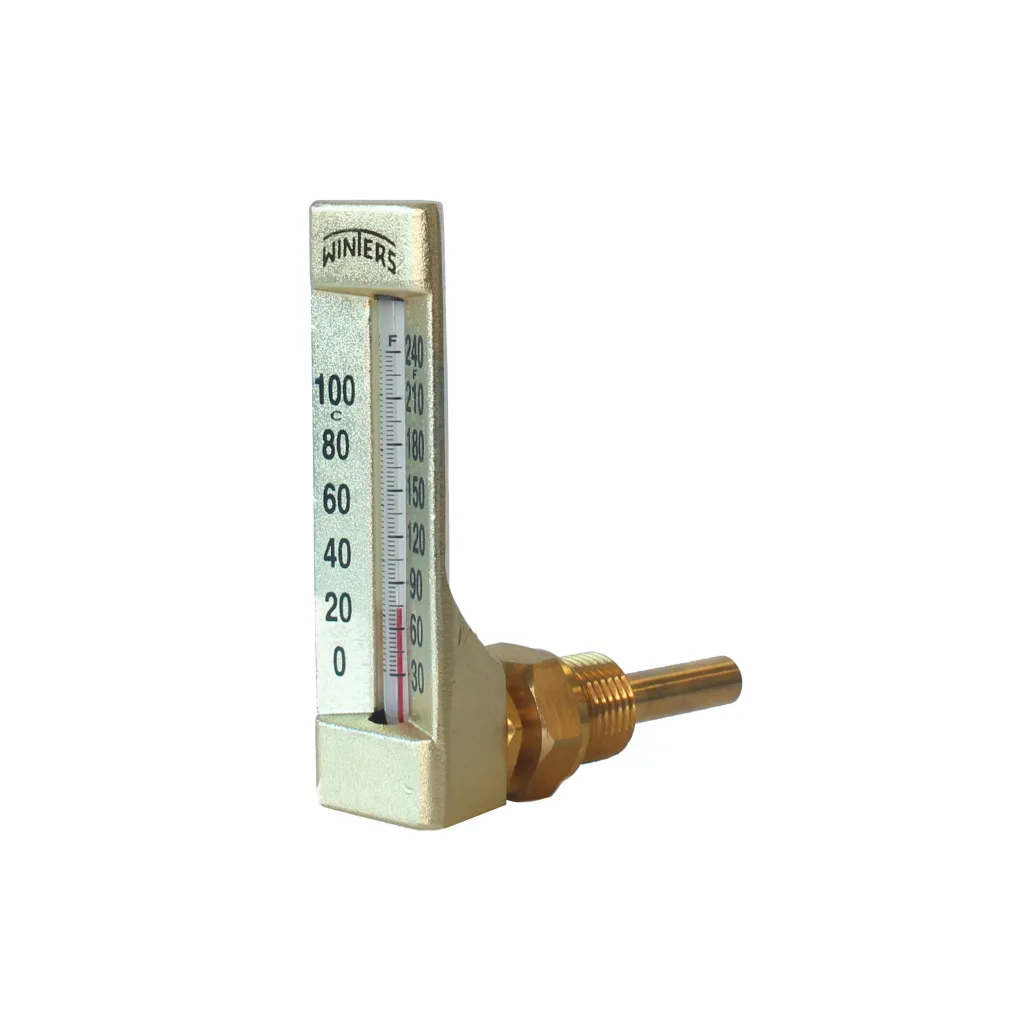

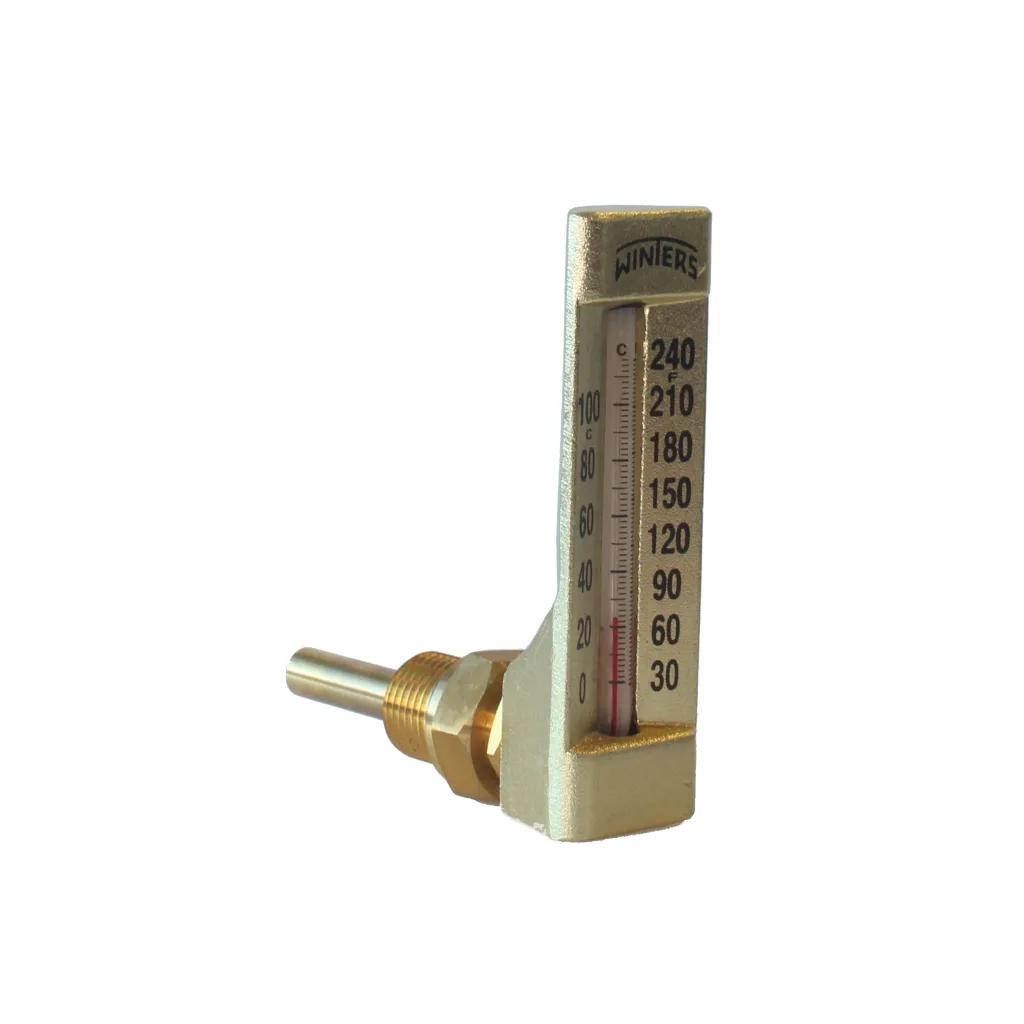

提供 任一 直通 型号 (底部 连接) 或 90° 角式 型号 (背面 连接)
ASME B40.200 和 ASTM E2251 compliant
5 年 质保
| Scale | Aluminum, black markings |
| Case | 4.5” (110 mm), 6” (150 mm) aluminum, anodized gold |
| Tube | Glass cushioned |
| Liquid Filling | Organic liquid (red) |
| Stem | Brass (SS optional) |
| Connection | 1/2” NPT (1/2” BSP optional) |
| Swivel Nut | Brass (SS optional; swivel and stem one unit) |
| Ambient/Process Temperature | -40°F to 400°F (-40°C to 204°C) |
| Operating Temperature | Maximum 80% of full scale value recommended |
| Accuracy | ±2% of full scale |
| Enclosure Rating | IP65 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
