热水 lines, boilers, heating, 通风 和 air conditioning

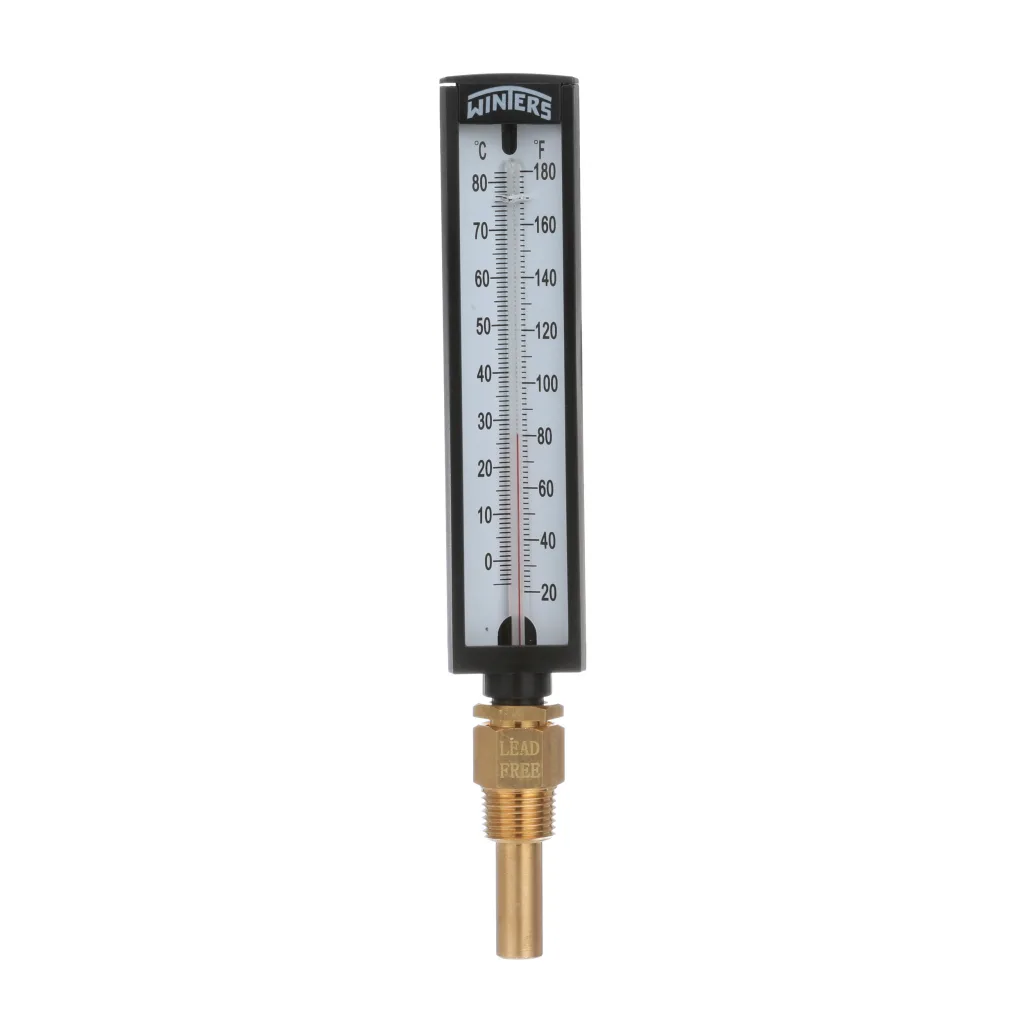

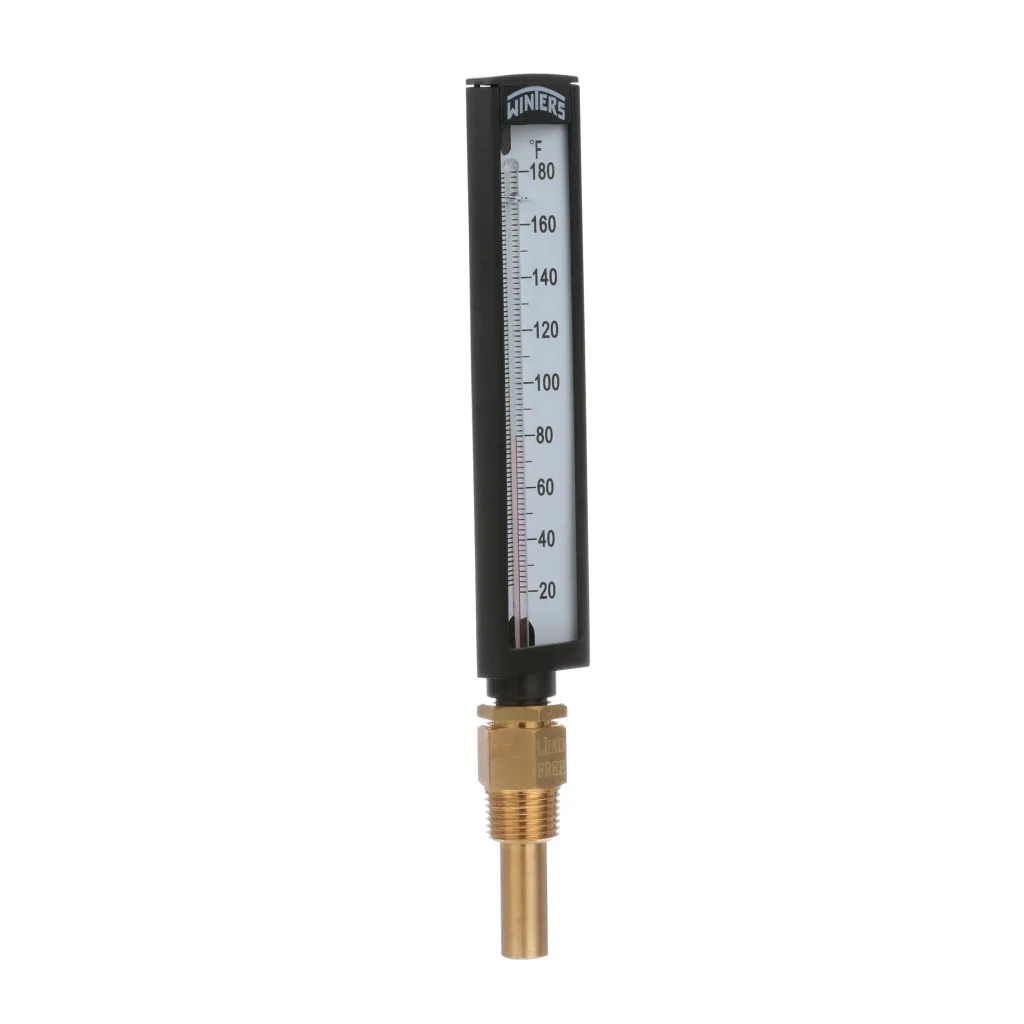

全部-用途, 经济型 温度计 带 立式 传感 tube 和 表壳
separable 黄铜, 无铅 黄铜 或 不锈钢 温度计套管
冲击 防护 ABS 表壳
红色 液态-在 玻璃
双 刻度 (°f 与 °c)
直通 或 角式 连接
1/2” NPT 过程连接
ASME B40.200 ASTM E2251 compliant
RoHS compliant (带 SS 温度计套管 仅)
5 年 质保
| Scale | Aluminum, painted white with black markings |
| Case | 5" (127mm) black ABS |
| Lens | Glass |
| Tube | Glass, cushioned |
| Liquid Filling | Kerosene, tinted red |
| Stem | Brass |
| Thermowell | TAS: Brass 1/2” NPT standard (3/4" and SS optional) TAS-LF: Lead free brass 1/2” NPT standard (3/4" optional) |
| Operating Pressure | Maximum 710 psi (4,895 kPa) |
| Ambient Temperature | -40°F to 122°F (-40°C to 50°C) |
| Process Temperature | -40°F to 400°F (-40°C to 204°C) |
| Accuracy | ±2% of full scale |
| Enclosure Rating | IP50 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
