工业过程, heating 和 air conditioning, 通风 和 污水 应用
通用, 多功能 1” (25mm) 以 6” (150mm) 表盘, 304 不锈钢 温度计
bi-metallic 感压元件 用于 可靠 读数

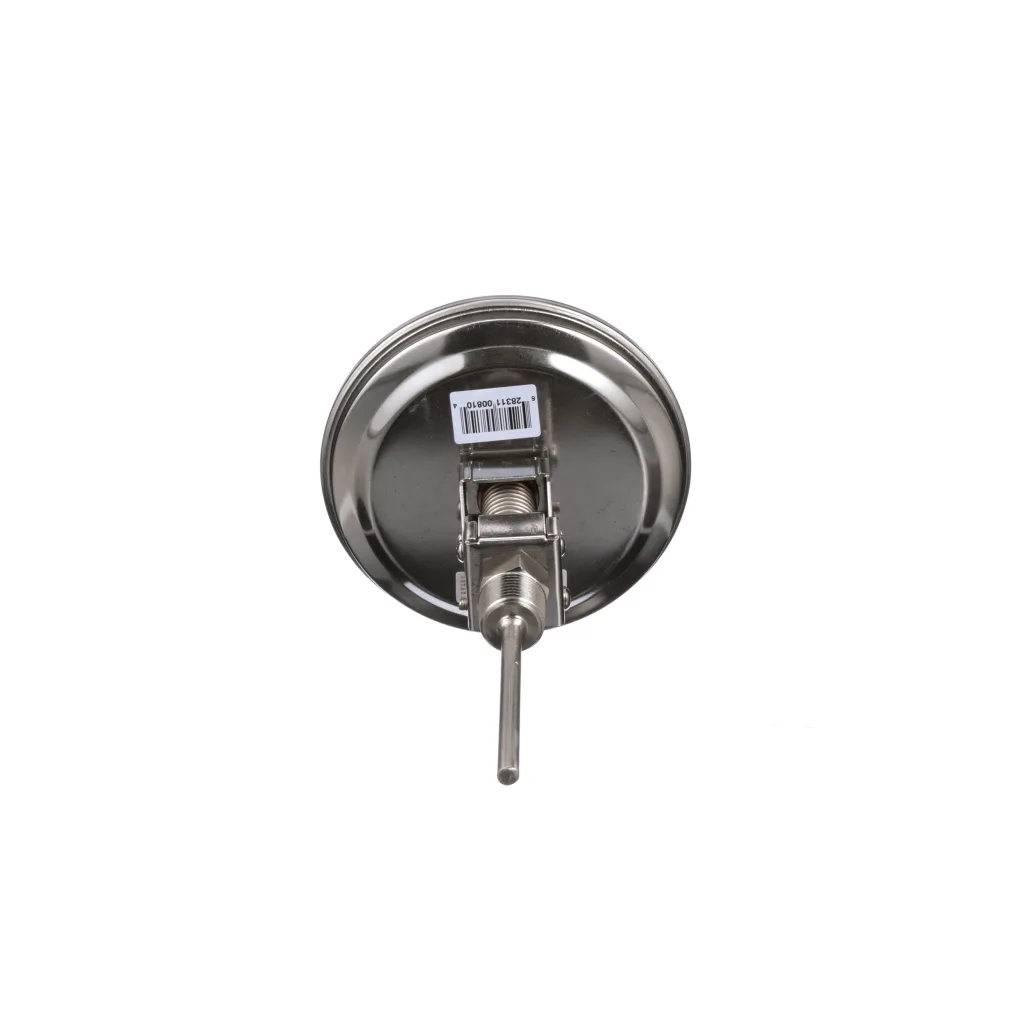

背面, 底部 或 可调 角式 连接
welded stem 长度 来自 2.5” (63mm) 和 up
±1% 精度
anti-parallax 表盘 该 reduces 操作员 读数 errors (3” (75mm)–6” (150mm))
recalibrator 螺钉 为 标准 于 全部 表盘 尺寸规格
ASME B40.200 compliant
RoHS compliant
5 年 质保
双金属 温度计 是 useful 仪器 用于 测量 温度. if 您’re looking 用于 双金属温度计, look no further! we 具备 some 的 top-performing 双金属 温度计 在 market.
| Dial | 1” (25mm), 2” (50mm): Aluminum with black markings, flat dial 3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm) Aluminum with black markings, anti-parallax |
| Case | AISI 304 SS |
| Stem | AISI 304 SS, centre back, bottom or adjustable angle configurations (316 SS optional*) 1" (25mm), 2” (50mm) dial: Centre back connection only |
| Recalibrator Screw | Standard |
| Lens | 1” (25mm): Polycarbonate Others: Glass standard, hermetically sealed |
| Ring | AISI 304 SS |
| Connection | 1” (25mm): None 2” (50mm): 1/4” NPT standard 3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm): 1/2” NPT standard |
| Movement | Bi-metallic coil |
| Pointer | Aluminum, painted black |
| Maximum Operating Pressure | 125 psi (861 kPa) |
| Operating Temperature | 75% of full scale value (recommended maximum) |
| Ambient Temperature | -58°F to 248°F (-50°C to 120°C) |
| Accuracy | ±1% of full scale |
| Enclosure Rating | 2" (50mm) to 6" (150mm): IP68 |
| *Contact Winters for 316 SS requirements | |
