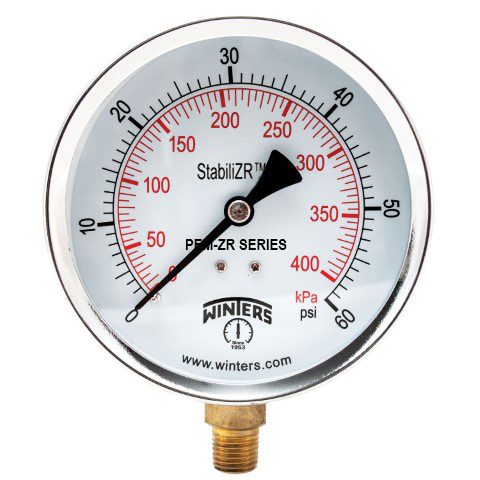

PEM-ZR 经济型 Stabilizr® 表压
返回
型号：PEM-ZR
通用 表压 用于 plumbing, heating, air conditioning, pneumatic, hydraulic, 水 储罐 和 air compressorssuitable 用于 non-clogging 和 non-corroding media
通用 表压 用于 plumbing, heating, air conditioning, pneumatic, hydraulic, 水 储罐 和 air compressorssuitable 用于 non-clogging 和 non-corroding media
Stabilizr® dampened 表芯 minimizes effects 的 pulsation 和 振动
最 经济型, 全部-用途 压力表
1.5” (40mm) 以 4” (100mm) 尺寸规格
friction 表圈 rings
黑色 钢 表壳
黄铜 wetted parts
ASME B40.100 compliant (EN837-1 可选)
±3-2-3% 精度
CRN registered
5 年 质保
| Dial | 1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm) white aluminum with black and red markings |
| Case | Steel, painted black (plastic available) |
| Lens | 1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic 4” (100mm): Glass |
| Ring | 1.5” (40mm), 2” (50mm): Steel, painted black 2.5” (63mm), 4” (100mm): Steel, chrome plated |
| Socket | Brass |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass, StabiliZR®️ dampened movement (silicone in sealed chamber) |
| Pointer | Aluminum, black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | -76°F to 200°F (-60°C to 93°C) |
| Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |
 Warning:
This product can expose you to chemicals including lead, which is
known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
|
