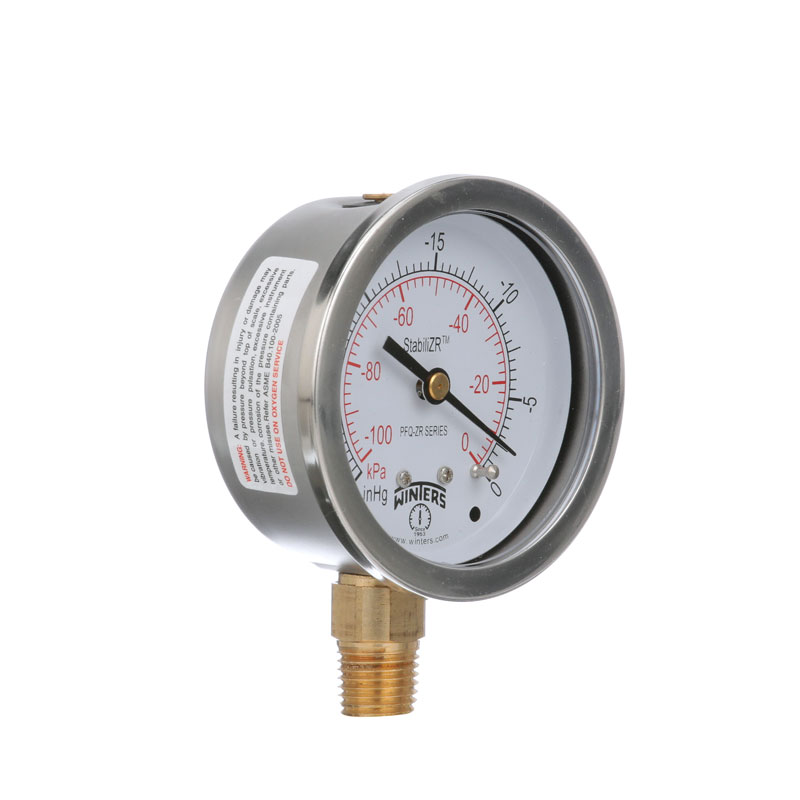

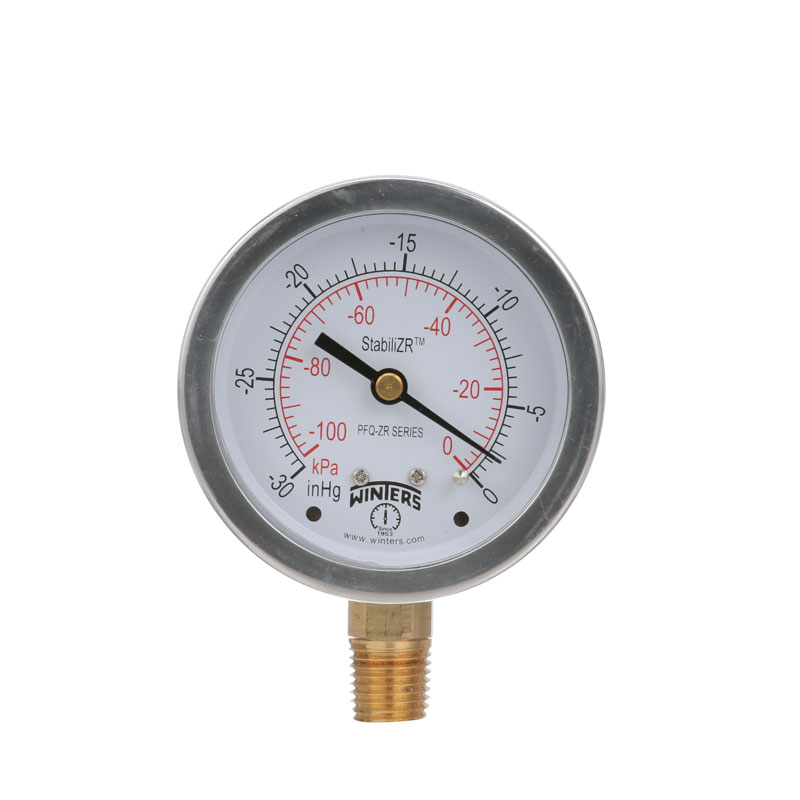

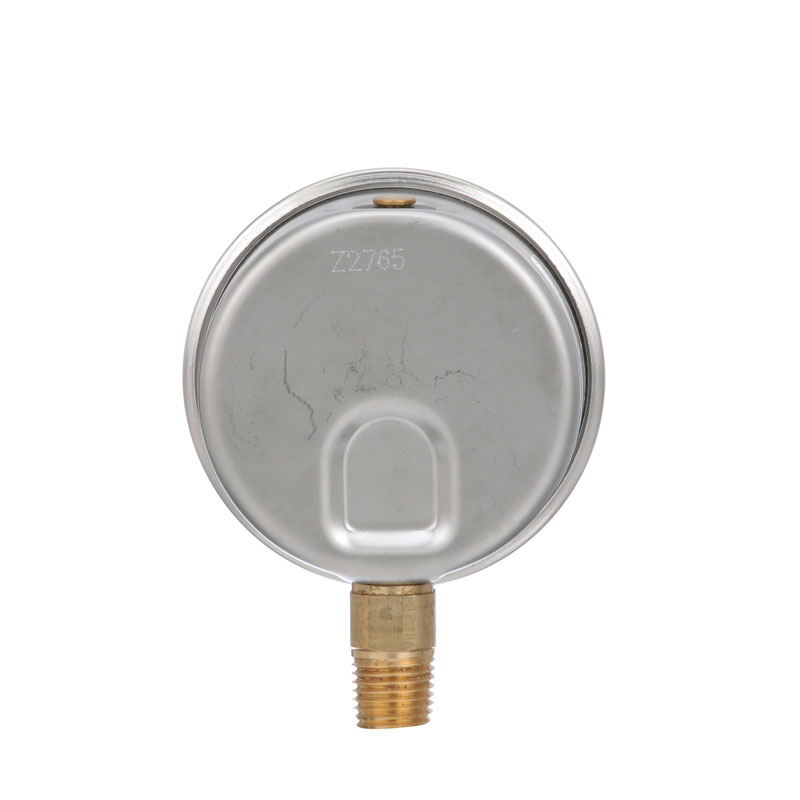

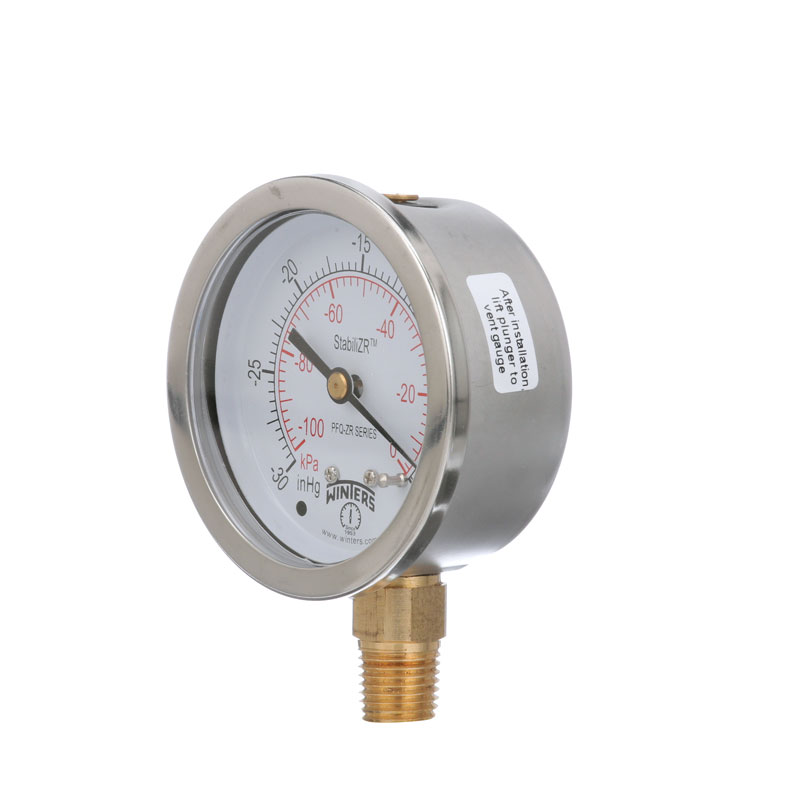

PFQ-ZR Stabilizr® 不锈钢 压力表
返回
型号：PFQ-ZR
适用于 泵, compressors, hydraulic presses, 机械设备, pneumatic 设备 和 电机 在 harsh environmentsuse 其中 harmful 振动 和 pulsation 是 present
适用于 泵, compressors, hydraulic presses, 机械设备, pneumatic 设备 和 电机 在 harsh environmentsuse 其中 harmful 振动 和 pulsation 是 present
Stabilizr® dampened 表芯 minimizes effects 的 pulsation 和 振动 无 液态 filling (flutterless 指针)
restricted orifice 标准 于 双 刻度
crimp-于 表圈
黄铜 internals
双 刻度 (psi/kpa)
u-clamps 和 前部 flanges 用于 面板 安装
ASME B40.100 compliant (EN837-1 可选)
CRN registered
5 年 质保
| Dial | 2.5” (63mm), 4” (100mm), 6"" (150mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | 304 SS (crimped on) |
| Socket | Brass with restricted orifice (dual scale only) |
| Connection | 1/4” NPT |
| Bourdon Tube | Bronze |
| Movement | Brass with StabiliZR®️ dampened movement (silicone in sealed chamber) |
| Pointer | Anodized black aluminum |
| Over-pressure Limit |
25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,500 psi (10,342 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone Rubber |
| Working pressure | 75% of full scale value |
| Ambient Temperature | -76°F to 200°F (-60°C to 93°C) |
| Process Temperature | -40°F to 200°F (-40°C to 93°C) |
| Accuracy | ±1.5% of full scale value |
| Enclosure Rating | IP65 |
| Warning | WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
