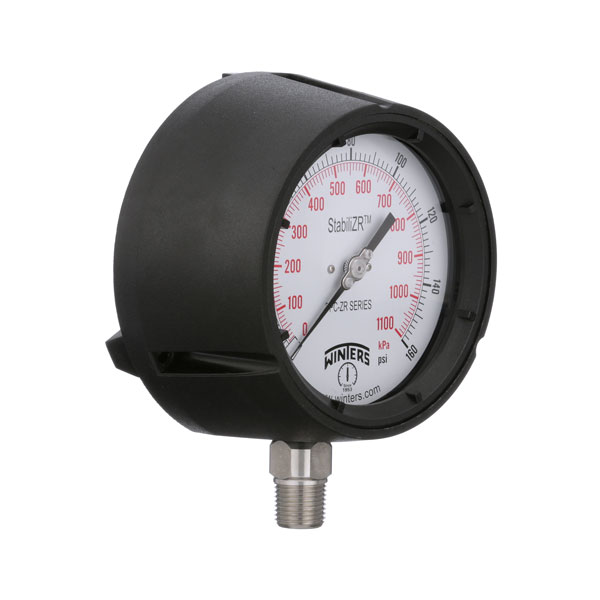

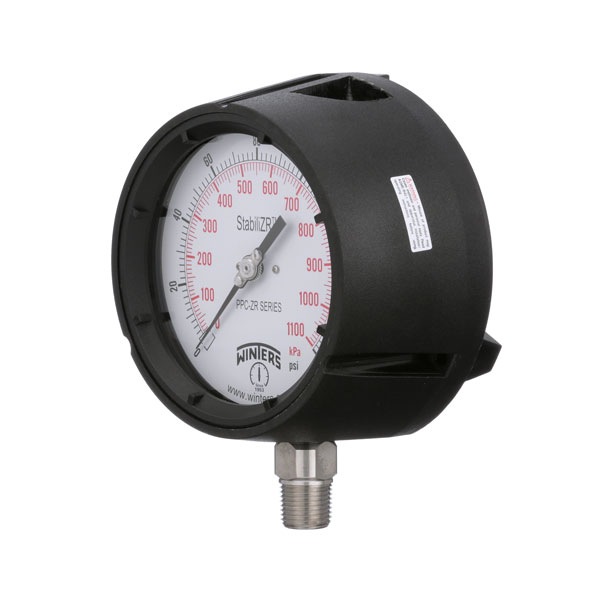

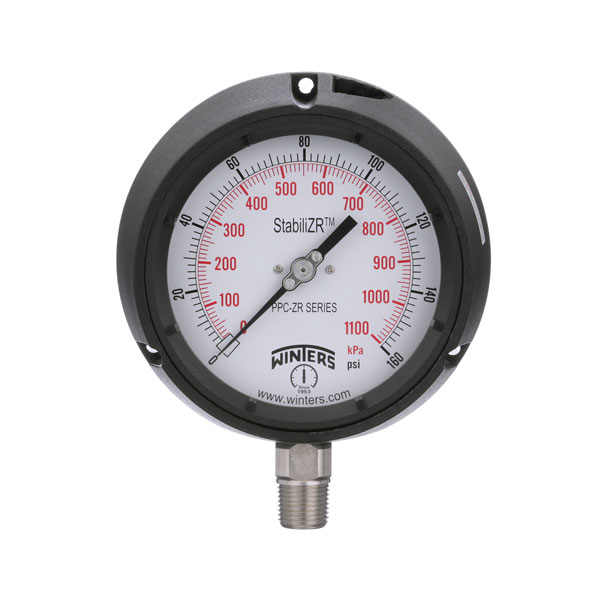

PPC-ZR Stabilizr® 过程 表压
返回
ideally suited 用于 过程, chemical, petroleum 和 电力 industriessuitable 用于 non-clogging corrosive mediaused 其中 操作员 安全 为 requirementprocesses 其中 pulsation 和 振动 exist
ideally suited 用于 过程, chemical, petroleum 和 电力 industriessuitable 用于 non-clogging corrosive mediaused 其中 操作员 安全 为 requirementprocesses 其中 pulsation 和 振动 exist
Stabilizr®️ dampened 表芯 minimizes effects 的 pulsation 和 振动 如 effectively 如 充液 表

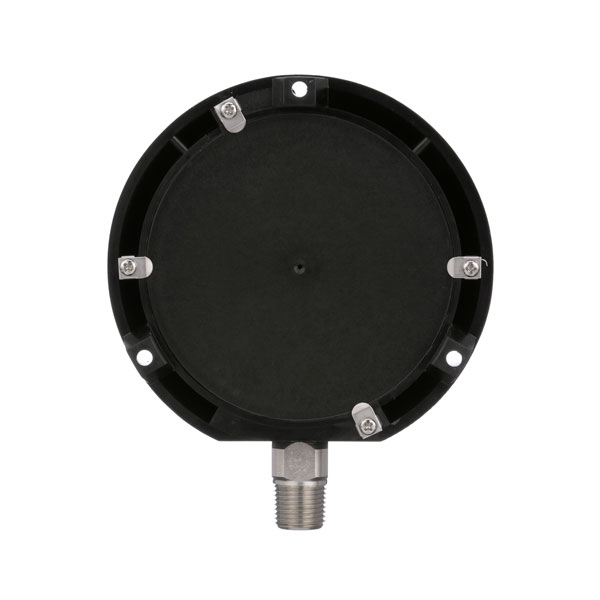

实心 酚醛树脂 前部 和 polypropylene 压力 relief 背面 安全
±0.5% 精度
不锈钢 全 rotary 表芯
micrometer 可调 指针 用于 ease 在 校准
低于 和 过载 stops
316L 不锈钢 或 黄铜 wetted parts 标准
restricted orifice 标准 于 双 刻度 (可选 于 单 刻度)
ASME B40.100 compliant
CRN registered
5 年 质保
Stainless Steel Internals | Brass Internals | |||||
| Dial | 4.5” (115mm) aluminum with black and red markings | 4.5” (115mm) white aluminum with black and red markings | ||||
| Case | Black phenolic with pressure relief back, solid front, integral back flange | Black phenolic with pressure relief back, solid front, integral back flange | ||||
| Solid Wall | Phenolic | Phenolic | ||||
| Pressure Relief Back | Polypropylene | Polypropylene | ||||
| Window | Polycarbonate | Polycarbonate | ||||
| Ring | Phenolic | Phenolic | ||||
| Pointer | Aluminum, anodized black, micrometer adjustable | Aluminum, anodized black, micrometer adjustable | ||||
| Socket | 316L SS | OT 58 brass | ||||
| Connection | 1/4” or 1/2” NPT standard, bottom or back | 1/4” or 1/2” NPT standard, bottom or back | ||||
| Bourdon Tube | 316L SS, drawn seamless | Phosphor bronze | ||||
| Movement | 304 SS protected with under and overload stops and StabiliZR™ dampened movement (silicone in sealed chamber) | 304 SS protected with under and overload stops and StabiliZR™ dampened movement (silicone in sealed chamber) | ||||
| Gasket Materials | Dry & glycerin filled gauges: Black NBR Silicone filled gauges: Brown NBR | Dry & glycerin filled gauges: Black NBR Silicone filled gauges: Brown NBR | ||||
| Welding | TIG | Silver Alloy | ||||
| Over-pressure Limit | 25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa) | 25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa) | ||||
| Working Pressure | Maximum 75% of full scale value | Maximum 75% of full scale value | ||||
| Ambient Temperature |
|
| ||||
| Process Temperature | -40°F to 250°F (-40°C to 120°C) | -40°F to 150°F (-40°C to 65°C) | ||||
| Accuracy | ±0.5% ANSI/ASME Grade 2A | ±0.5% ANSI/ASME Grade 2A | ||||
| Enclosure Rating | IP65 | IP65 | ||||
| Warning (brass internals only) | N/A |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. | ||||
