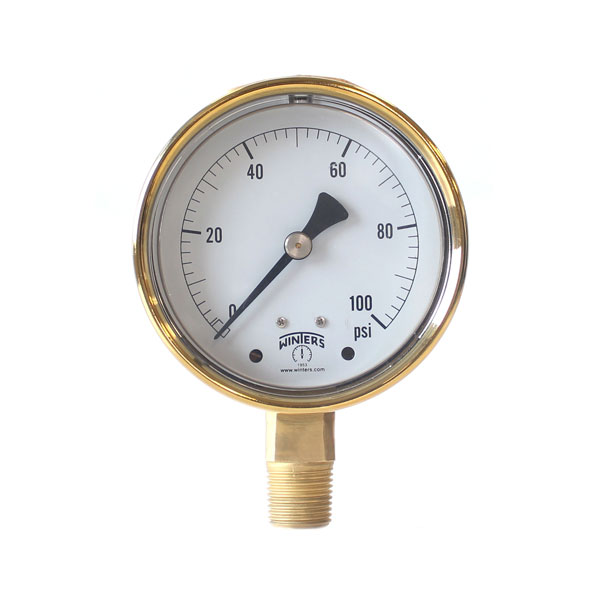

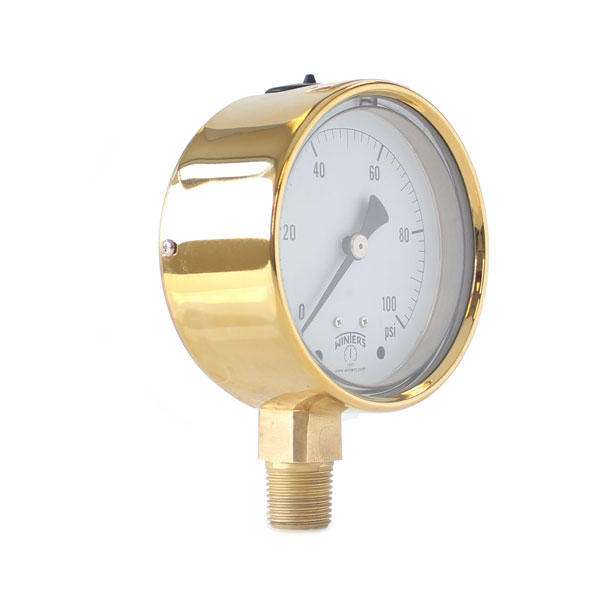

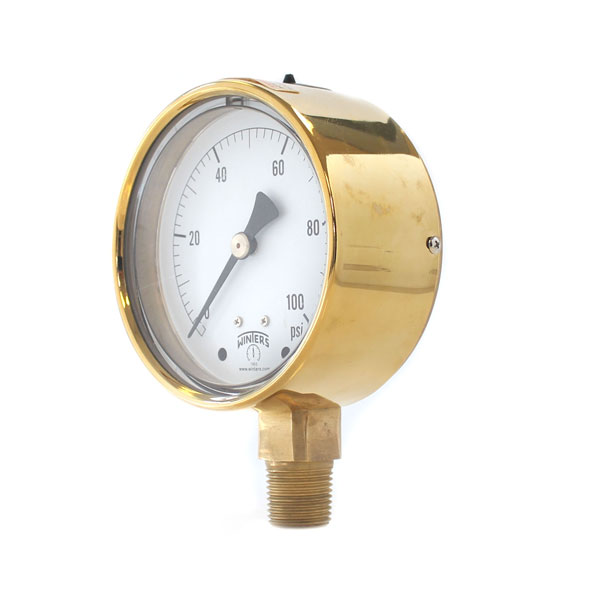

高 振动 工业 装置 包括 hydraulic 和 fracking 系统
一体式 forged 黄铜 表壳 设计 用于 severe service 工况
便捷-以-读取 单 或 双 刻度 表盘
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 2.5” (63mm), 4” (100mm) |
| Case | Forged brass, rugged 2.5" (63mm): Liquid filled case standard, 4" (100mm): dry case standard |
| Lens | Polycarbonate |
| Ring | 2.5” (63mm): Gold-coloured ABS, 4” (100mm): Polished brass |
| Socket | Brass |
| Pointer | Aluminum, anodized black |
| Connection | 2.5” (63mm): 1/4” NPT bottom or back, 4” (100mm): 1/4” NPT or 1/2” NPT bottom |
| Wetted Parts | Brass |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | 2.5” (63mm): ±1.5% of full scale, 4”(100mm): ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP65 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
