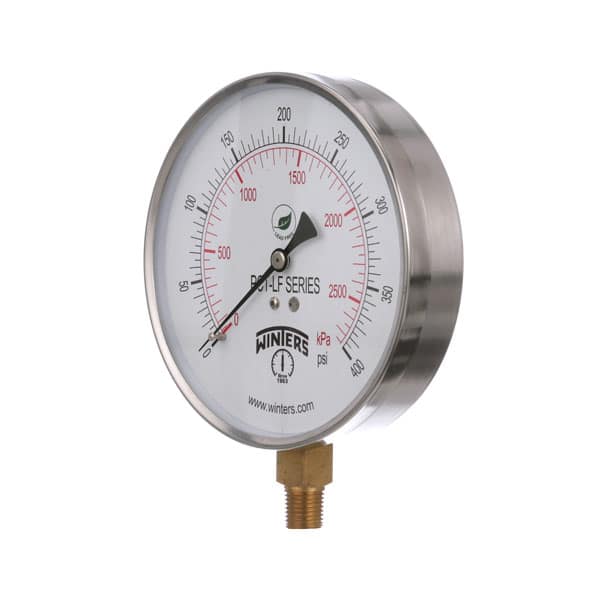

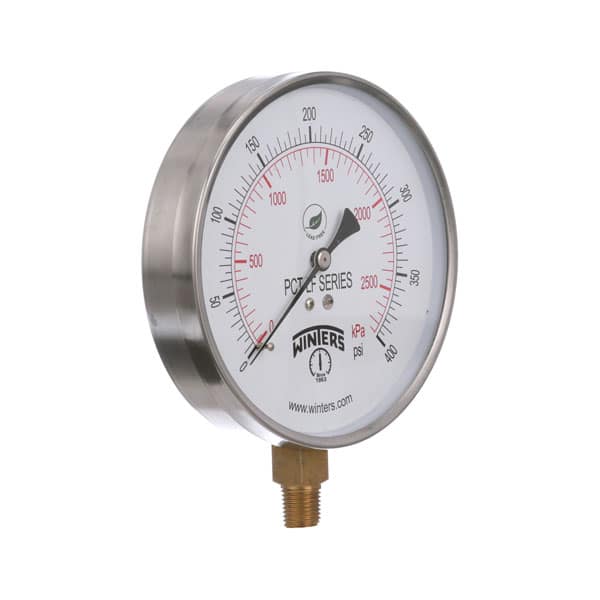

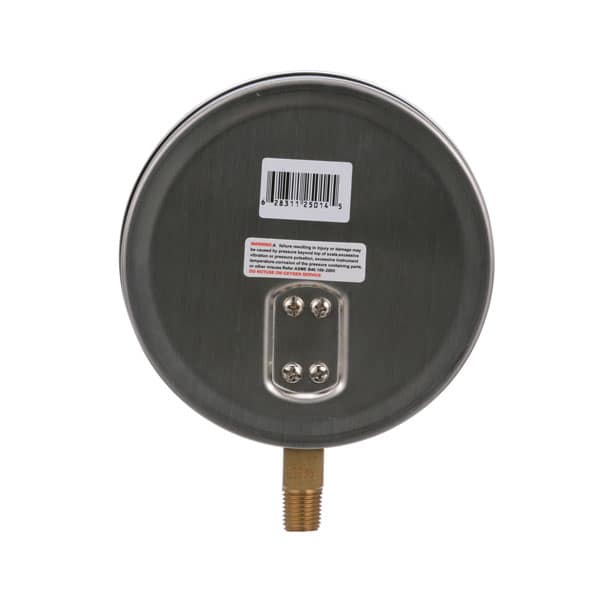

PCT 工程型 压力表/ PCT-LF LEAD 无 工程型 表压
返回
型号：PCT
最 商用 air, 水 和 steam services (带 syphon)无铅 版本 用于 potable 水 系统
最 商用 air, 水 和 steam services (带 syphon)无铅 版本 用于 potable 水 系统
经济型 4.5” (115mm) 不锈钢 表壳 表压
黄铜 或 无铅 黄铜 wetted parts
±1% 精度
零点 adjustment 螺钉
1/4” NPT
restricted orifice
ASME B40.100 compliant
CRN registered
无铅 版本 NSF-61-372 已认证
5 年 质保
| Dial | 4.5” (115mm) white aluminum dial with black and red markings |
| Case | 304 SS |
| Lens | Acrylic |
| Ring | 304 SS |
| Socket | PCT: Brass PCT-LF: Lead free brass, NSF-61-372 certified |
| Connection | 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | PCT: Brass PCT-LF: Lead free brass, NSF-61-372 certified |
| Pointer | Aluminum, anodized black, recalibrator screw |
| Welding | Silver solder |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,500 psi (10,342 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 200°F (-40°C to 93°C) |
| Accuracy | ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
