适用于 hydraulic 和 pneumatic 装置 requiring 仪器 orientation
pulsation 防护, 充液 不锈钢 表壳
甘油 充液 标准 (干式 表壳 可选)
黄铜 internals
restricted orifice 标准
crimp-于 不锈钢 表圈
双 刻度 (psi/棒状)

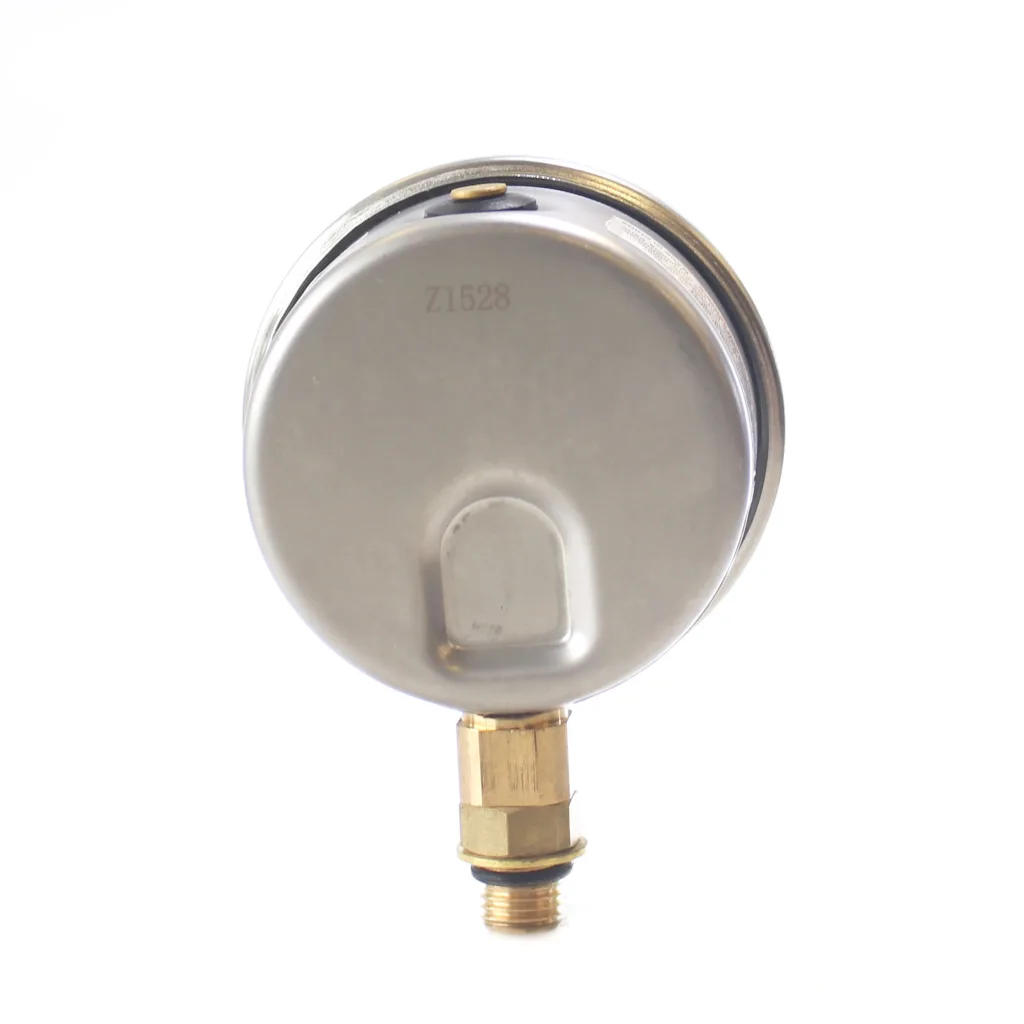

可选 背面 flange
ASME B40.1 compliant
CRN registered
5 年 质保

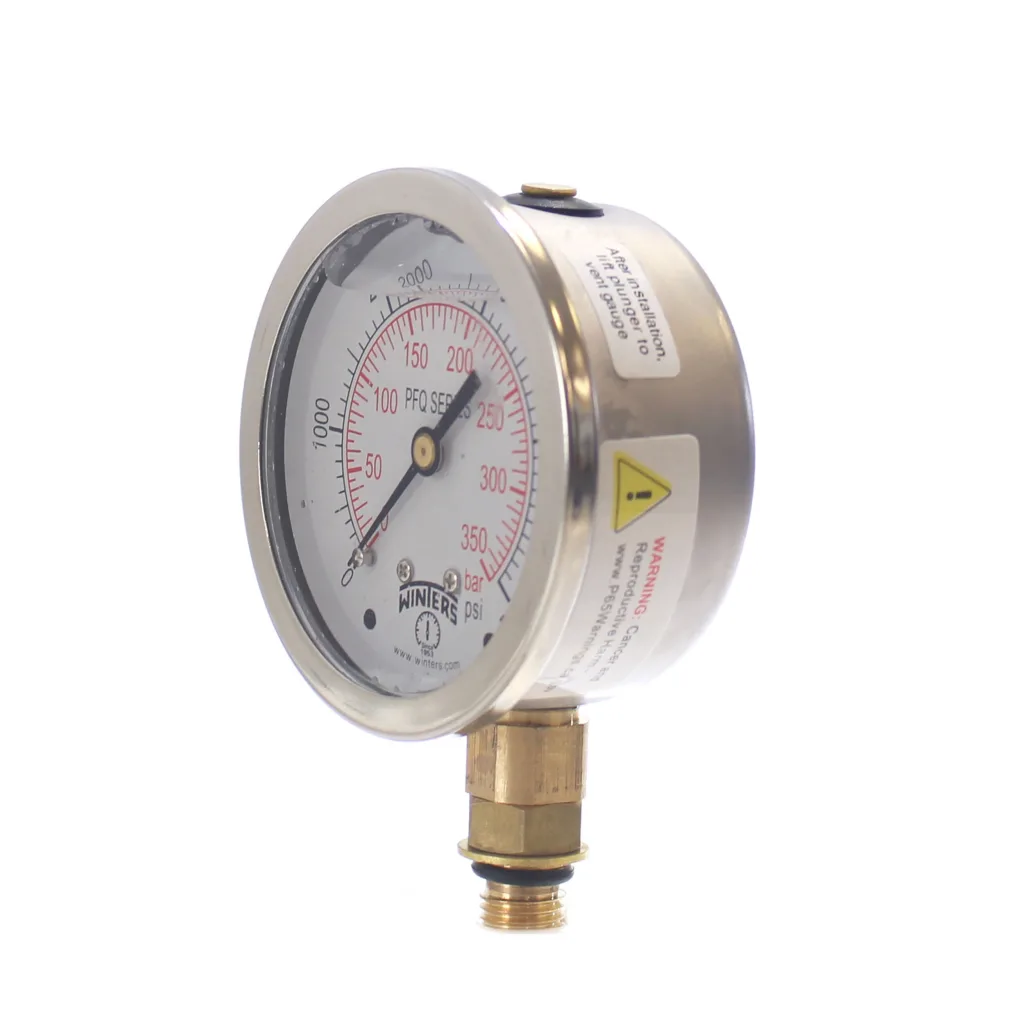

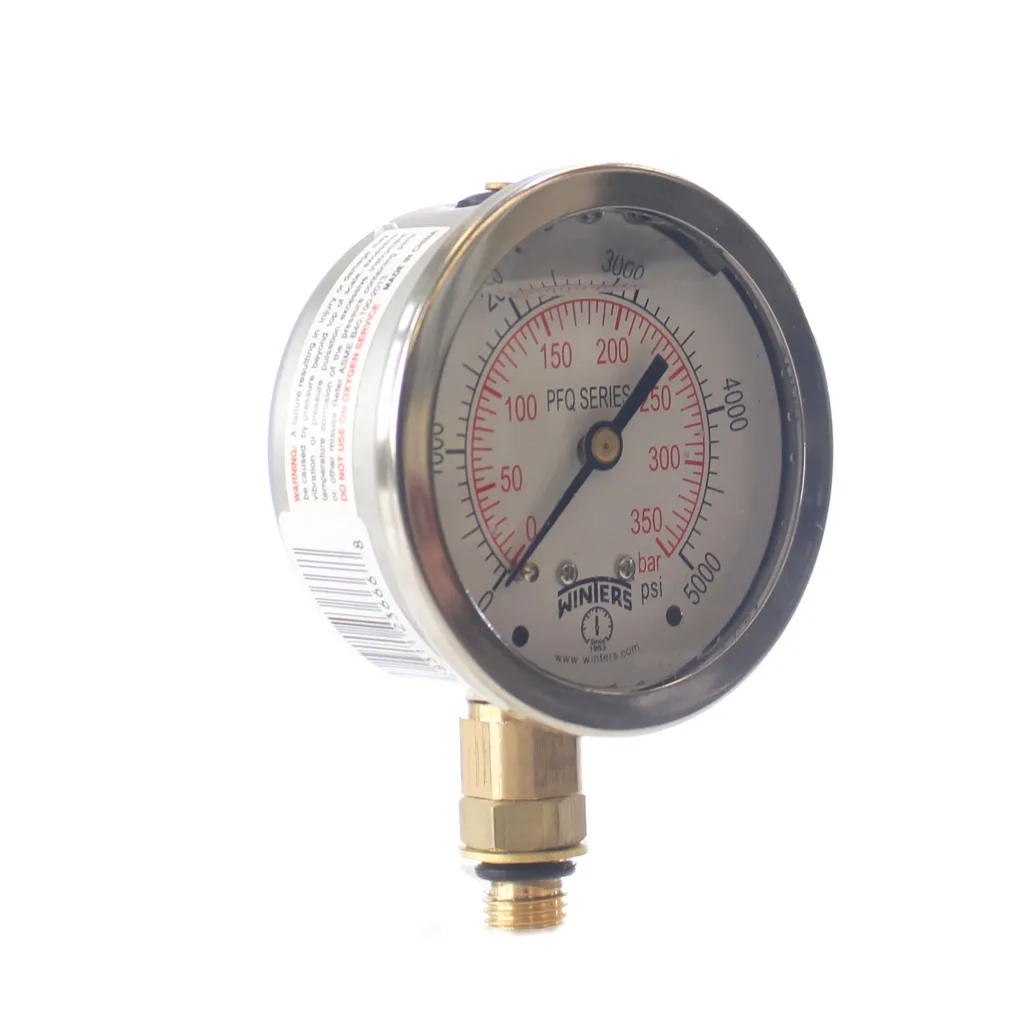

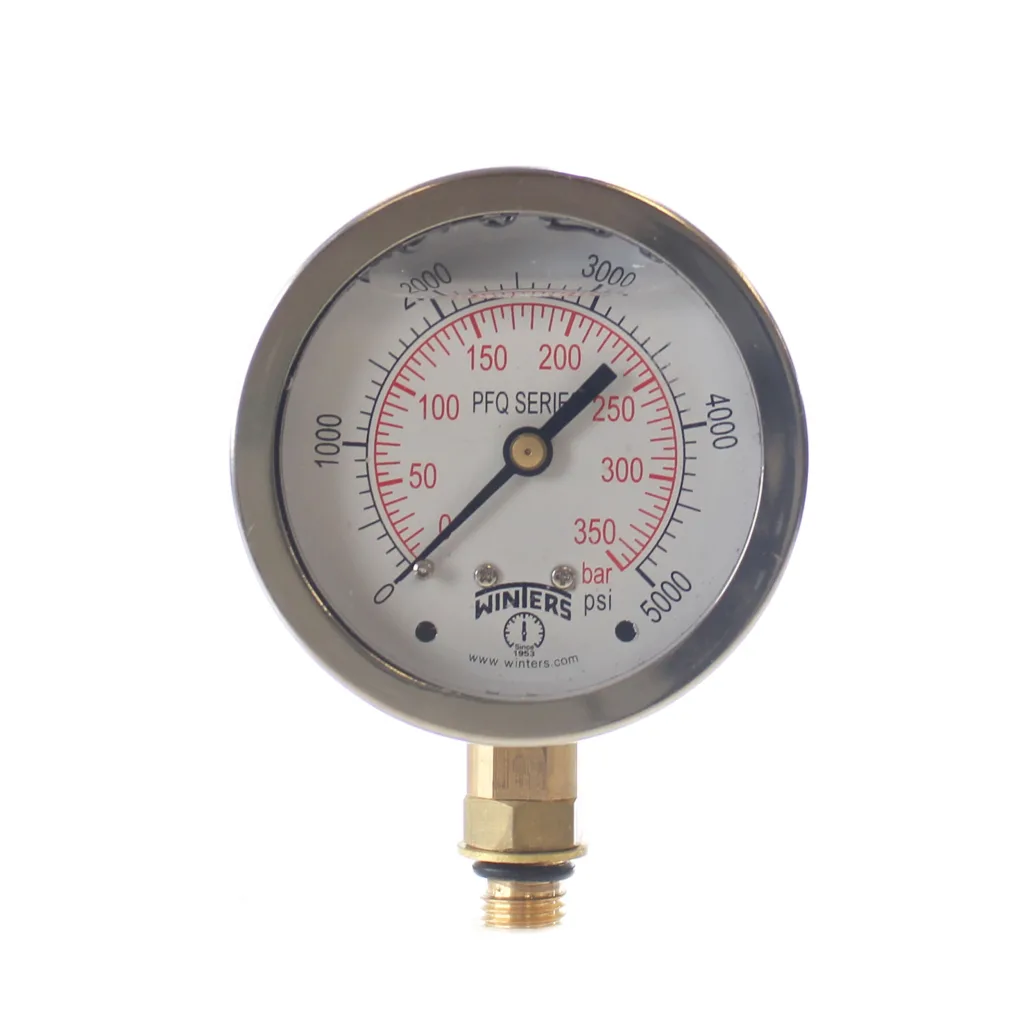

| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | Brass with restricted orifice |
| Connection | 7/16"-20 SAE, lower mount |
| Fill Liquid | Glycerin |
| Bourdon Tube | C-shaped for pressures up to and including 600 psi, spiral for pressures above 1000 psi |
| Movement | Brass |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver Alloy, 316SS: TIG |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,500 psi (10,342 kPa) |
| Socket Gasket | Buna N for two piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone Rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C) Glycerine Filled: -4°F to 150°F (-20°C to 65°C) |
| Accuracy | ±1.5% of full scale |
| Enclosure Rating | IP65 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
