应用 其中 操作员 安全 为 must

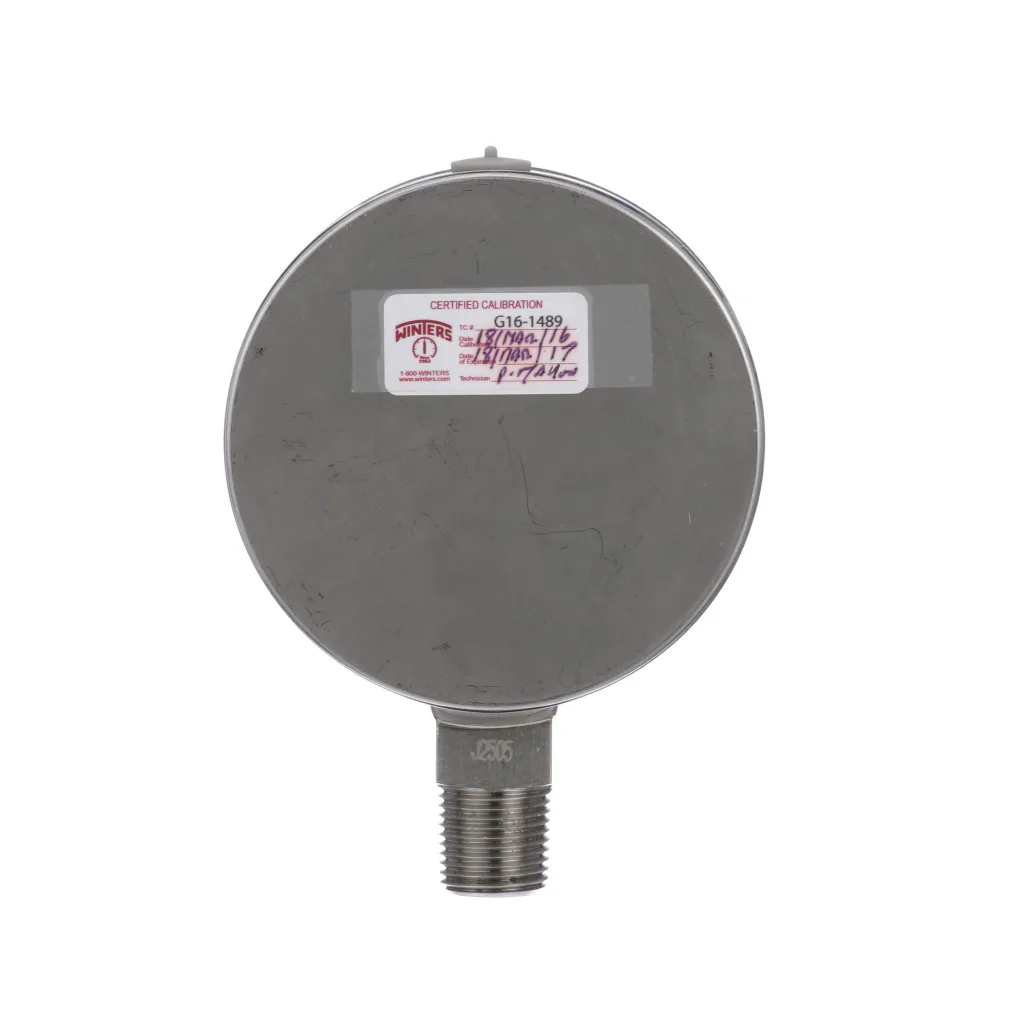

实心 前部 blowout 背面 用于 ultimate 在 表压 安全
全 rotary 表芯 和 micrometer 指针 用于 ease 在 校准
过载 stop
不锈钢 表壳, 插座 和 internals
安全 玻璃 表镜
restrictor orifice 标准
ASME B40.100 (EN837-1 可选)
RoHS compliant
CRN registered
5 年 质保
<
| Dial | 4” (100mm), 4.5” (115mm), 6” (150mm), white aluminum with black and red markings |
| Case | 304 SS case with blowout back |
| Lens | 4” (100mm), 6” (150mm): Laminated safety glass 4.5” (115mm): Tempered safety glass |
| Ring | SS bayonet |
| Socket | 316L SS |
| Connection | 1/4” or 1/2” NPT bottom |
| Bourdon Tube | 316L SS |
| Movement | 304 SS with overload stop |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,450 psi (9,998 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | 4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A 4.5” (115mm): ±0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | 4" (100mm), 6" (150mm): IP67, EN60529-1 (IEC529-1) 4.5" (115mm): IP65, EN60529-1 (IEC529-1) |
