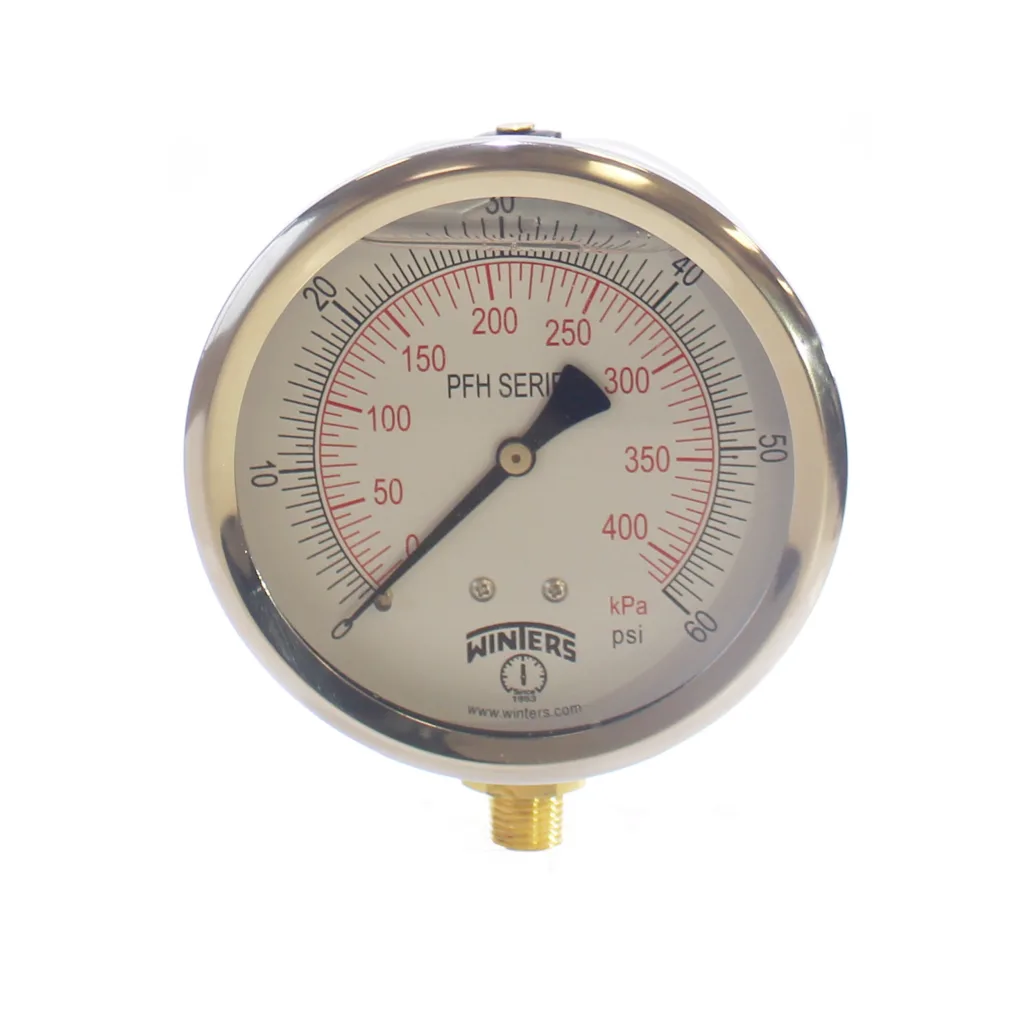

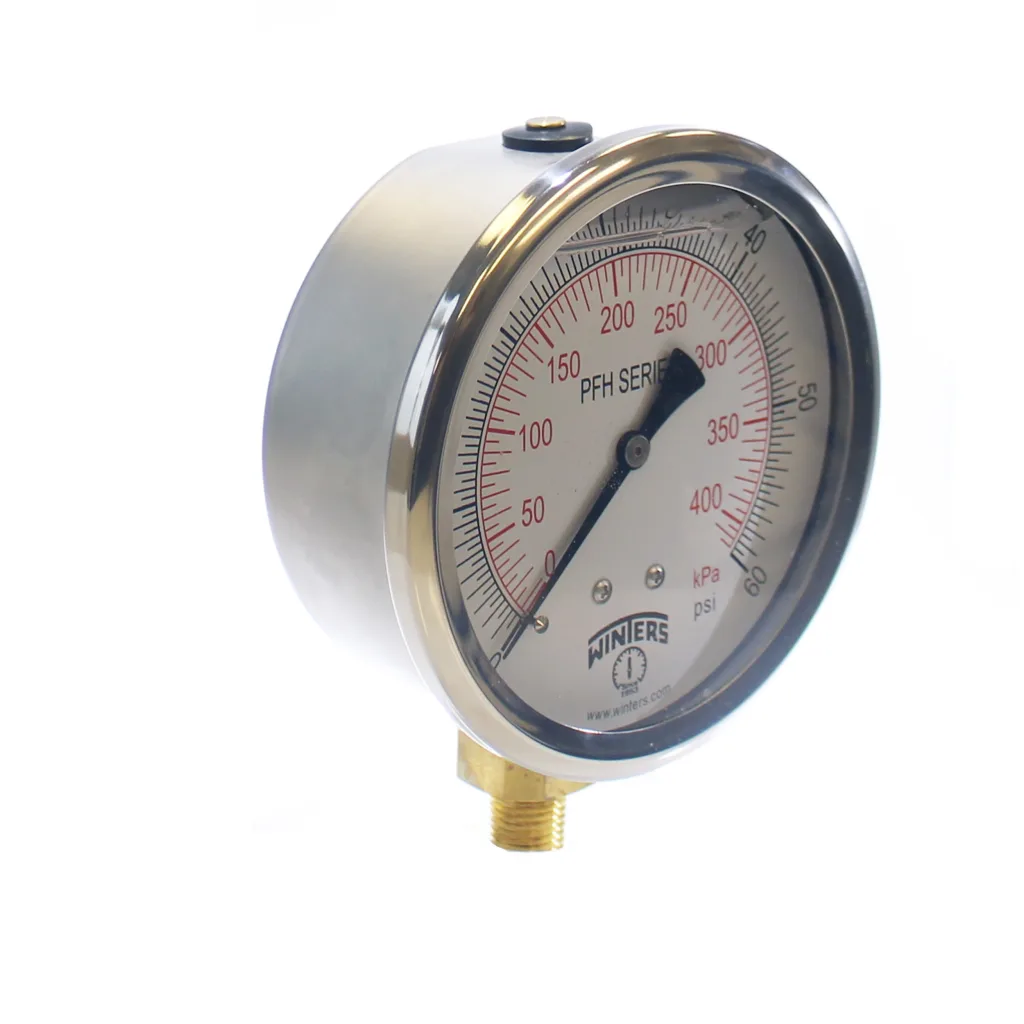

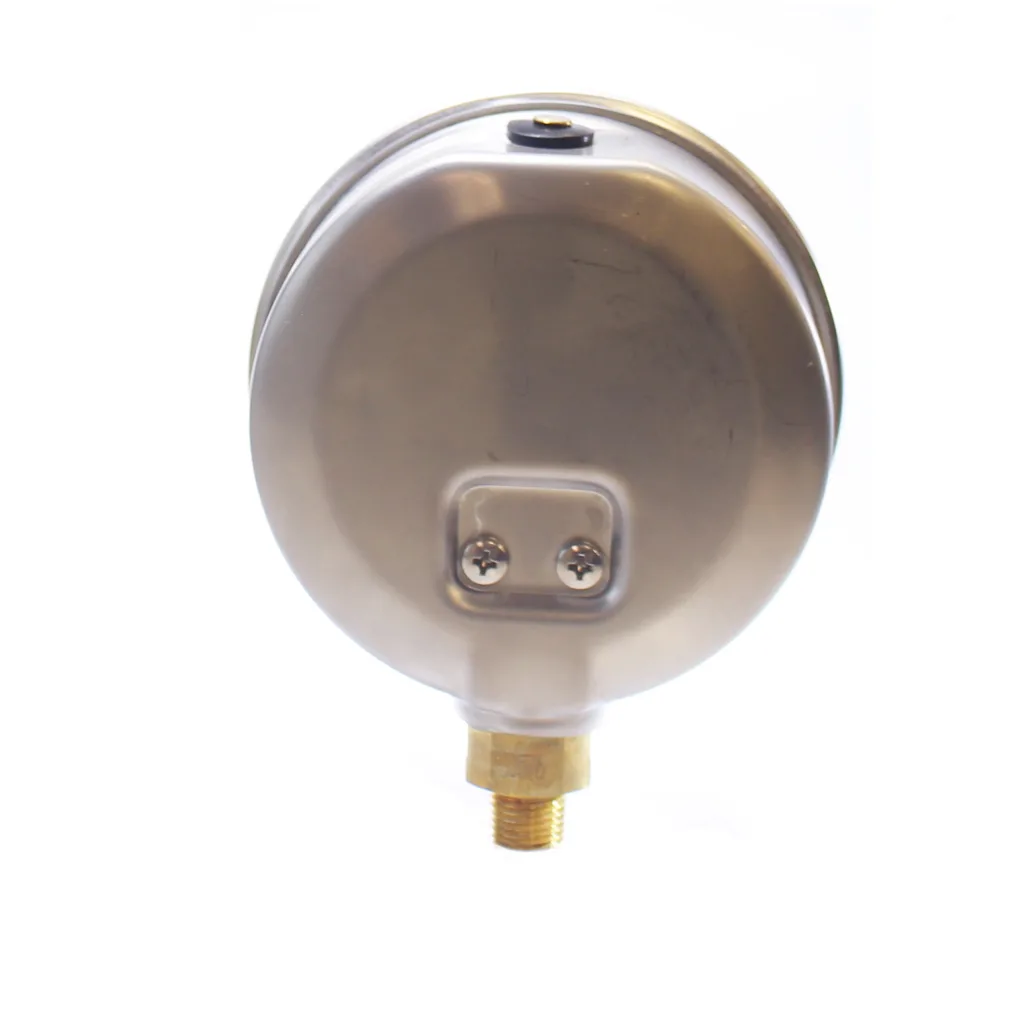

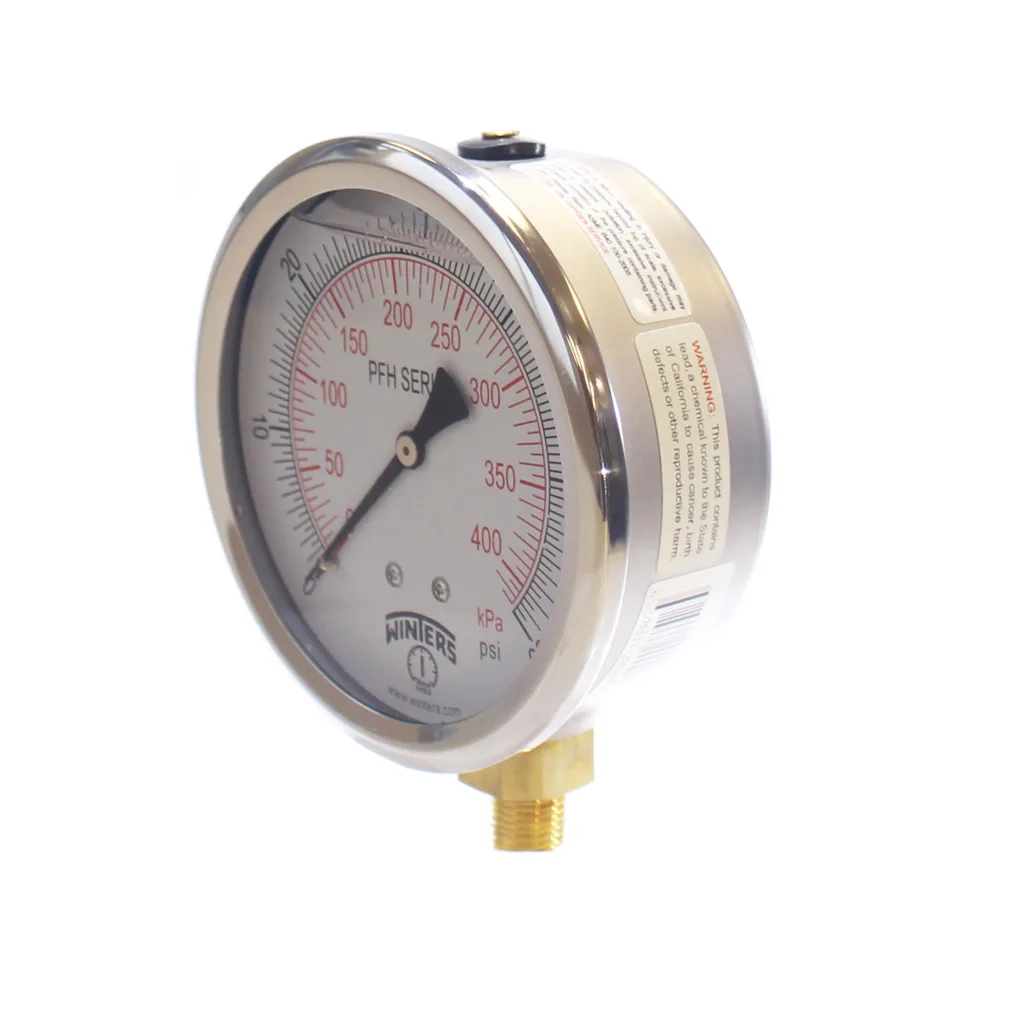

PFH hydraulic 不锈钢 充液 压力表
返回
型号：PFH
适用于 泵, compressors, hydraulic presses, 电力 packs 和 pneumatic 设备 在 工业 环境 带 extreme 振动 和 pulsation
适用于 泵, compressors, hydraulic presses, 电力 packs 和 pneumatic 设备 在 工业 环境 带 extreme 振动 和 pulsation
robust 结构 防护 以 extreme 振动 和 pulsation
通用 fill compatibility 用于 灵活性 的 filling 带 甘油 或 硅油
全部 黄铜 internals
engineered restricted orifice 可选 以 protect against 额外 压力 spikes
polished crimp-于 表圈
ventable fill 旋塞 用于 便捷 venting 的 表壳 压力
单 (psi) 或 双 刻度 (psi/kpa)/(psi/棒状) 可选
可选 u-clamps, 前部 和 背面 flanges
ASME B40.100 compliant (EN837-1 compliant)
CRN registered
5 年 质保
documentation:
选择 以 打开...2.5", 背面 连接, u-钳形, 黄铜
2.5", 背面 连接, u-钳形, SS
4", 底部 连接
4", lower 背面 连接
| Dial | 2.5" (63mm), 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | OT 58 brass |
| Connection | 1/4" or 1/2" NPT with restricted orifice (standard on dual scale, optional on psi only scale) |
| Fill Liquid | Glycerin standard (silicone and dry case optional) |
| Bourdon Tube | Phosphor bronze C or coil shaped socket |
| Movement | OT 59 brass |
| Pointer | Aluminum, anodized black |
| Welding | Silver alloy |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N |
| Fill Plug | Buna N, ventable with brass plunger |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C) Glycerin Filled: -4°F to 150°F (-20°C to 65°C) |
| Accuracy | ±1.5% of full scale value |
| Enclosure Rating | IP65 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
