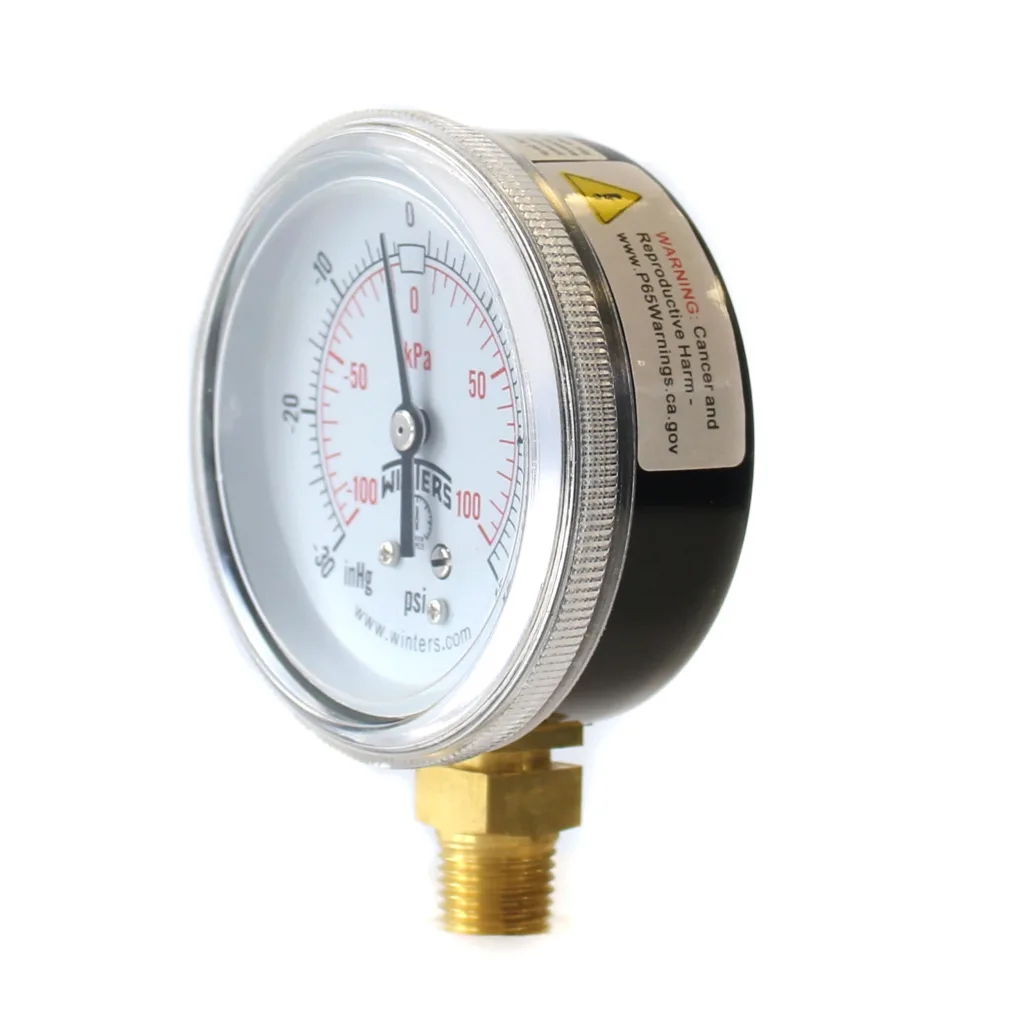

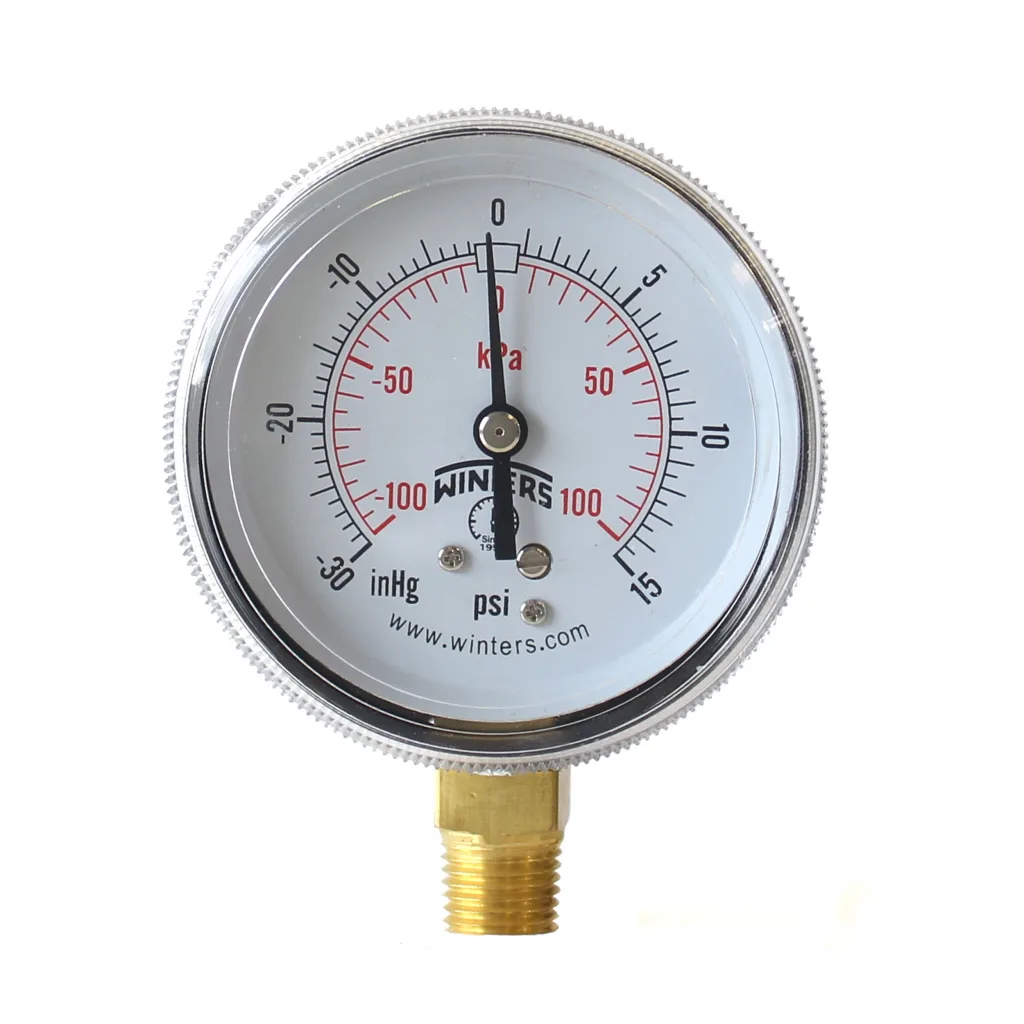

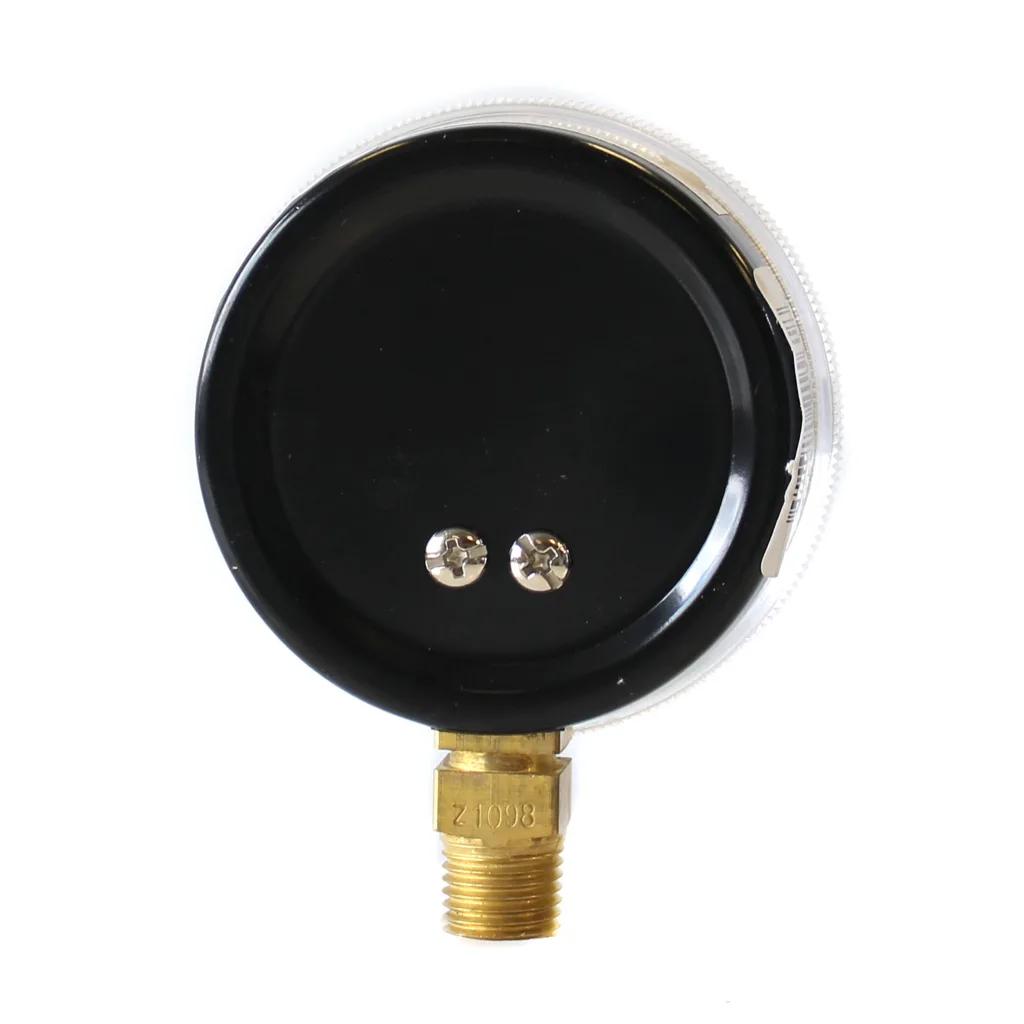

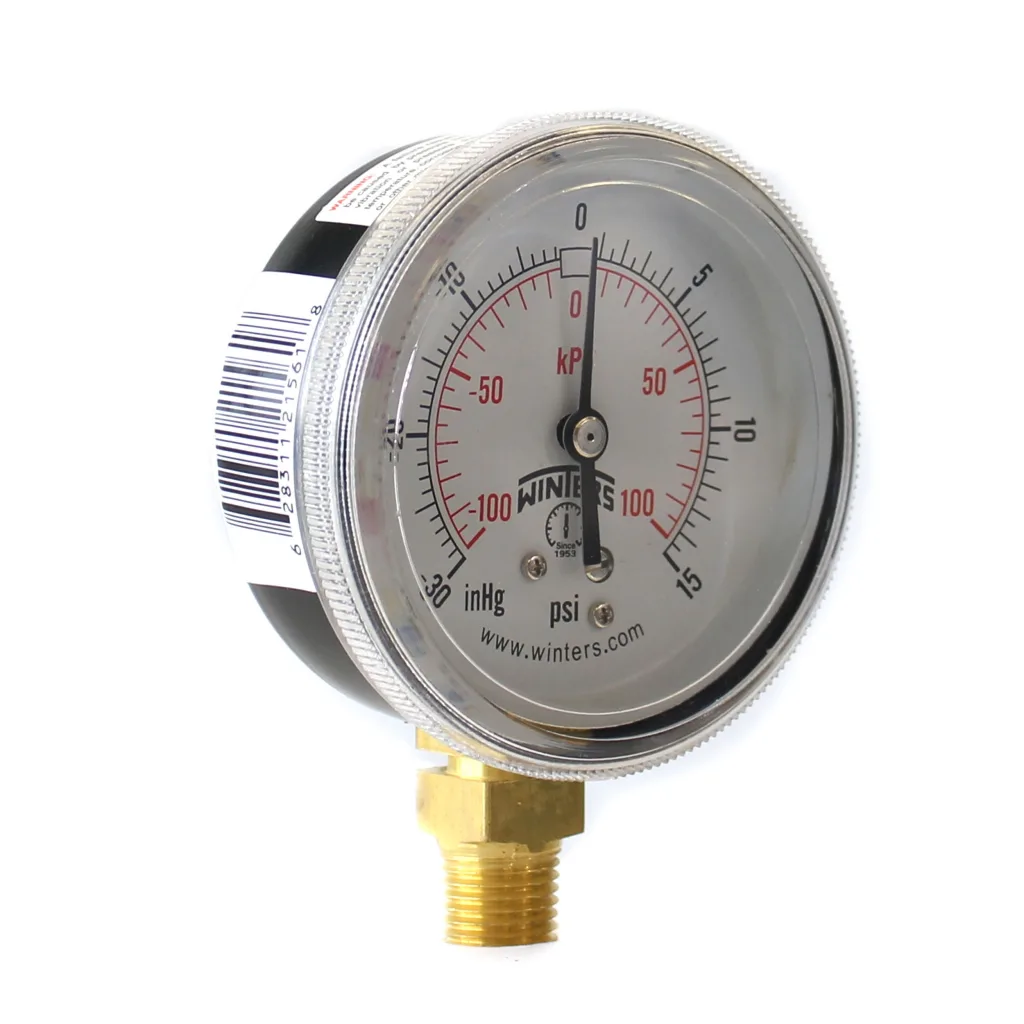

P9S 90 系列 压力表
返回
型号：P9S
compressors, 过滤器, 调压器, 水 泵, paint sprayers 和 多种 的 其他 rapid 压力 fluctuation 应用
compressors, 过滤器, 调压器, 水 泵, paint sprayers 和 多种 的 其他 rapid 压力 fluctuation 应用
general-用途 表压 该 为 serviceable 和 pulsation 防护
1.5″ (40mm) 以 3.5″ (90mm) 表盘 尺寸规格
dampened 表芯 combined 带 “flutterless” 指针
removable 表镜
零点-adjustment
ASME B40.100 compliant
CRN registered
±2-1-2% 精度
5 年 质保
| Dial | 1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm) white aluminum with black and red markings |
| Case | Steel, painted black |
| Lens | Acrylic, threaded |
| Socket | Brass |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass (flutterless) with zero adjustment |
| Pointer | Aluminum, black |
| Welding | <1,000 psi: 60% tin 40% lead, ≥1,000 psi: silver alloy |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±2-1-2% ANSI/ASME Grade A |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
