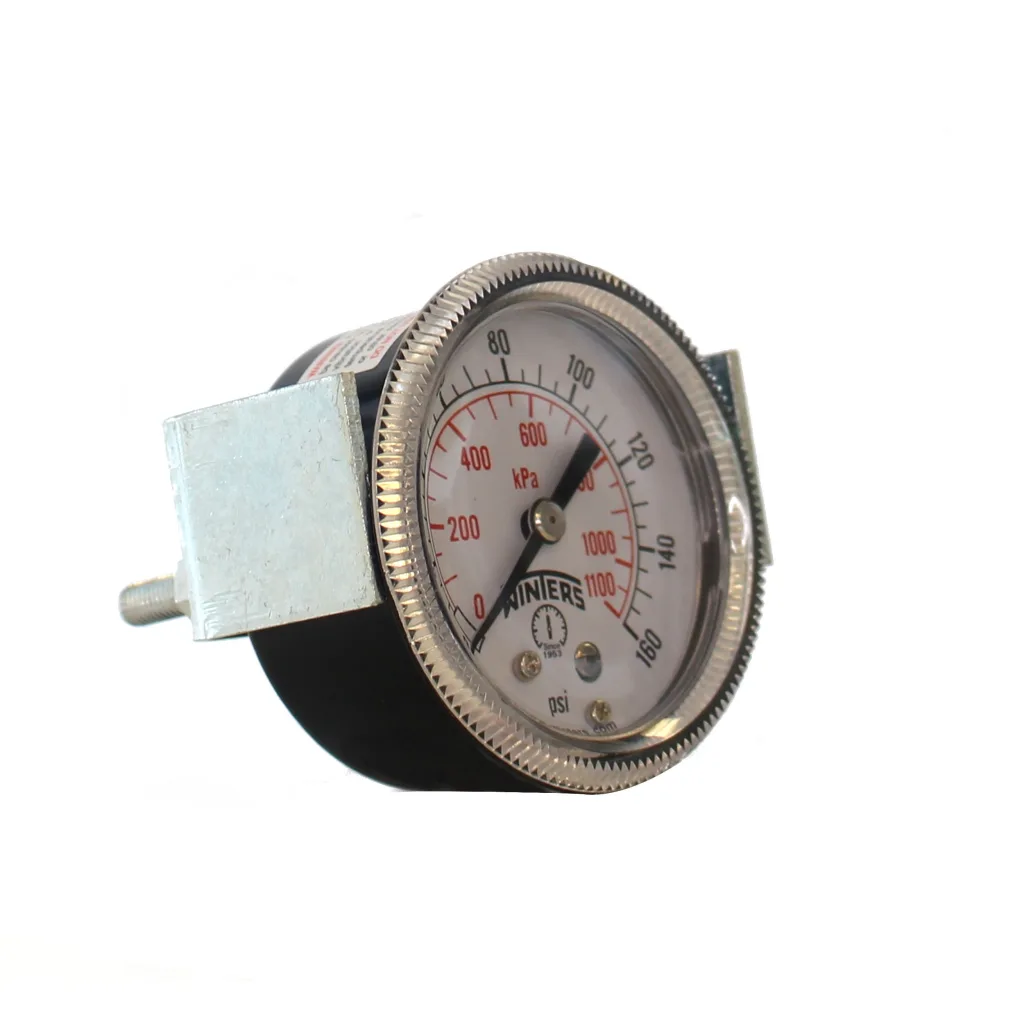

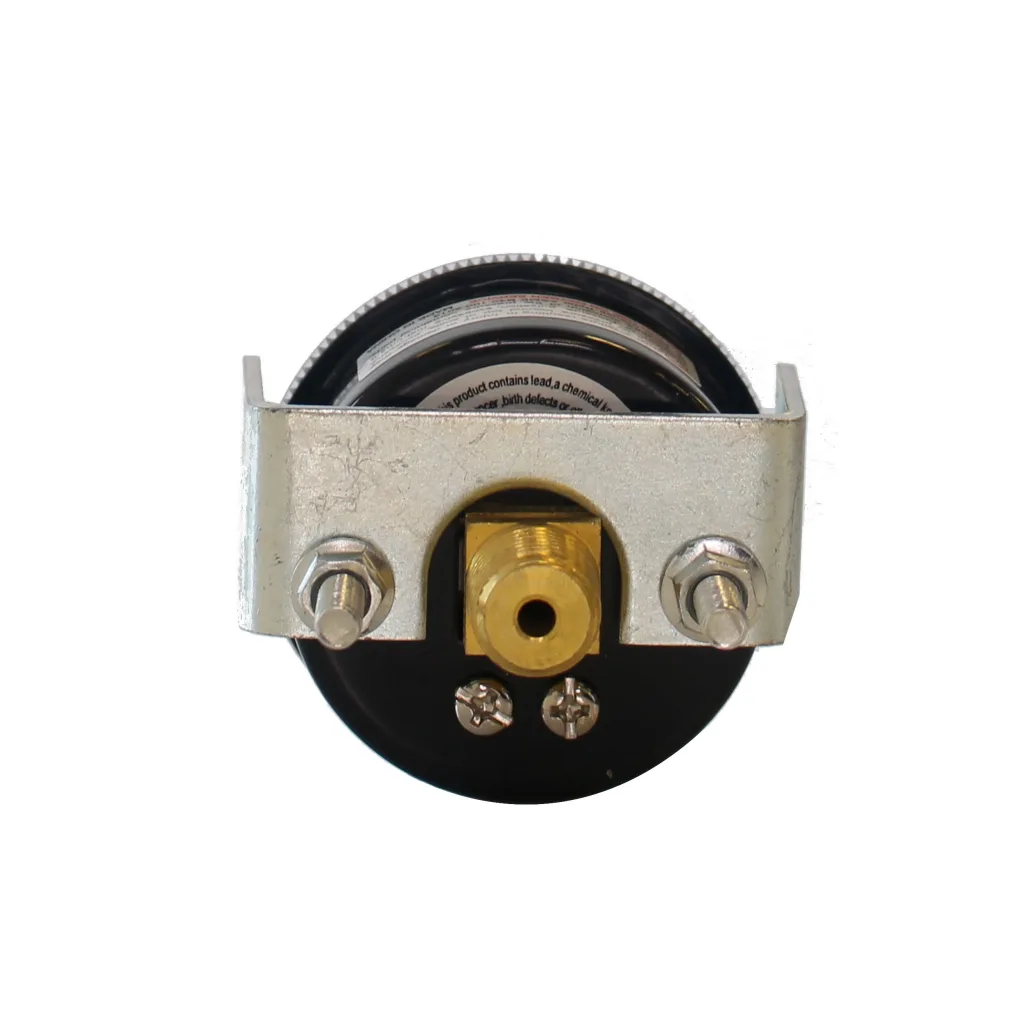

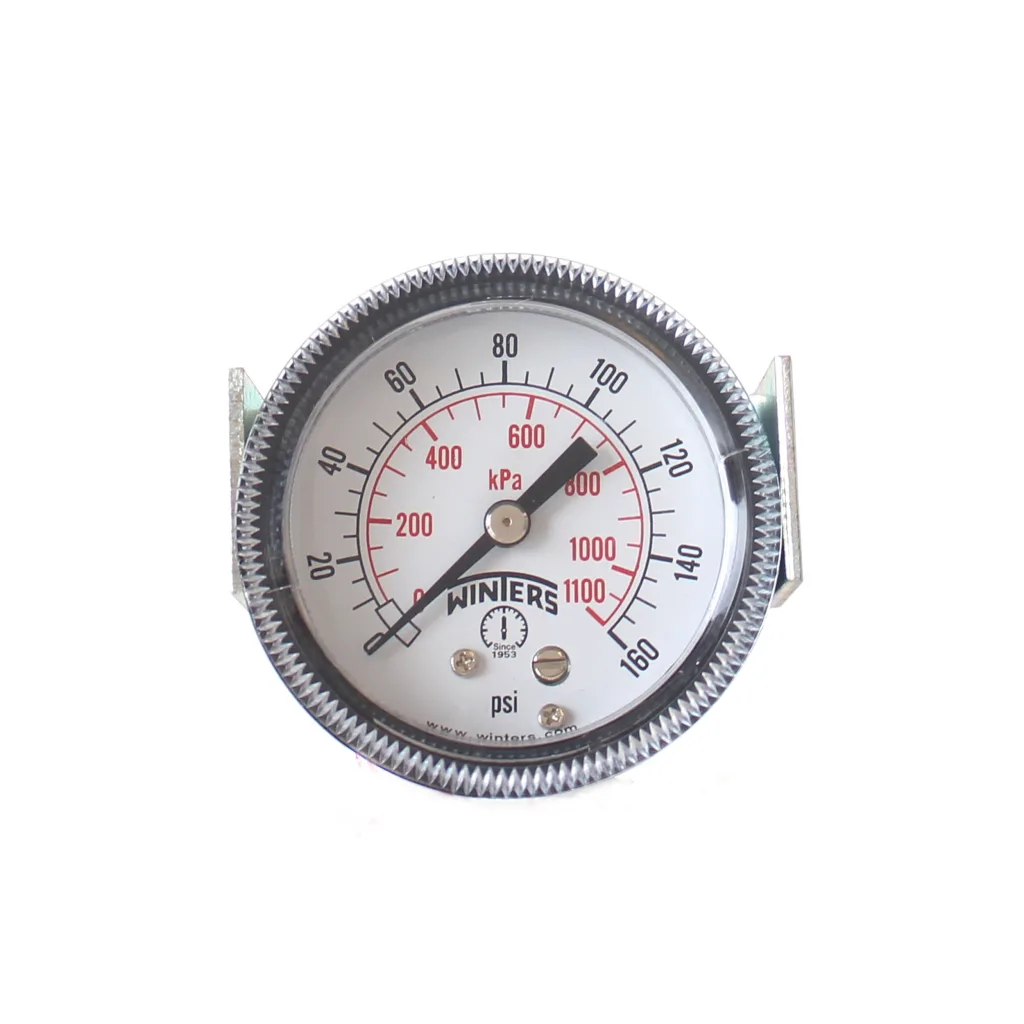

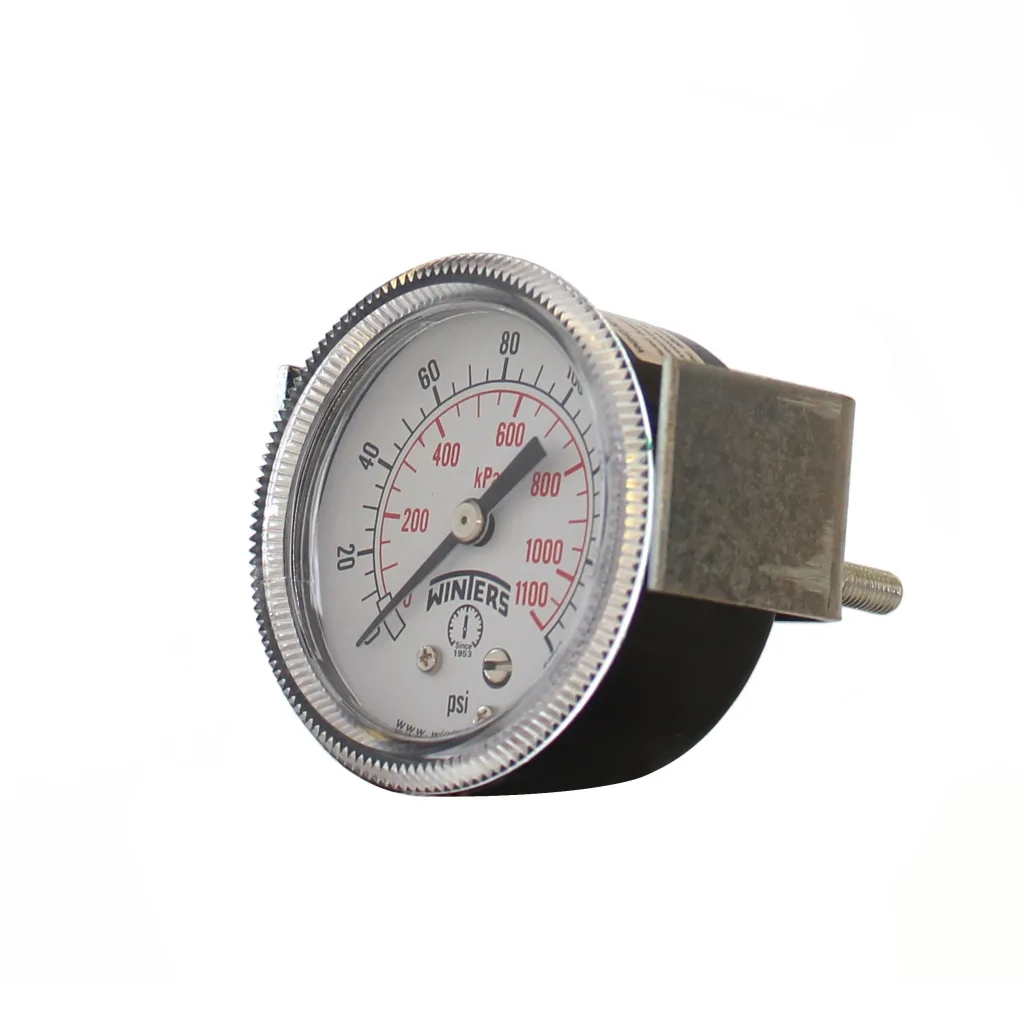

P9U 90 系列 面板 安装式 压力表
返回
型号：P9U
面板, compressor 设备, 水 和 油 泵, 其中 rapid 压力 fluctuations 或 系统 振动 require 稳定 指针
面板, compressor 设备, 水 和 油 泵, 其中 rapid 压力 fluctuations 或 系统 振动 require 稳定 指针
通用 面板 安装式 表压 带 1.5” (40mm) 以 3.5” (90mm) 表盘 尺寸规格
flutterless 指针
dampened 表芯
removable 表镜
零点-adjustment
±2-1-2% 精度
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm), white aluminum with black and red markings |
| Case | Steel, painted black |
| Lens | Acrylic, threaded |
| Socket | Brass |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass (flutterless movement) |
| Pointer | Aluminum, black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±2-1-2% ANSI/ASME Grade A |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
