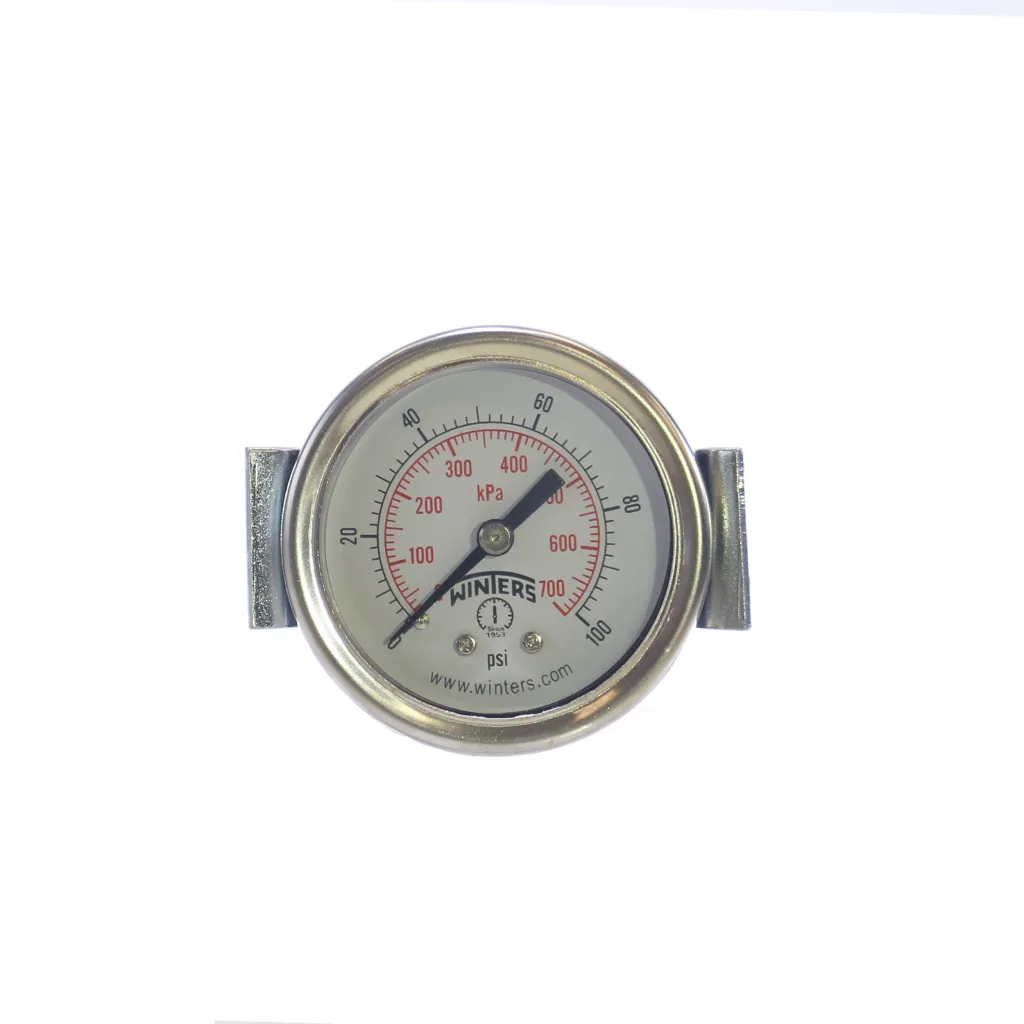

用于 测量 gases, air, 水 和 oils 当 设备 或 processes require 经济型 面板 安装式 表压
最 经济型 压力表 用于 面板
1.5” (40mm) 以 2.5” (63mm) 表盘 尺寸规格
黑色 钢 表壳
黄铜 wetted parts
不锈钢 crimp-于 表圈

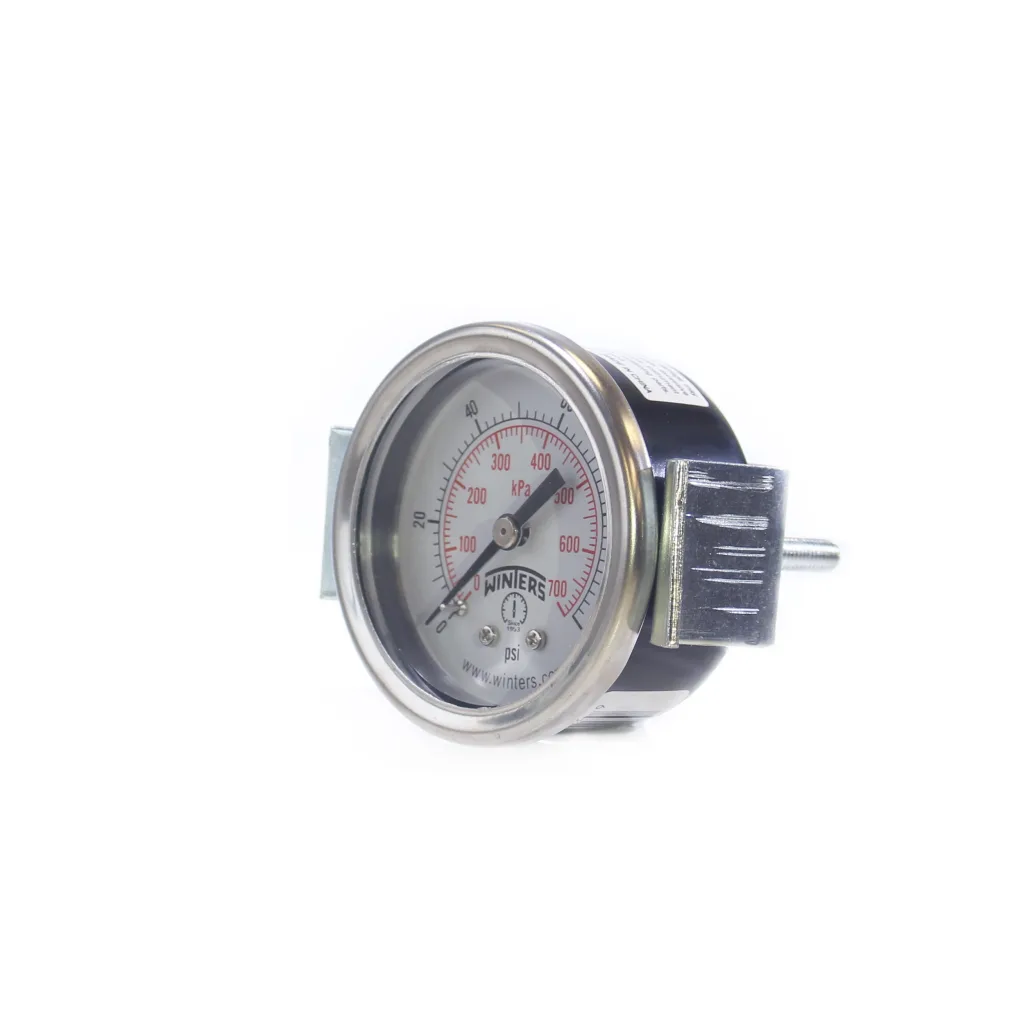

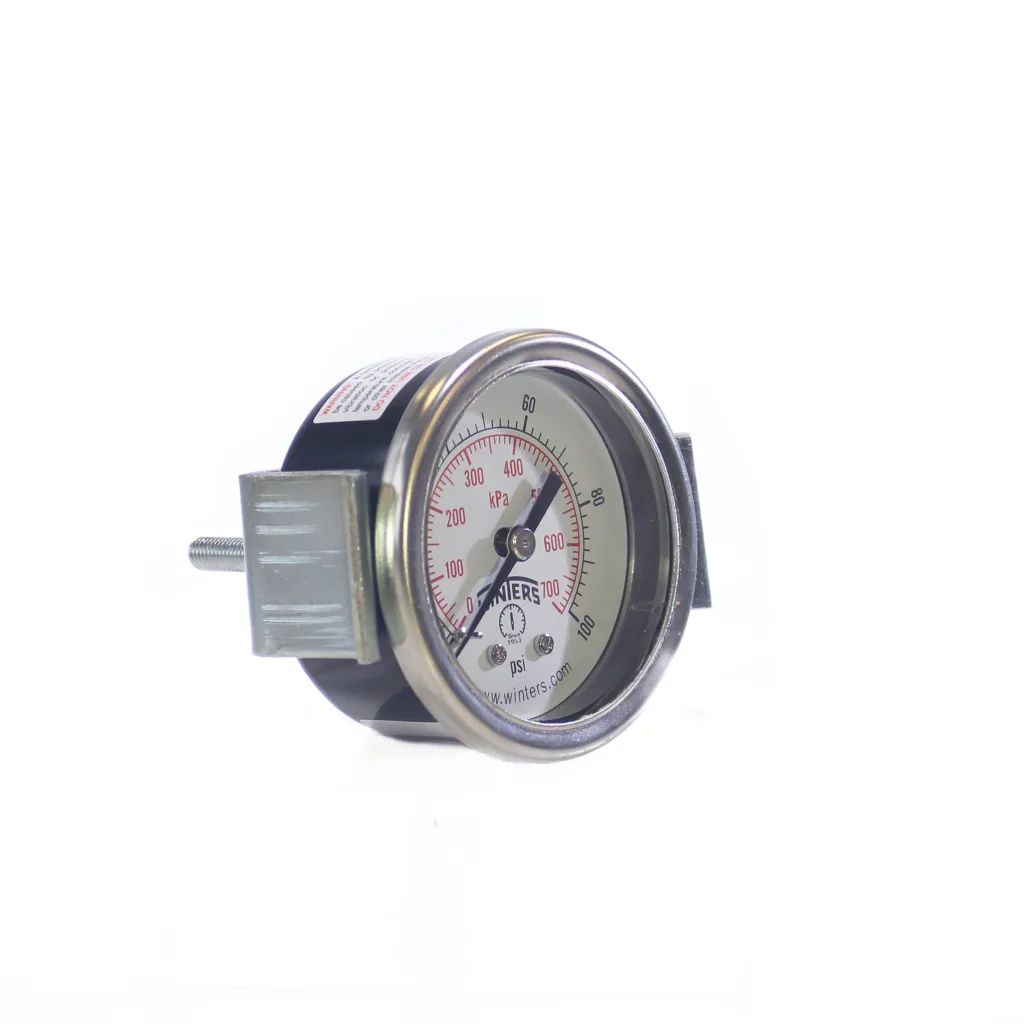

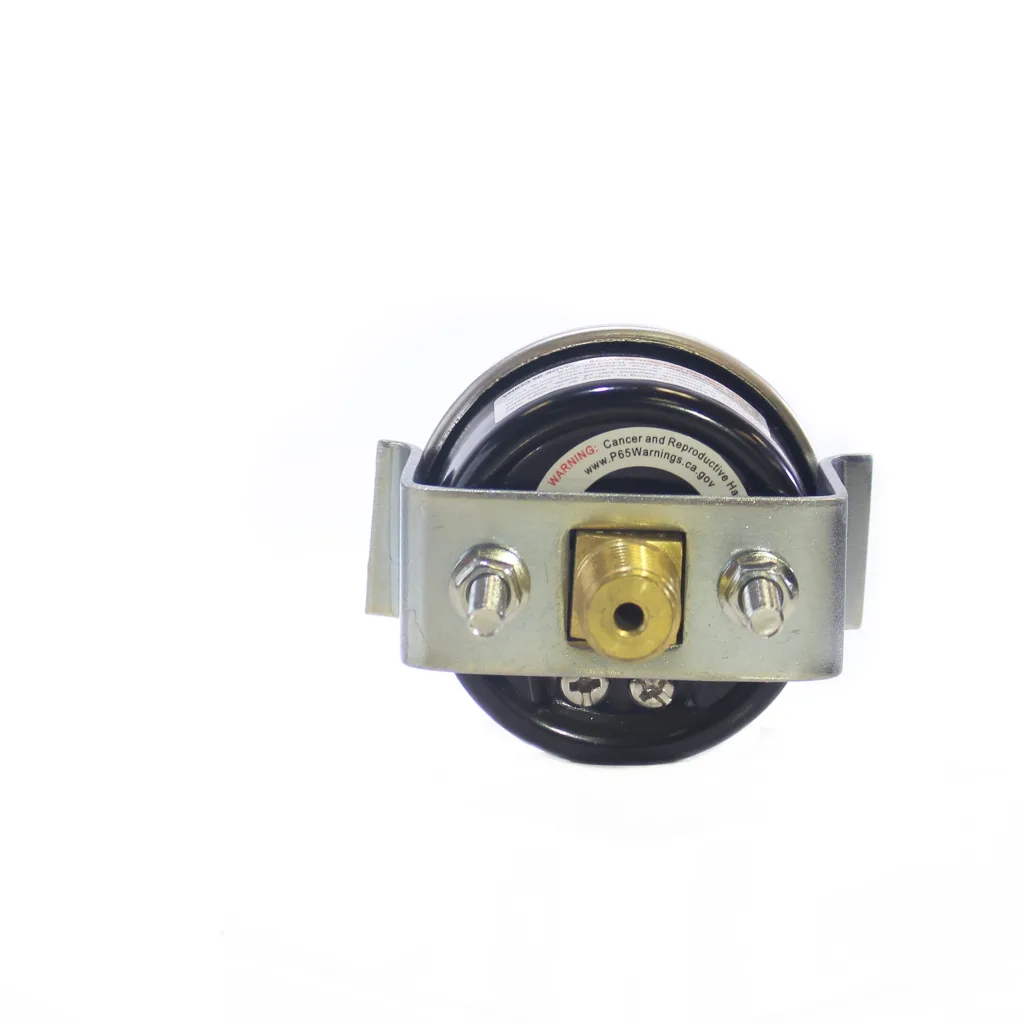

stud-式样 u-钳形 设计 用于 secure 面板 安装
±3-2-3% 精度
双 刻度 (psi/kpa)
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 1.5” (40mm), 2” (50mm), 2.5” (63mm) white aluminum with black and red markings |
| Case | Steel, painted black |
| Lens | Polycarbonate |
| Ring | SS |
| Socket | Brass |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
