residential 与 商用 压力 测试 的 气体, air 和 水 lines

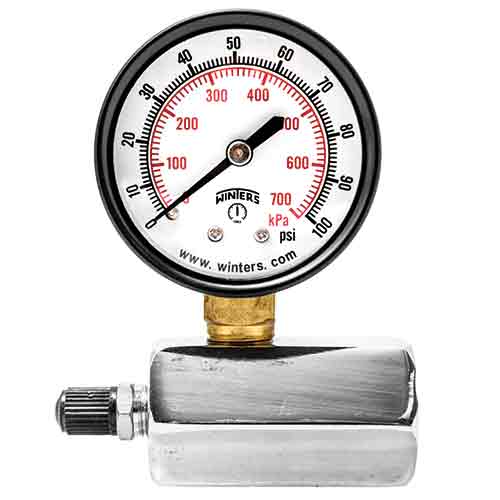

经济型 压力表 和 阀门 阀体 组件 用于 压力 测试
排放 port 和 plated 外壳 于 气体 测试 组件
swivel hose adaptor 于 水 测试压力表
黑色 钢 表壳
黄铜 或 无铅 黄铜 wetted parts
双 刻度 (psi/kpa)
±3-2-3% 精度
ASME B40.100 compliant
CRN registered
无铅 版本 NSF-61-372 已认证
5 年 质保
| Dial | 2" (50mm), 2.5" (63mm) white aluminum with black and red markings |
| Case | Steel painted black |
| Lens | PETG: Polycarbonate PETM, PETM-LF, PETW, PETW-LF: Acrylic |
| Ring | Steel, painted black |
| Bourdon Tube | PET: Phosphor bronze PET-LF: Lead free phosphor bronze, NSF-61-372 certified |
| Movement | PET: Brass PET-LF: Lead-Free brass, NSF-61-372 certified |
| Pointer | Aluminum, black |
| Connection | PETG: 3/4” NPTF PETM, PETM-LF, PETW, PETW-LF: 3/4” female swivel hose connection |
| Maximum Pointer | Available on Water Test Gauge only |
| Welding | #50 tin solder |
| Gas Test Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Water Test Ambient/Process Temperature | 32°F to 150°F (0°C to 65°C) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
