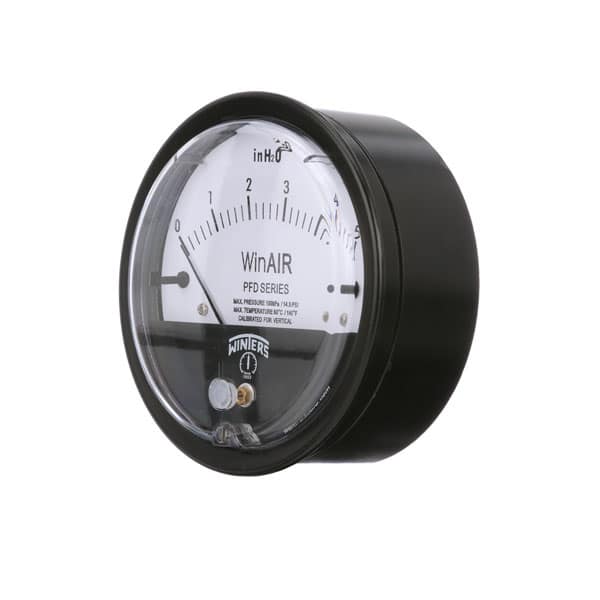

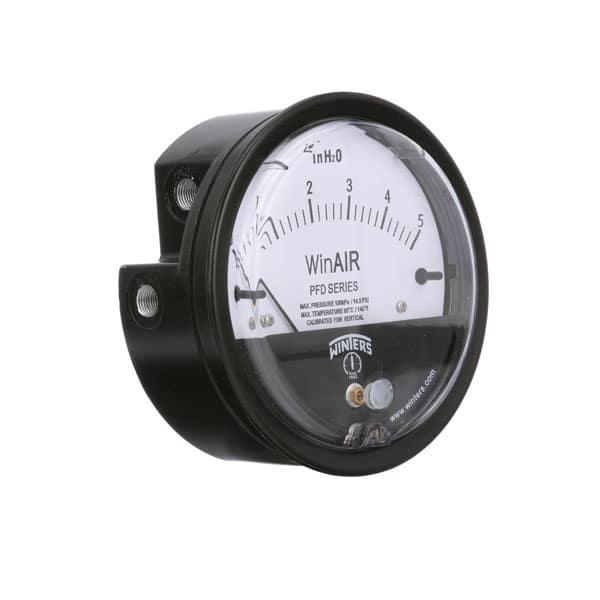

PFD WinAIR 差压表
返回
型号：PFD
低压 和 差压 监测 用于 air 和 non-combustible
gases 包括 过滤器, blowers, vacuums, air handlers 和 clean rooms
低压 和 差压 监测 用于 air 和 non-combustible
gases 包括 过滤器, blowers, vacuums, air handlers 和 clean rooms
电阻-无 差压 表压 用于 全部 air 和 non-corrosive 气体 装置
工业 grade die-cast 铝 表壳
extreme 温度 tolerance 带 o-卡圈 密封
轻松 accessible re-零点 adjustment 螺钉
2% 全 刻度 精度*
3 安装 adapters 带 screws 包含, 其他 安装 附件 还 可选
5 年 质保
| Dial | 4" (100mm), white aluminum with black markings |
| Case | Die-cast black aluminum |
| Lens | Polycarbonate lens with UV Protection |
| Ring | Threaded die-cast black aluminum |
| Connection | 1/8" NPTF high & low pressure taps, side & back |
| Movement | Resistance-free and magnetic |
| Pointer | Aluminum, anodized black |
| Over-pressure Limit | Maximum pressure of 14.5 psi / 100 kPa |
| Ambient / Process Temperature | -40°F to 140°F (-40°C to 60°C) 14°F to 140°F (-10°C to 60°C) |
| Accuracy | ±2% of full scale value (unless otherwise noted) |
| Enclosure Rating | IP67 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Note: PFD to only be mounted in a vertical position |
