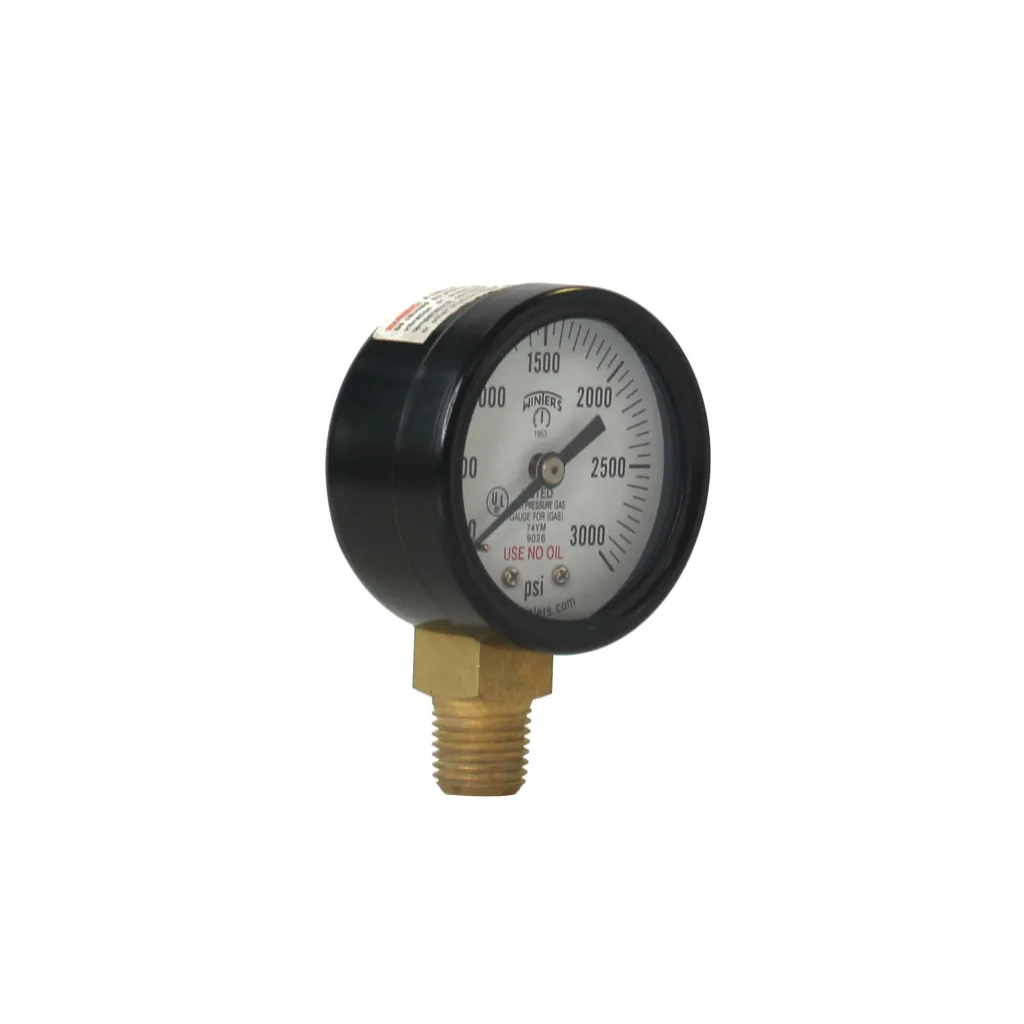

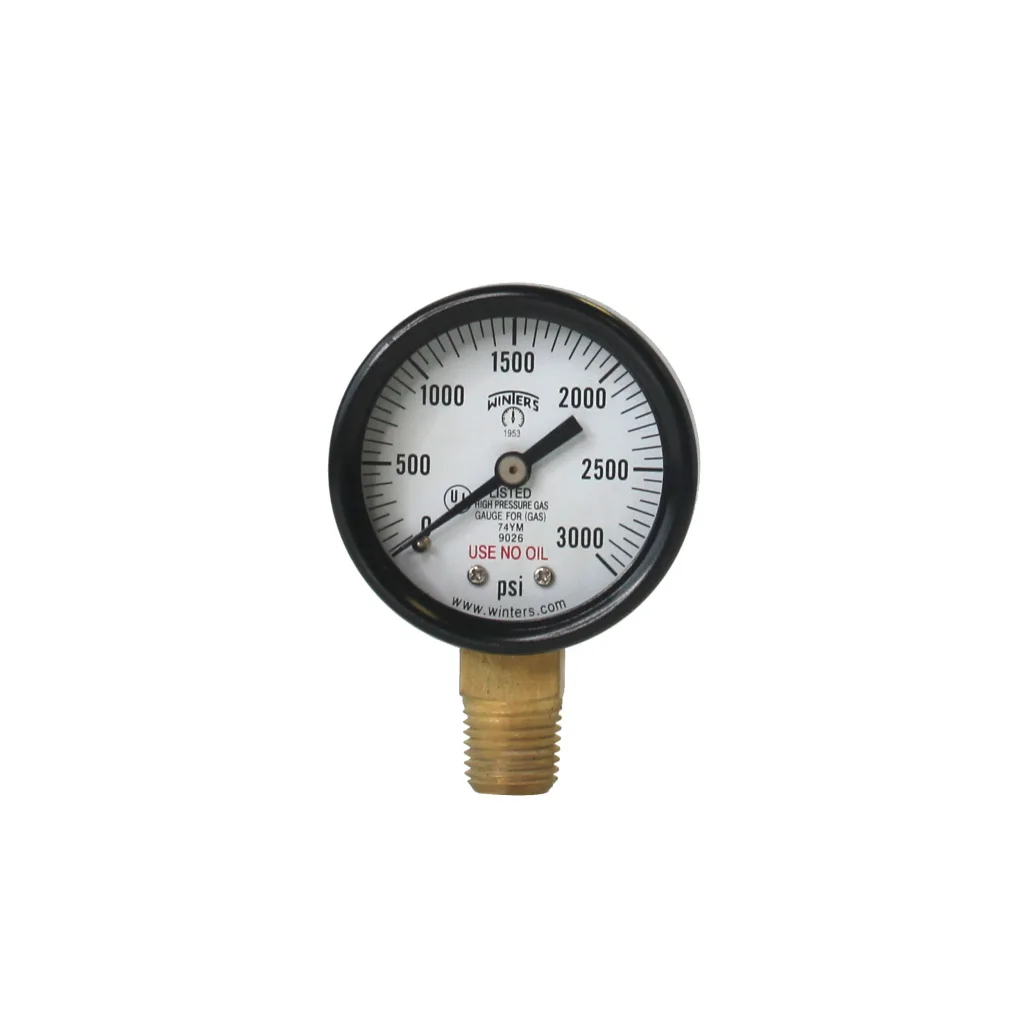

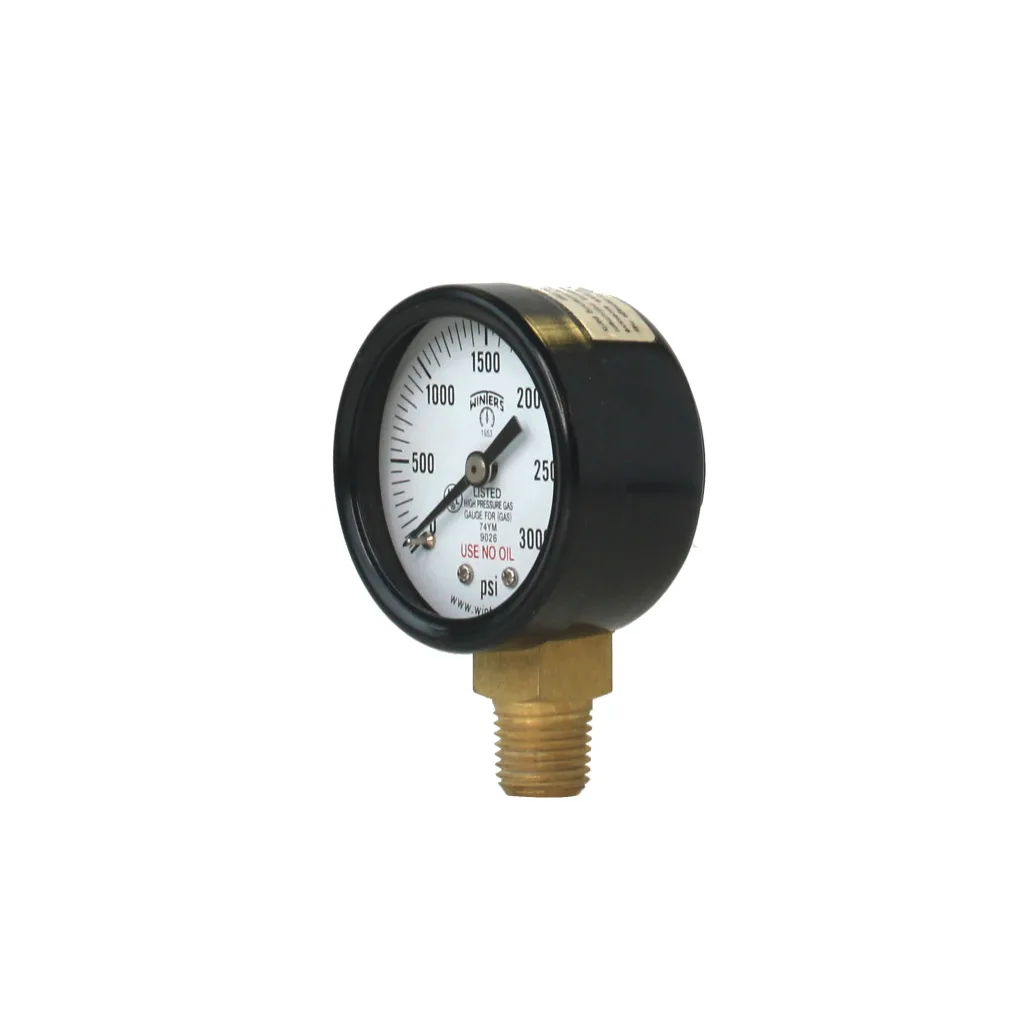

型号：PCG
beverage 分配, 调压器 和 储罐. 低 pressures 是 应用 于 向下 stream 侧 的 调压器. 高 pressures 是 用于 测量 cylinder 气体 或 储罐 pressures
beverage 分配, 调压器 和 储罐. 低 pressures 是 应用 于 向下 stream 侧 的 调压器. 高 pressures 是 用于 测量 cylinder 气体 或 储罐 pressures
经济型 2” (50mm) 表压 带 内置 安全 特性
安全 blowout 背面 钢 表壳
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 1.5” (40mm), 2” (50mm) |
| Case | Steel with blowout back, painted black |
| Lens | Acrylic |
| Ring | Steel, painted black |
| Socket | Brass |
| Connection | 1/8” NPT or 1/4” NPT, bottom or back |
| Bourdon Tube | Brass |
| Movement | Brass |
| Pointer | Aluminum, painted black |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
