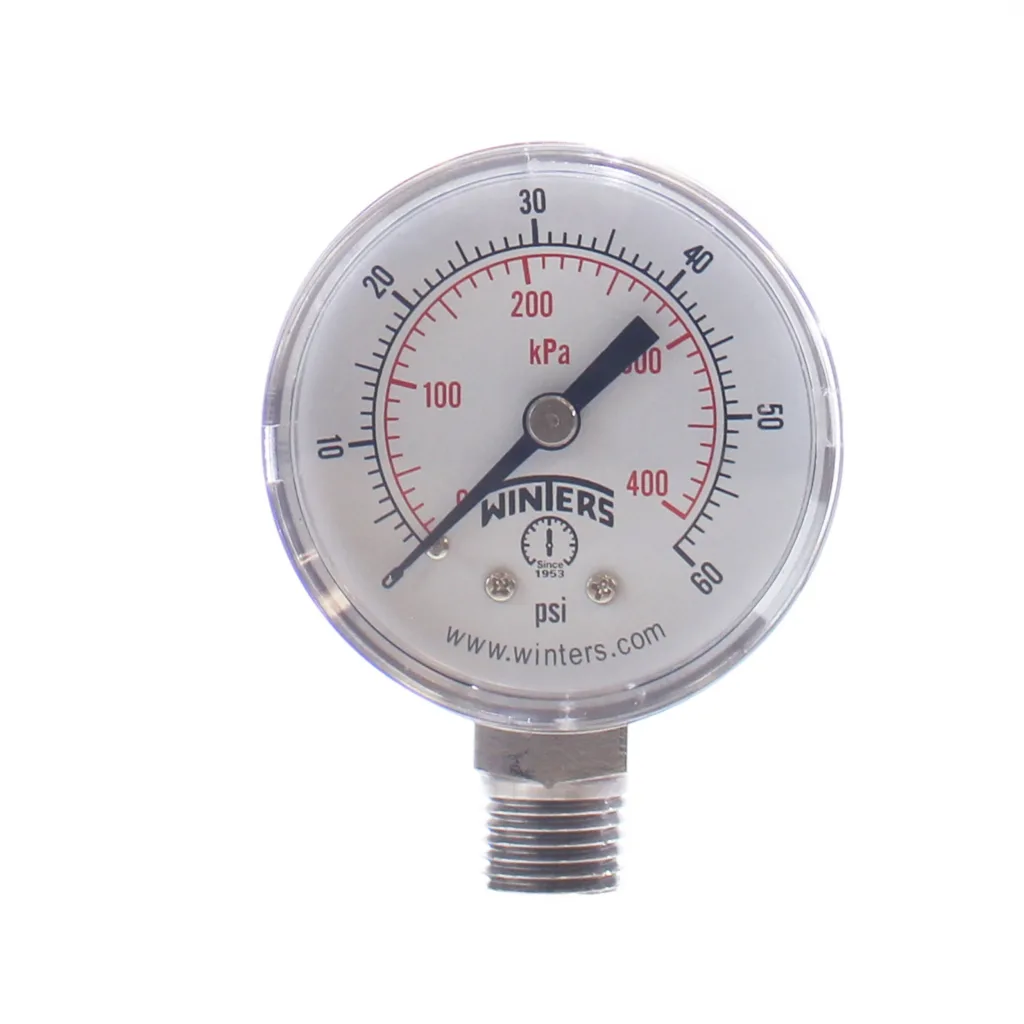

调压器, 阀门 positioners 和 actuators 该 require 可靠 和 corrosion-防护 压力表
小型 直径, 全部 不锈钢 表压
1.5” (40mm) 和 2” (50mm) dials
全 查看 snap-在 表镜
背面 和 底部 连接
ASME B40.100 compliant
RoHS compliant
CRN registered
5 年 质保
| Dial | 1.5” (40mm), 2” (50mm) white aluminum with black and red markings |
| Case | 304 SS |
| Lens | Acrylic, snap-in type |
| Socket | 316 SS |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | 316 SS |
| Movement | 304 SS |
| Pointer | Aluminum, painted black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±2.5% of full scale |
| Enclosure Rating | IP52 |
