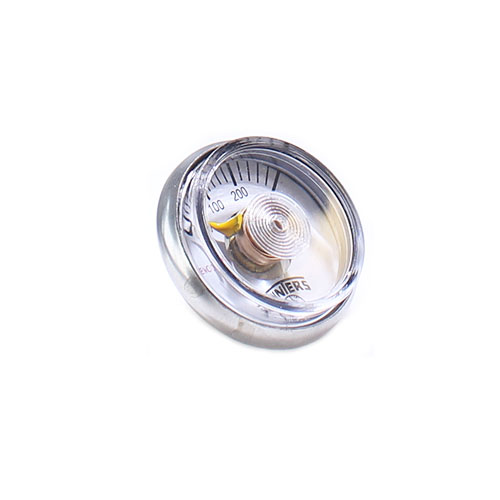

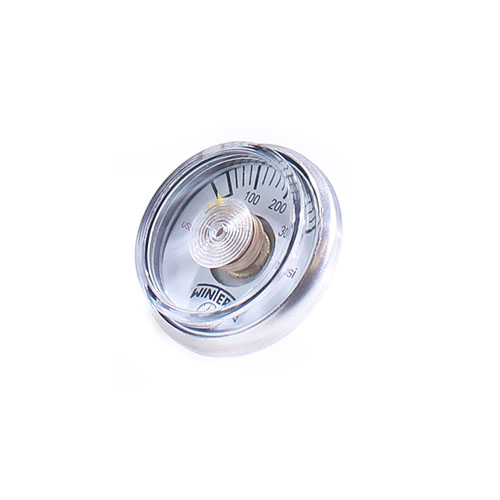

PSP 高-VOLUME OEM 配套 SPIRAL TUBE 压力表
返回
型号：PSP
commonly 应用 于 便携式 pneumatic 设备 如 compressors, hand-held sprayers, pressurized recreational guns, oxygen 储罐 和 调压器, 泵 和 fire extinguishers
commonly 应用 于 便携式 pneumatic 设备 如 compressors, hand-held sprayers, pressurized recreational guns, oxygen 储罐 和 调压器, 泵 和 fire extinguishers
可靠, 小型 直径, 低 profile 表压
1” (25mm) 以 1.5” (40mm) 尺寸规格

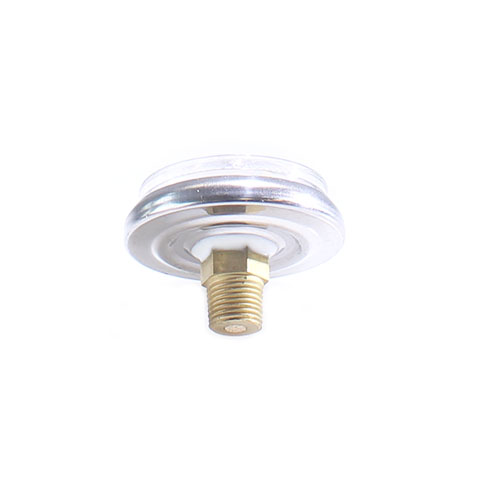

1/8” NPT 插座
直通 驱动器 (no linkages 或 hairsprings) eliminating premature failure 来自 gear 和 表芯
安全 超过-压力 port 于 表镜
“使用 no 油” 用于 使用 在 oxygen service
ASME B40.100 compliant
CRN registered
UL listed 用于 1.25” 和 1.5” 表
5 年 质保
| Dial | 1” (25mm), 1 1/8” (30mm), 1.25” (32mm) or 1.5” (40mm) white aluminum with black markings |
| Case | 1” (25mm:) Nickel plated brass Others: 304 SS |
| Lens | Plexiglass |
| Spiral/Socket | 60 to 2,000 psi: Brass 3,000 psi and above: 304 SS |
| Connection | 1/8” NPT standard, back |
| Pointer | 2,000 psi and below: Brass 3,000 psi and above: 304 SS |
| Over-pressure Limit | 10% of full scale value 25% fo full scale value (0-3,000 psi, UL404 listed) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
| Warning (brass internals only) |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
