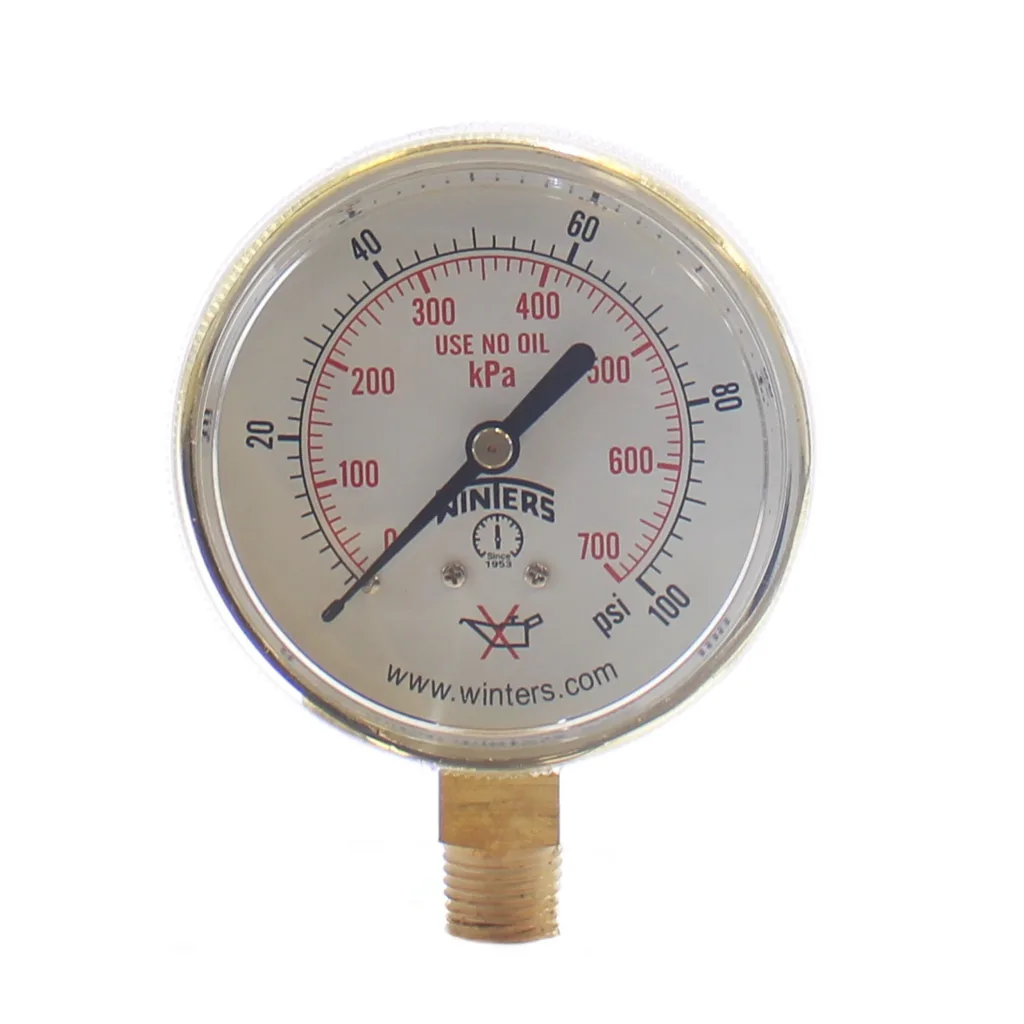

PWL welding 表压
返回
型号：PWL
welding 储罐 调压器 或 阀组, beverage 分配 调压器 和 其他 pressurized 储罐|应用 于 向下 stream 侧 的 调压器 和 高 pressures 是 UL listed 用于 测量 cylinder gases
welding 储罐 调压器 或 阀组, beverage 分配 调压器 和 其他 pressurized 储罐|应用 于 向下 stream 侧 的 调压器 和 高 pressures 是 UL listed 用于 测量 cylinder gases
经济型, non-sparking 黄铜 表壳 表压
1.5” (40mm), 2” (50mm) 和 2.5” (63mm) 黄铜 表壳
UL listing 于 4,000 psi 量程
“USE NO 油” 于 表盘
黄铜 插座
螺纹-于 聚碳酸酯 表镜
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 1.5" (40mm), 2” (50mm), 2.5” (63mm) white aluminum with black and red markings |
| Case | Brass, polished |
| Lens | Polycarbonate, threaded |
| Socket | Brass |
| Connection | 1.5" (40mm): 1/8" NPT bottom, 2" (50mm), 2.5" (63mm): 1/4” NPT bottom |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, painted black |
| Welding | Silver alloy |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
