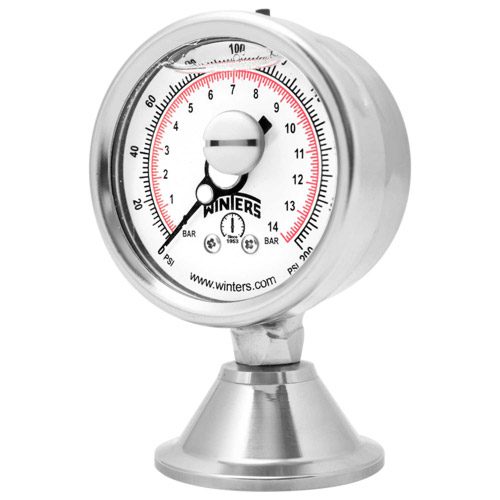

PAG 3A pharmaceutical, FOOD, beverage 与 乳业 卫生型 表压
返回
型号：PAG
打造 以 withstand harshest 的 卫生型 应用 和 其中 3A approval 为 所需
打造 以 withstand harshest 的 卫生型 应用 和 其中 3A approval 为 所需
设计 用于 food, beverage 与 乳业 和 pharmaceutical 应用
±0.75% 全 刻度 精度
food grade 甘油 filling 标准
re-零点 特性 标准
crack/breakage-防护 聚碳酸酯 表镜 标准
clean-在-位置 设计
steam-在-位置 设计
autoclavable
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 2.5” (63mm), 4” (100mm) aluminum |
| Case | 304 SS, polished |
| Repeatability | 0.25% of full scale |
| Linearity | 0.25% of full scale |
| Lens | 3/16" thick polycarbonate |
| Over-range Capability | 50% of full scale |
| Hysteresis | 0.25% of full scale |
| CIP Temperature Limit | 250°F (121°C) continuous |
| SIP Temperature Limit | 300°F (149°C) 1 hour, dry |
| Bourdon Tube | 316L SS, welded |
| Socket | 316L SS, welded |
| Storage Temperature | -22°F to 195°F (-30°C to 91°C) |
| Temperature Effect | Less than 0.16% per 10°F (5.5°C) change in process or ambient temperature |
| Actuating Fill | Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional) |
| Case Fluid | Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional) |
| Pulsation Dampening | Standard |
| Re-zero Feature | Externally adjustable micrometer pointer |
| Wetted Parts | 316L SS, Ra = 8 microinches |
| Bezel | 304 SS, polished |
| Ambient Temperature | 40°F to 140°F (4°C to 60°C) |
| Process Temperature | 0°F to 250°F (-18°C to 121°C) |
| Accuracy | ±0.75% of full scale value |
