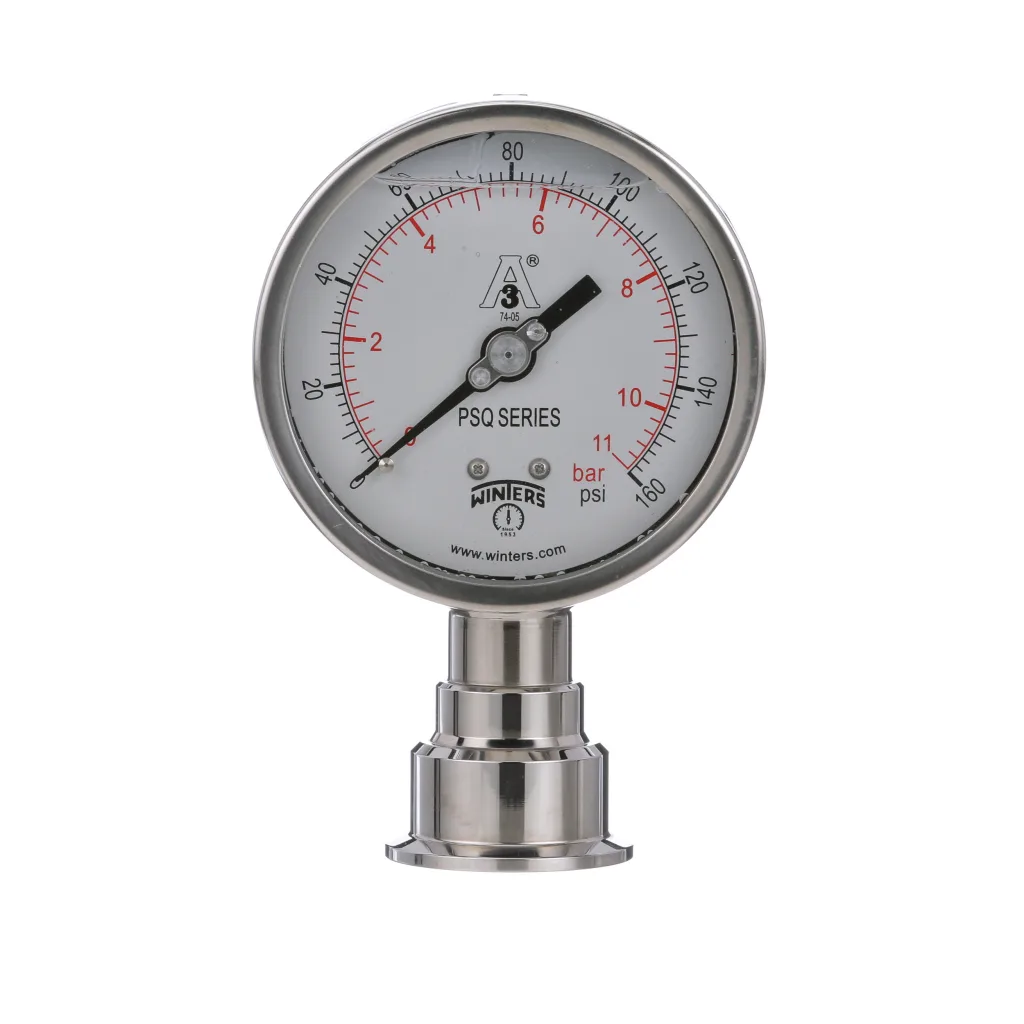

打造 以 withstand 全部 卫生型 应用 其中 3A approval 为 所需 包括 food, beverage 和 乳业 装置
质量 系列 用于 全部 卫生型 表压 系统
food grade 甘油 filling 标准
electro-polish finish
工业 grade 聚碳酸酯 表镜 标准
clean-在-位置 和 steam-在-位置 设计
0.75”, 1.5” 和 2” tri-钳形® 连接 底部 和 背面
ASME B40.100 compliant
CRN registered
5 年 质保
| Dial | 2.5" (63mm), 4" (100mm) aluminum |
| Case | 304 SS, polished |
| Bezel | 304 SS, polished |
| Lens | Polycarbonate |
| Connection | 0.75", 1.5" or 2" Tri-Clamp® |
| Over Pressure Limit | 25% up to 600 psi (41 bar), 15% over 600 psi (41 bar) |
| CIP Temperature Limit | 250°F (121°C) continuous |
| SIP Temperature Limit | 266°F (130°C) 1 hour, dry |
| Bourdon Tube | 316 SS |
| Socket | 316 SS |
| Movement | 304 SS |
| Enclosure Rating | IP65/NEMA 4X |
| System Fill | Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional) |
| Case Fill | Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional) |
| Re-zero Feature | Adjustable micrometer pointer (4" dial only) |
| Wetted Parts | 316L SS, Ra=8 microinches |
| Ambient Temperature | Glycerin filled: 40°F to 150°F (4°C to 65°C) |
| Process Temperature | 0°F to 250°F (-18°C to 121°C) |
| Accuracy | 2.5" (63mm): ±1.5% of full scale 4" (100mm): ±1.0% of full scale |
| Agency Compliance | 3A standard 74-07 |
