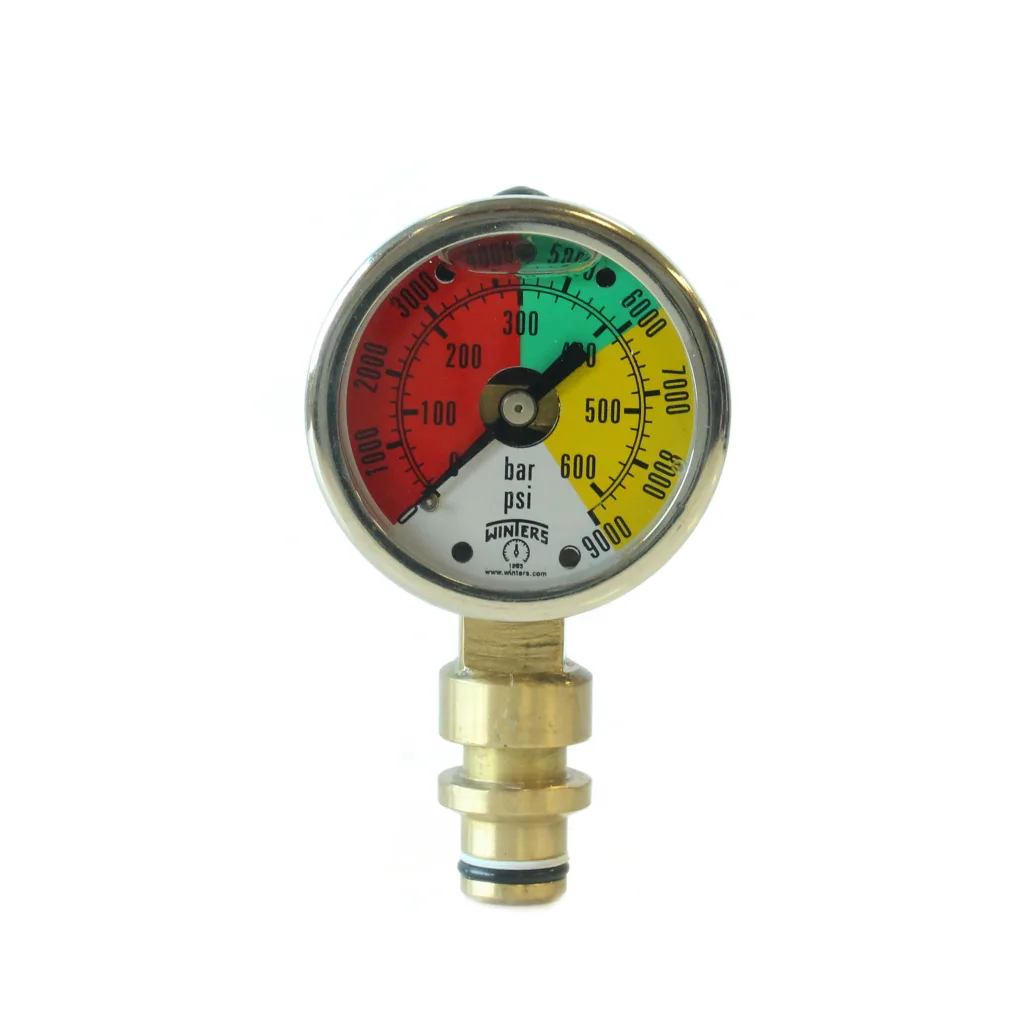

hydraulic shoring commonly 用于 长 壁挂 mining
坚固, 2” (50mm) forged 黄铜 表壳 和 连接
forged 黄铜 表壳 和 插座
甘油 充液
3/8” steck-o 连接
3 coloured zone 表盘 用于 easier 压力 读数
0-9,000 psi/棒状
ASME B40.100 compliant
5 年 质保
| Dial | 2” (50mm): White aluminum, black lettering, triple colour scale (red, green, yellow) |
| Case | One-piece forged brass case |
| Wetted parts | Brass |
| Fill Liquid | Glycerin standard |
| Lens | Polycarbonate |
| Connection | 3/8” Steck-O connection, quick connect with 90 Durometer Buna N sealing o-ring and PTFE washer (bottom connection) |
| Pointer | Aluminum, anodized black |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 70% of full scale value |
| Ambient/ProcessTemperature | -4°F to 150°F (-20°C to 65°C) glycerin-filled-40°F to 150°F (-40°C to 65°C) dry |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. Form more information go to www.P65Warnings.ca.gov. |
