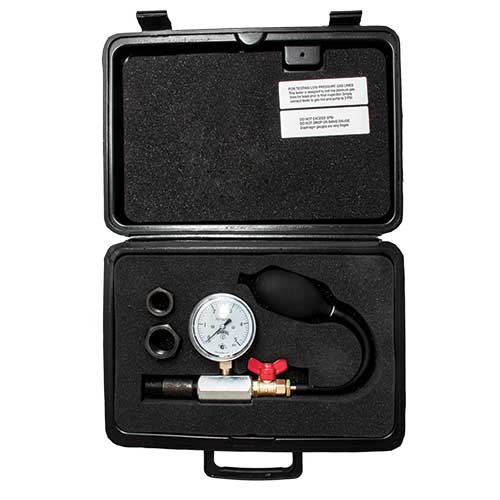

便携式 泄漏 和 loss 的 压力 检测 设备 用于 气体 lines
低 压力表 套件 在 protective blow molded 表壳
re-零点 带 外部 recalibration 螺钉
塑料 blow molded 表壳 用于 added durability
sleek 设计 具备 secure latch
泵 和 fittings 用于 simplified 和 快速 连接
ASME B40.100 compliant
CRN registered
5 年 质保
SPECIFICATIONS - GAUGE | |
| Dial | 2.5" (63mm), white aluminum with red and black markings |
| Case/Ring | Steel, painted black |
| Lens | Polycarbonate snap in |
| Connection | Rubber hand pump with hose and mini ball valve with handle and 1/2" NPTF x 1/4" NPTF test block and 1/2"NPTM x 1/2" NPTM nipple, 1/2" NPTF x 3/4" NPTM adapter and 3/4" NPTF x 1" NPTM adapter |
| Movement | Engineered plastic upper and lower plate with brass pinion and sector |
| Pointer | Aluminum, anodized black |
| Ambient Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Case | Plastic blow molded (11.875" x 18") |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. Form more information go to www.P65Warnings.gov. |
SPECIFICATIONS - CASE & ACCESSORIES | |
| Hand Pump and Hose | 10" rubber hose with hand pump |
| Mini Ball Valve | SMV series valve with forged brass body 1/4" NPTF x 1/4" NPTM |
| Test Block | Chrome plated steel |
| Accessories | Pressure fitting with easy to install clamp |
| Nipple | Carbon steel 1/2" NPTM |
| Fittings | Carbon steel 1/2" NPTF x 3/4" NPTM and 3/4" NPTF x 1" NPTM |
| Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. Form more information go to www.P65Warnings.ca.gov. |
