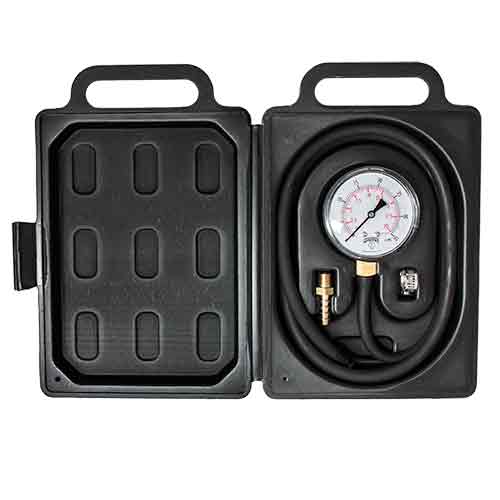

测试套件 用于 低压 气体 装置
低 压力表 打造 到 protective 表壳 用于 ease 在 使用 和 durability
sensitive 隔膜压力表 提供 3 压力 量程
re-零点 带 外部 recalibration 螺钉
easier 以 使用 比 manometer
塑料 blow molded 表壳 用于 added durability
sleek 设计 具备 secure latch
facilitates 安全 handling
ASME B40.100 compliant
CRN registered
5 年 质保
Specifications - Gauge | |
| Dial | 2.5" (63mm), white aluminum dial with red and black markings |
| Case/Ring | Steel, painted black |
| Lens | Polycarbonate |
| Connection | Brass hose barb (1/4”) (gear clamp included) |
| Diaphragm Element | Phosphor bronze |
| Movement | Engineering plastic upper and lower plate with brass pinion and sector, with zero adjustment |
| Ambient Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.gov. |
Specifications - Case | |
| Tube Nipple | Rubber: 0.256” (6.5mm) ID x 0.472” (12mm) OD x 1.339” (34mm) 1/4" NPTM x 1/4" hose barb |
| Case Material | Plastic blow molded: 5.75” x 7.56” (146mm x 192mm) |
| Hose Tube | Rubber: 3’ (91cm) in length; 0.197” (5mm) ID x 0.315” (8mm) OD |
| Accessory | Easy to install clamp |
| Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
