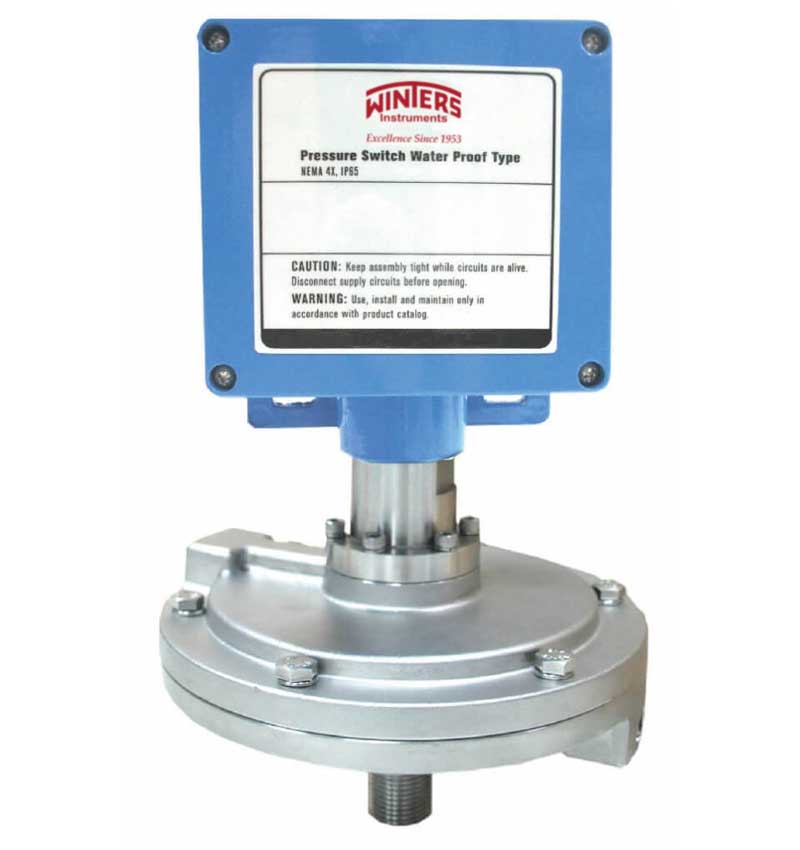

适用 用于 差压 压力 应用 包括 过滤器 监测 和 控制
低压 以 300 psi
高 电流 ratings 用于 1 x SPDT 或 2 x SPDT 开关
fixed 死区
压铸 铝 结构 带 welded 密封
1% 精度
NEMA 4 与 4X, IP66 额定
RU 认证 (开关 仅), fi le no E12252
CRN pending
| Housing | Heavy-duty die-cast aluminum, blue colour |
| Accuracy | +/- 1% of the adjustable set-point range |
| Pressure Connection | Female 1/4" NPT or BSP |
| Electrical Connection | Female 1/2" or 3/4" NPT, M20xP1.5 |
| Wetted Parts |
Low pressure ranges - 316 Stainless Steel welded & Titanium High pressure ranges - 316 Stainless Steel welded |
| Set Point Adjustment | Field selectable |
| Deadband | Fixed see Order Codes |
| Contact Rating |
15A @ 125/250VAC 0.4A @ 125VDC 3A @ 30VDC Gold contact microswitch: 1A @ 125/250VAC |
| No. of Contacts | 1 x SPDT or 2 x SPDT |
| Ambient/Process Temperature |
-30 to 205 deg C (-22 to 400 deg F) |
| Enclosure Rating |
NEMA 4 & 4X, IP66 Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion |
| Approvals |
RU recognized, file no E12252 (switch only) CRN registration pending |
| Weight | 4.95 lbs (2.25 kg) |
