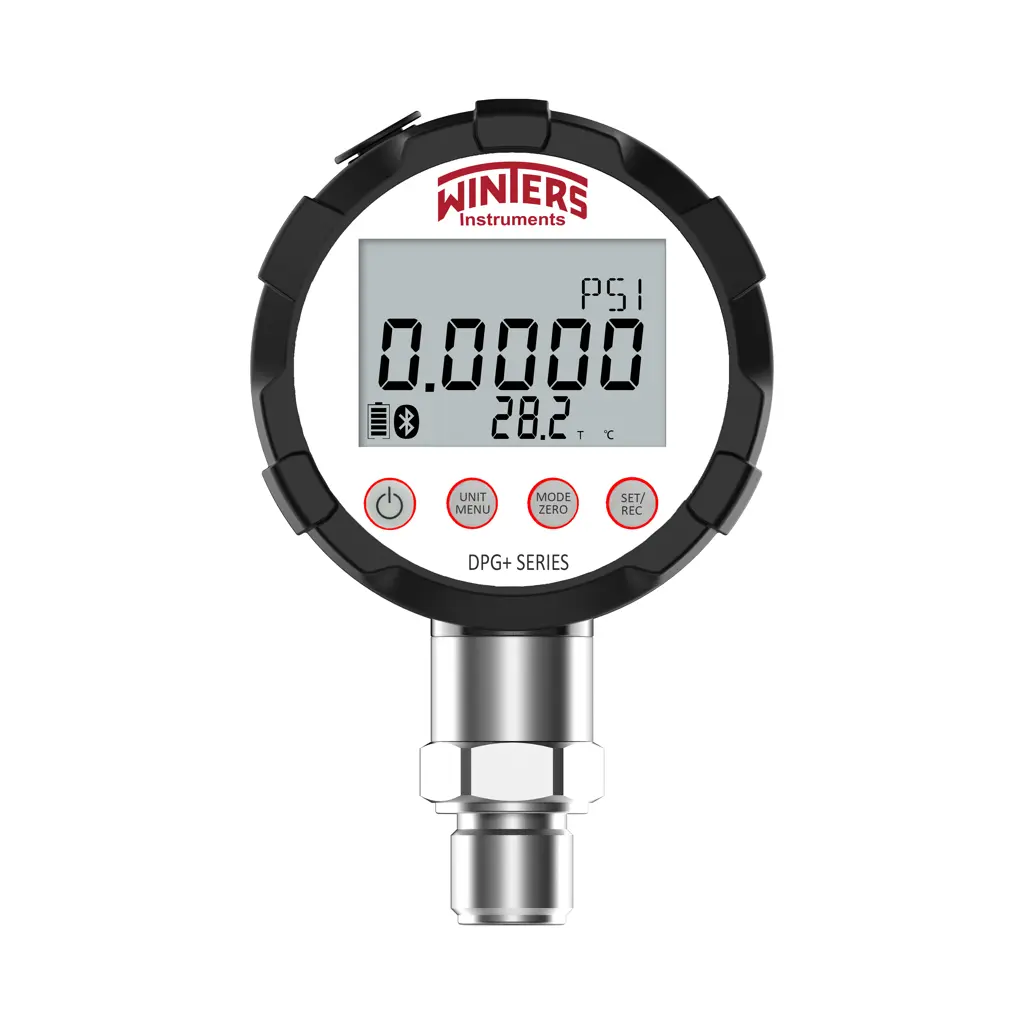

DPG 另有 高 精密 数字 压力表
返回
型号：DPG
设计 以 be 用于 校准 和 测试 的 压力 instrumentsin workshops, repair facilities, laboratories 或 在 现场
设计 以 be 用于 校准 和 测试 的 压力 instrumentsin workshops, repair facilities, laboratories 或 在 现场
sophisticated, 高度 精确, 数字 压力表
蓝牙 功能 用于 datalogging, 包括 exporting 功能
可选 量程 来自 极 低压 up 以 15,000 psi (1,000 棒状)
温度传感器 包含 以 record ambient 温度
0.1% 标准 精度, 可选 ±0.05%,& 0.2% accuracies 可选
IP65 用于 完整 防护 against dust 和 水
完整 直观 orientation 带 330-degree 表盘 rotation
供电 通过 3 x AAA 电池, 带 更多 比 1 年 的 运行 寿命
5-年 质保
| Case | 3.3” (85mm) with 330 degree rotation |
| Case Material | Cast Zinc with protective silicone rubber boot |
| Accuracy | 0.1% standard accuracy, optional ±0.05%,& 0.2% accuracies available |
| Long Term Stability | Better than 0.05% FS per year |
| LCD Display | Large 2" x 1 3/8" (51mm x 36mm) with integrated backlight |
| Communication | Integrated Bluetooth for pairing between DPG Plus and mobile App |
| Mobile Application (iOS & Android) | App functionality includes monitoring, recording (data logging) and exporting of data |
| Connection | 1/4" NPT, 1/2" NPT, G1/4, G1/2, M12x1.5, bottom (lower mount) connection only |
| Power Supply | 3 x AAA Batteries or USB powered |
| Battery Life | The 3 x AAA Batteries, with ultra-low power consumption design, will provide a maximum battery life of more than 1 year |
| Power Mode | Automatic or manual shut-off (Automatic = if the unit is not sensing continuous pressure or being programmed) |
| Electrical Protection | Electromagnetic interference design |
| Display Units | 6 digits plus Percentage Bar, Number of Recordings, Pressure Unit, Pressure Value, Battery Power, Bluetooth Symbol, Temperature Value, Maximum Pressure Reading |
| Key Functions | Power ON/OFF, Backlight, Clear / Re-zero, Unit Switching, Maximum Pressure Reading, Temperature Display, Data Recording, Expert / Factory Mode |
| Operating Temperature | -5ºC to 40ºC / 23ºF to 104ºF |
| Pressure Unit Selection | 12 engineered units available: PSI, inHG, inH2O, inWC, atm, torr, BAR, mBAR, mH2O, mPa, kgf, Pa |
| Response Time | 1 to 10 times per second |
| Overload Pressure | 200% ≤ 1,450 psi and 150% > 1,450 psi |
| Wetted Parts | 304SS |
| Enclosure Rating | IP65 |
| Product Accessories | Durable case with protective foam insulation, USB cable |
