MBA 系列表座适配器为各类表计安装与 CANDURA 电力监测仪（PQPro™ 或 EnergyPro）之间提供简单安全的连接方式。

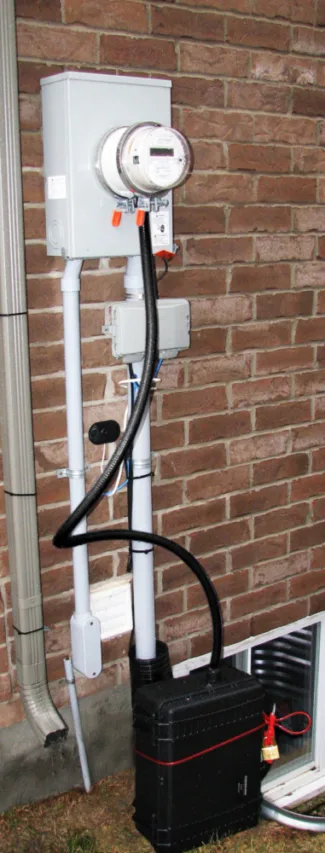

MBA 系列 计 base adaptor 提供 简易 和 secured 方法 以 连接 varieties 的 计量 装置 带 candura 功率 监测仪 (pqpro™ 或 EnergyPro). 此 实现 investigation 的 PQ-related client complaints, 智能 计 kwhr verification, 电能 audits 和 系统 studies. 便捷 装置 – 带 功率 监测仪 套装 up 在 advance – install, 启动 记录, secure 您的 机箱外壳, 和 go!
| Component | Description |
|---|---|
| Meter Base Extender Adaptor | Installed between the Smart Meter and the Meter Base; includes measurement CTs and neutral connector. |
| Meter Locking Ring | Secures the adaptor to the Meter Base. |
| Nylon Corrugated Conduit | Contains fused voltage leads and CT output leads for signal connections to CANDURA’s power monitors; includes liquid-tight fittings for 1.2” diameter enclosure hole. |

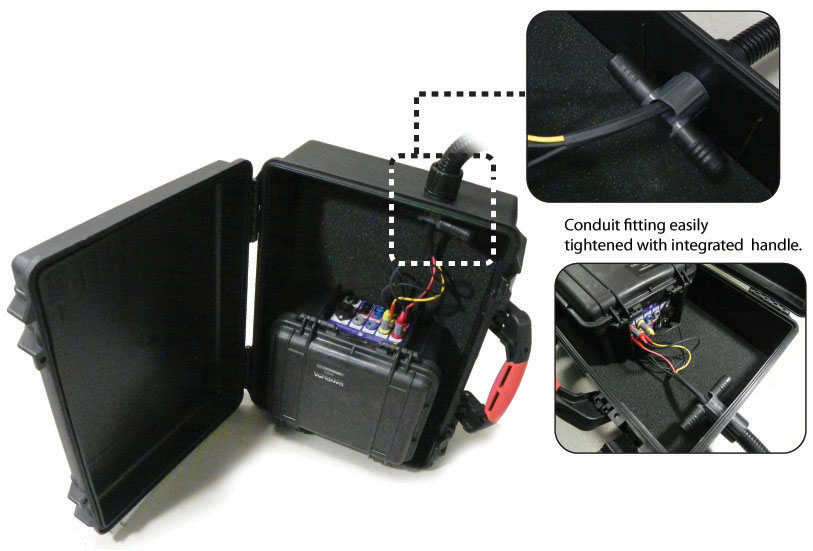

| IP67 Rated Enclosure* | Houses the power monitor outdoors and stores the MBA-2S Kit. |
| Multiple Lockout Hasp* | Vinyl-coated galvanized steel cable secures the power monitor enclosure to the service supply conduit. |
