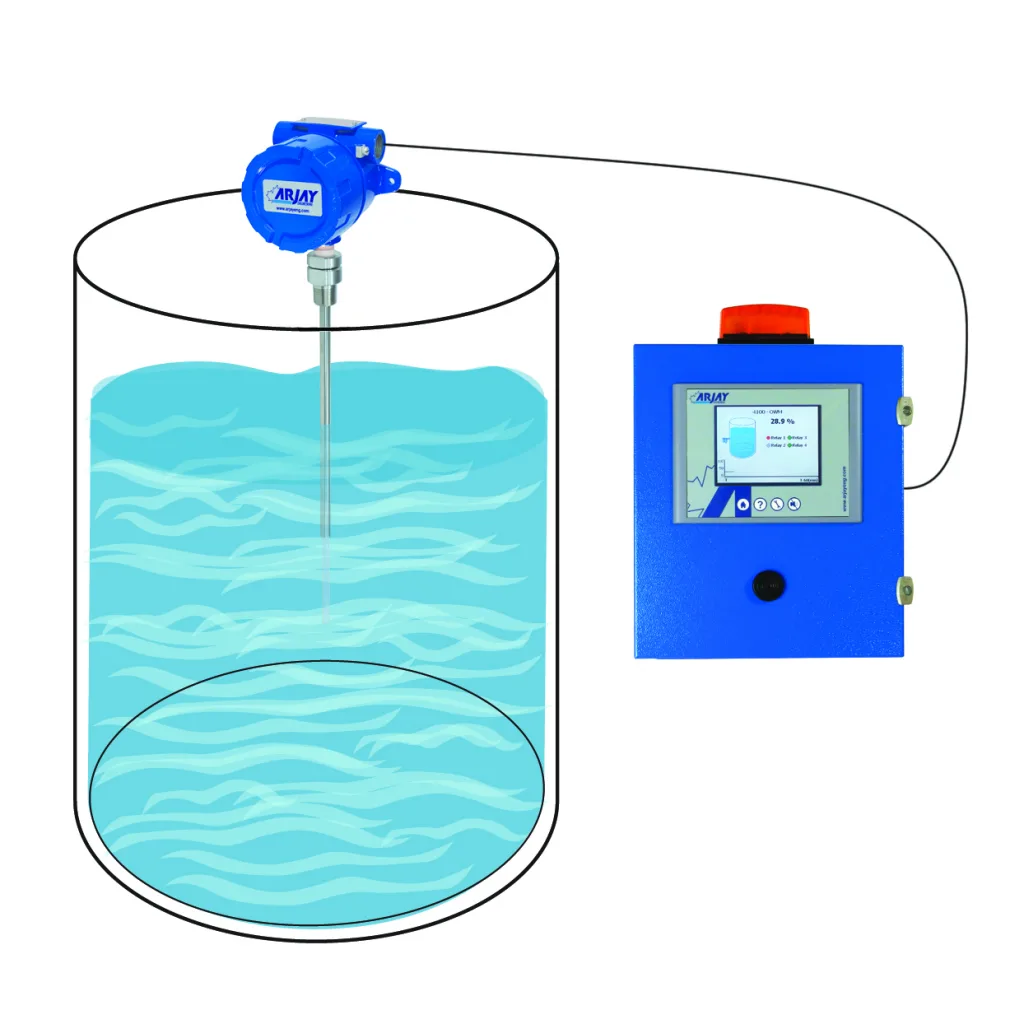

4100-OWM 油中水监测仪用于监测罐体或管道中水相向油相的转变；插入罐体或管道的探头测量电容场，是油品及其他液相变化通用监测的理想选择。
无活动部件
电子单元经标准双绞线远程安装
所有设置、标定与诊断均在控制面板操作
多点标定曲线
所有控制接线与接口均在控制面板完成
高频电容技术无需日常清洗
触摸屏界面，设置与操作简便
按小时/天/月递增的趋势显示
独特的电容方案免除日常清洗
控制与接口面板可安全远离工艺安装
罐体或管道安装
| 工作温度 | 0˚C to +55˚C |
|---|---|
| 分辨率 | .007% (.07 pF at 1,000 pF) |
| 精度 | .04% of full scale pF |
| 电源输入 | 24 vdc or 80-240 vac +/-10%, 1P, 50-60 HZ |
| 显示屏 | touch screen full colour sump view graphics, |
| % and engineering units of oil selectable trend line view or none | |
| 继电器输出 | four SPDT, 10 amp @ 240 vac, dry Pump relay has a discrete run time with level re-set |
| 外壳类型 | 4 metal painted blue / IP 66 可选 Type 4X SS or polycarbonate |
| 认证 | to UL / CSA / CE IEC 61010 |
| 探头 | -60˚C to +260˚C |
|---|---|
| PMC | -60˚C to +55˚C |
| Approval CSA Div | 1, Class 1, Groups C,D (also available I.S. with an Intrinsic Safety Barrier at the Contol unit) |
| ABSA-CRN #0F07450.2 | |
| Intrinsic Safety CSA Intrinsically Safe when ordered with Approved | |
| Barrier | in Control Unit Div 1, Class I, Groups A,B,C,D; Class II, Groups E,F,G; Class III, Encl.Type 4 |

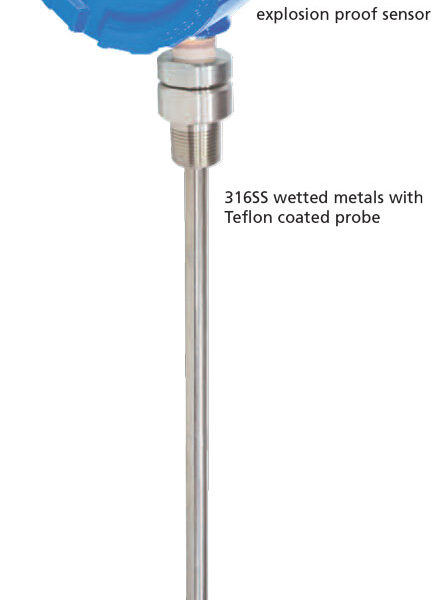

| 接液部件 | 316SS and Teflon |
| 探头 | materials are eligible for NACE MR-0175 Compliance |
