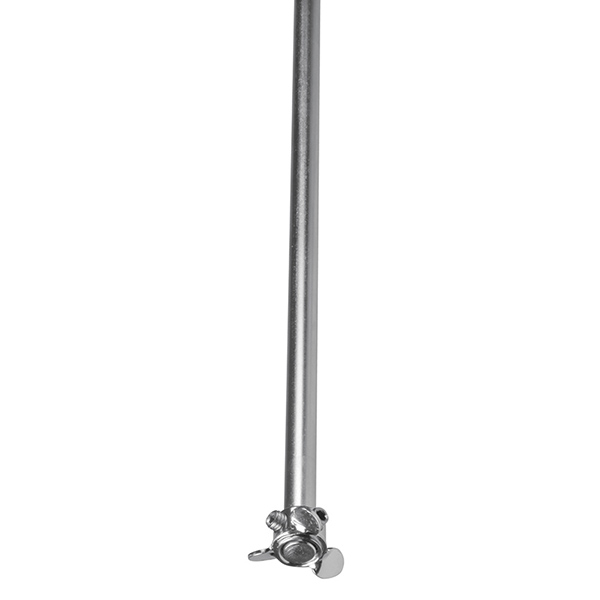

螺旋桨叶与轴组件 A190
返回
桨叶与轴配套成组，覆盖多种常用混合应用. This axial flow impeller is effective for low shear mixing. The 25 mm (1 in) diameter blade fixes to an 8 mm (⁵⁄₁₆ in) diameter shaft with included set screws. Blade and shaft are both 316L 不锈钢, with the propeller blade electropolished finish and the shaft with passivated finish.
桨叶与轴配套成组，覆盖多种常用混合应用. This axial flow impeller is effective for low shear mixing. The 25 mm (1 in) diameter blade fixes to an 8 mm (⁵⁄₁₆ in) diameter shaft with included set screws. Blade and shaft are both 316L 不锈钢, with the propeller blade electropolished finish and the shaft with passivated finish.
桨叶与轴配套成组，覆盖多种常用混合应用. This axial flow impeller is effective for low shear mixing. The 25 mm (1 in) diameter blade fixes to an 8 mm (⁵⁄₁₆ in) diameter shaft with included set screws. Blade and shaft are both 316L 不锈钢, with the propeller blade electropolished finish and the shaft with passivated finish.
规格要点
• 25 mm (1 in) dia
• 400 mm (16 in) shaft
• Axial flow
| 型号 | A190 |
|---|---|
| Flow Pattern | Axial |
| Bore Diameter | 8 mm (⁵⁄₁₆ in) |
| Blade Diameter | 25 mm (1 in) |
| Blade Rotation | Left hand |
| Blade Material | Electropolished 316L 不锈钢 |
| 轴长 | 400 mm (16 in) |
| 搅拌轴直径 | 8 mm (⁵⁄₁₆ in) |
| Shaft Material | Passivated 316L 不锈钢 |
| 重量 | 168 g (0.37 lb) |
| Product Dimensions | |
| Master Carton Dimensions | |
| UPC Code(s) |
| A190 | Pitched blade propeller, 25 mm (1 in) diameter blade paired with 400 mm (16 in) shaft, includes set screws. |
|---|---|
| A511 | Pitched blade propeller 25 mm (1 in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws |
