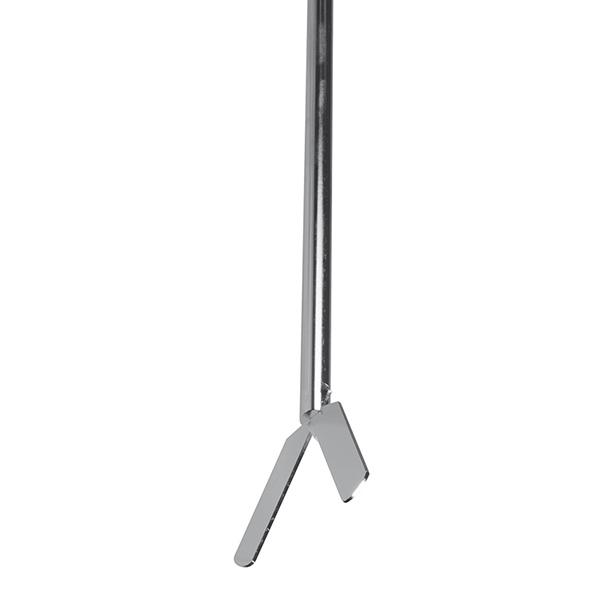

可折叠桨 A141
返回
This radial flow impeller is a popular choice for high speed, low viscosity mixing in carboys or narrow neck flasks. The blades are pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, fanning out with agitation to a maximum diameter of 90 mm (3 ½ in). Blades and shaft are 电抛光 316L 不锈钢. A high shear impeller with moderate vortexing properties, creating a vortex in 19 L (5 gal) of water at 1000 rpm.
This radial flow impeller is a popular choice for high speed, low viscosity mixing in carboys or narrow neck flasks. The blades are pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, fanning out with agitation to a maximum diameter of 90 mm (3 ½ in). Blades and shaft are 电抛光 316L 不锈钢. A high shear impeller with moderate vortexing properties, creating a vortex in 19 L (5 gal) of water at 1000 rpm.
This radial flow impeller is a popular choice for high speed, low viscosity mixing in carboys or narrow neck flasks. The blades are pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, fanning out with agitation to a maximum diameter of 90 mm (3 ½ in). Blades and shaft are 电抛光 316L 不锈钢. A high shear impeller with moderate vortexing properties, creating a vortex in 19 L (5 gal) of water at 1000 rpm.
规格要点
• 10-90 mm (⅜ – 3 ½ in) dia
• 400 mm (16 in) shaft
• Radial flow
| 型号 | A141 |
|---|---|
| Flow Pattern | Radial |
| Blade Diameter | 10-90 mm (⅜ – 3 ½ in) |
| 轴长 | 400 mm (16 in) |
| 搅拌轴直径 | 8 mm (⁵⁄₁₆ in) |
| 材料 | Electropolished 316L 不锈钢 |
| 重量 | 127 g (0.3 lb) |
| Product Dimensions | |
| Master Carton Dimensions | |
| UPC Code(s) |
| A141 | Straight blade impeller, 10 - 90 mm (⅜ - 3 ½ in) diameter blade, pinned to shaft |
|---|
