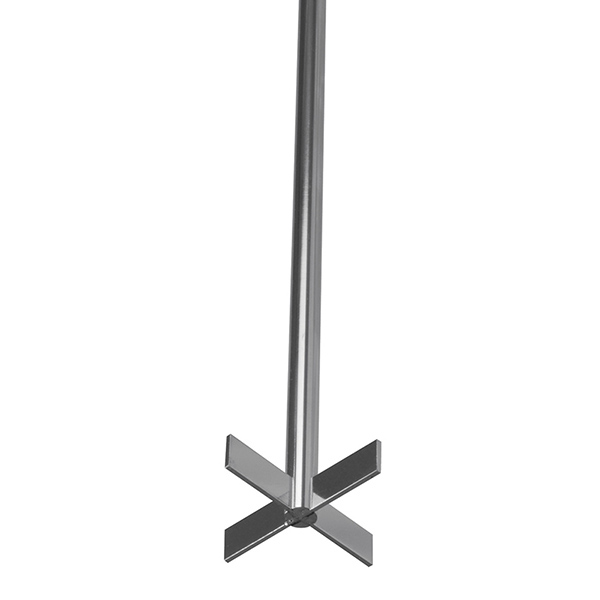

十字桨 A130
返回
型号：A130
This 径向流搅拌桨，适合高速、低粘度混合. The 50 mm (2 in) diameter blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all 电抛光 316L 不锈钢. A high shear impeller with high vortexing properties, creating a vortex in 19 L (5 gal) of water at 900 rpm.
This 径向流搅拌桨，适合高速、低粘度混合. The 50 mm (2 in) diameter blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all 电抛光 316L 不锈钢. A high shear impeller with high vortexing properties, creating a vortex in 19 L (5 gal) of water at 900 rpm.
This 径向流搅拌桨，适合高速、低粘度混合. The 50 mm (2 in) diameter blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all 电抛光 316L 不锈钢. A high shear impeller with high vortexing properties, creating a vortex in 19 L (5 gal) of water at 900 rpm.
规格要点
• 50 mm (2 in) dia
• 400 mm (16 in) shaft
• Radial flow
| 型号 | A130 |
|---|---|
| Flow Pattern | Radial |
| Blade Diameter | 50 mm (2 in) |
| 轴长 | 400 mm (16 in) |
| 搅拌轴直径 | 8 mm (⁵⁄₁₆ in) |
| 材料 | Electropolished 316L 不锈钢 |
| 重量 | 128 g (0.3 lb) |
| Product Dimensions | |
| Master Carton Dimensions | |
| UPC Code(s) |
| A130 | Crossed blade impeller, welded to shaft |
|---|
