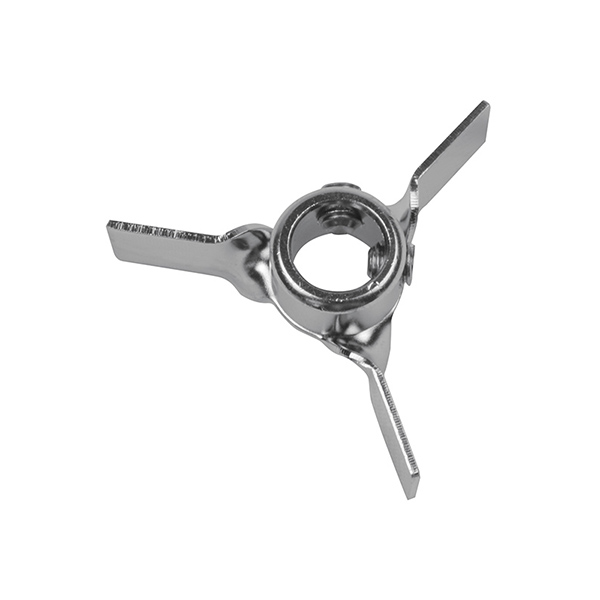

三叶涡轮桨 A553
返回
型号：A553
涡轮桨，直径 50 mm (2 in) diameter，电抛光 316L 不锈钢. The 9.5 mm (⅜ in) bore is compatible with Caframo shafts A713, A723, A733, A743, and A753. Set screws included. For high shear mixing with moderate vortexing.
涡轮桨，直径 50 mm (2 in) diameter，电抛光 316L 不锈钢. The 9.5 mm (⅜ in) bore is compatible with Caframo shafts A713, A723, A733, A743, and A753. Set screws included. For high shear mixing with moderate vortexing.
涡轮桨，直径 50 mm (2 in) diameter，电抛光 316L 不锈钢. The 9.5 mm (⅜ in) bore is compatible with Caframo shafts A713, A723, A733, A743, and A753. Set screws included. For high shear mixing with moderate vortexing.
规格要点
• 50 mm (2 in) dia
• 9.5 mm (⅜ in) bore
• Radial flow
| 型号 | A553 |
|---|---|
| Flow Pattern | Radial |
| Bore Diameter | 9.5 mm (⅜ in) |
| Blade Diameter | 50 mm (2 in) |
| 材料 | Electropolished 316L 不锈钢 |
| 重量 | 15.9 g (0.6 oz) |
| Product Dimensions | |
| Master Carton Dimensions | |
| UPC Code(s) |
| A553 | Turbine 3 blade propeller 50 mm (2 in) blade only, with 9.5 mm (⅜ in) bore, includes set screws. |
|---|---|
| A551 | Turbine 3 blade propeller 50 mm (2 in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws. |
