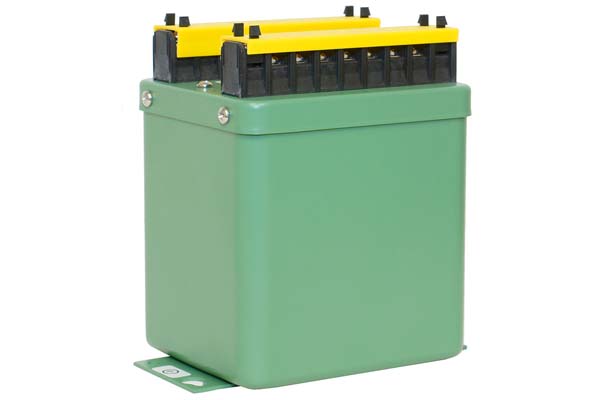

柔性-磁芯 交流 电力 变送器

柔性-磁芯 交流 电力 变送器

返回
Weschler Weschler美国
型号：Flexcore

这些 Flexcore 交流 瓦, VAR 或 瓦/VAR 变送器 测量 交流 电力 在 1, 2, 2½, 或 3 element 系统 configurations.

150, 300 与 600V 输入

60 或 50Hz

直流 ma 或 电压输出

外部 或 自 供电

精度 0.2%

可 应用 带 电流互感器

5 安 输入 和 60Hz part numbers 是 shown below.

立即询价 加入询价车
概要 特点规格 相关下载 解决方案

这些 Flexcore 交流 瓦, VAR 或 瓦/VAR 变送器 测量 交流 电力 在 1, 2, 2½, 或 3 element 系统 configurations.

150, 300 与 600V 输入

60 或 50Hz

直流 ma 或 电压输出

外部 或 自 供电

精度 0.2%

可 应用 带 电流互感器

5 安 输入 和 60Hz part numbers 是 shown below.

这些 Flexcore 交流 瓦, VAR 或 瓦/VAR 变送器 测量 交流 电力 在 1, 2, 2½, 或 3 element 系统 configurations.

5 安 输入 和 60Hz part numbers 是 shown below.

add suffix -50 用于 50Hz 型号.

add suffix -22 用于 230VAC 仪器 电力.

add suffix -w 用于 快速 50ms 响应时间.

see 数据 sheet 用于 型号 带 1A, 10A 或 20A 电流输入.

瓦/watthour 和 VAR/varhour 变送器 还 可选.

150, 300 与 600V 输入

直流 ma 或 电压输出

外部 或 自 供电

精度 0.2%

可 应用 带 电流互感器

Item # AC Input Full Scale System Power DC Output
GV5-001EM0-150V / 0-5A500VAR1ph, 2W, 1E85-135V4-12-20mA
GV5-002EM0-300V / 0-5A1kVAR1ph, 2W, 1E85-135V4-12-20mA
GV5-003EM0-600V / 0-5A2kVAR1ph, 2W, 1E85-135V4-12-20mA
GV5-004EM0-150V / 0-5A1kVAR3ph, 3W, 2E85-135V4-12-20mA
GV5-005EM0-300V / 0-5A2kVAR3ph, 3W, 2E85-135V4-12-20mA
GV5-006EM0-600V / 0-5A4kVAR3ph, 3W, 2E85-135V4-12-20mA
GV5-007EM0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3E85-135V4-12-20mA
GV5-008EM0-300V L-N / 0-5A3kVAR3ph, 4W, 3E85-135V4-12-20mA
GV5-7.5EM0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5E85-135V4-12-20mA
GV5-8.5EM0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5E85-135V4-12-20mA
GW5-001EM0-150V / 0-5A500W1ph, 2W, 1E85-135V4-12-20mA
GW5-002EM0-300V / 0-5A1kW1ph, 2W, 1E85-135V4-12-20mA
GW5-003EM0-600V / 0-5A2kW1ph, 2W, 1E85-135V4-12-20mA
GW5-004EM0-150V / 0-5A1kW3ph, 3W, 2E85-135V4-12-20mA
GW5-005EM0-300V / 0-5A2kW3ph, 3W, 2E85-135V4-12-20mA
GW5-006EM0-600V / 0-5A4kW3ph, 3W, 2E85-135V4-12-20mA
GW5-007EM0-150V L-N / 0-5A1.5kW3ph, 4W, 3E85-135V4-12-20mA
GW5-008EM0-300V L-N / 0-5A3kW3ph, 4W, 3E85-135V4-12-20mA
GW5-7.5EM0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5E85-135V4-12-20mA
GW5-8.5EM0-300V L-N / 0-5A3kW3ph, 4W, 2.5E85-135V4-12-20mA
GWV5-001B0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V+/-1mA
GWV5-001D0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V+/-10V
GWV5-001E0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V4-20mA
GWV5-001EM0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V4-12-20mA
GWV5-001X50-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V+/-5V
GWV5-002A0-300V / 0-5A1000W/VAR1ph, 2W, 1Eself+/-1mA
GWV5-002C0-300V / 0-5A1000W/VAR1ph, 2W, 1Eself+/-10V
GWV5-002CX50-300V / 0-5A1000W/VAR1ph, 2W, 1Eself+/-5V
GWV5-002EG0-300V / 0-5A1000W/VAR1ph, 2W, 1Eself4-20mA
GWV5-004B0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V+/-1mA
GWV5-004D0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V+/-10V
GWV5-004E0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V4-20mA
GWV5-004EM0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V4-12-20mA
GWV5-004X50-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V+/-5V
GWV5-007B0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V+/-1mA
GWV5-007D0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V+/-10V
GWV5-007E0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V4-20mA
GWV5-007EM0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V4-12-20mA
GWV5-007X50-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V+/-5V
GWV5-008D0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V+/-10V
GWV5-008E0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V4-20mA
GWV5-008EM0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V4-12-20mA
GWV5-008X50-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V+/-5V
GWV5-005A0-300V / 0-5A1000W/VAR3ph, 3W, 2Eself+/-1mA
GWV5-005C0-300V / 0-5A1000W/VAR3ph, 3W, 2Eself+/-10V
GWV5-005EG0-300V / 0-5A1000W/VAR3ph, 3W, 2Eself4-20mA
GWV5-005CX50-300V / 0-5A1000W/VAR3ph, 3W, 2Eself+/-5V
GWV5-008A0-300V L-N / 0-5A3000W/VAR3ph, 4W, 3Eself+/-1mA
GWV5-008C0-300V L-N / 0-5A3000W/VAR3ph, 4W, 3Eself+/-10V
GWV5-008EG0-300V L-N / 0-5A3000W/VAR3ph, 4W, 3Eself4-20mA
GWV5-008CX50-300V L-N / 0-5A3000W/VAR3ph, 4W, 3Eself+/-5V
GWV5-003A0-600V / 0-5A2000W/VAR1ph, 2W, 1Eself+/-1mA
GWV5-003C0-600V / 0-5A2000W/VAR1ph, 2W, 1Eself+/-10V
GWV5-003EG0-600V / 0-5A2000W/VAR1ph, 2W, 1Eself4-20mA
GWV5-003CX50-600V / 0-5A2000W/VAR1ph, 2W, 1Eself+/-5V
GWV5-003B0-600V / 0-5A2000W/VAR1ph, 2W, 1E85-135V+/-1mA
GWV5-003D0-600V / 0-5A2000W/VAR1ph, 2W, 1E85-135V+/-10V
GWV5-003E0-600V / 0-5A2000W/VAR1ph, 2W, 1E85-135V4-20mA
GWV5-003EM0-600V / 0-5A2000W/VAR1ph, 2W, 1E85-135V4-12-20mA
GWV5-003X50-600V / 0-5A2000W/VAR1ph, 2W, 1E85-135V+/-5V
GWV5-006A0-600V / 0-5A4000W/VAR3ph, 3W, 2Eself+/-1mA
GW5-002D0-300V / 0-5A1kW1ph, 2W, 1E85-135V+/-10V
GWV5-006C0-600V / 0-5A4000W/VAR3ph, 3W, 2Eself+/-10V
GW5-002E0-300V / 0-5A1kW1ph, 2W, 1E85-135V4-20mA
GW5-002X50-300V / 0-5A1kW1ph, 2W, 1E85-135V+/-5V
GWV5-006EG0-600V / 0-5A4000W/VAR3ph, 3W, 2Eself4-20mA
GW5-003A0-600V / 0-5A2kW1ph, 2W, 1Eself+/-1mA
GW5-003C0-600V / 0-5A2kW1ph, 2W, 1Eself+/-10V
GWV5-006CX50-600V / 0-5A4000W/VAR3ph, 3W, 2Eself+/-5V
GW5-003EG0-600V / 0-5A2kW1ph, 2W, 1Eself4-20mA
GW5-003EMG0-600V / 0-5A2kW1ph, 2W, 1Eself4-12-20mA
GWV5-006B0-600V / 0-5A4000W/VAR3ph, 3W, 2E85-135V+/-1mA
GW5-003CX50-600V / 0-5A2kW1ph, 2W, 1Eself+/-5V
GW5-003B0-600V / 0-5A2kW1ph, 2W, 1E85-135V+/-1mA
GWV5-006D0-600V / 0-5A4000W/VAR3ph, 3W, 2E85-135V+/-10V
GW5-003D0-600V / 0-5A2kW1ph, 2W, 1E85-135V+/-10V
GW5-003E0-600V / 0-5A2kW1ph, 2W, 1E85-135V4-20mA
GWV5-006E0-600V / 0-5A4000W/VAR3ph, 3W, 2E85-135V4-20mA
GW5-003X50-600V / 0-5A2kW1ph, 2W, 1E85-135V+/-5V
GW5-004A0-150V / 0-5A1kW3ph, 3W, 2Eself+/-1mA
GWV5-006EM0-600V / 0-5A4000W/VAR3ph, 3W, 2E85-135V4-12-20mA
GW5-004C0-150V / 0-5A1kW3ph, 3W, 2Eself+/-10V
GW5-004EG0-150V / 0-5A1kW3ph, 3W, 2Eself4-20mA
GWV5-006X50-600V / 0-5A4000W/VAR3ph, 3W, 2E85-135V+/-5V
GW5-001A0-150V / 0-5A500W1ph, 2W, 1Eself+/-1mA
GW5-001C0-150V / 0-5A500W1ph, 2W, 1Eself+/-10V
GW5-001EG0-150V / 0-5A500W1ph, 2W, 1Eself4-20mA
GW5-001EMG0-150V / 0-5A500W1ph, 2W, 1Eself4-12-20mA
GW5-001CX50-150V / 0-5A500W1ph, 2W, 1Eself+/-5V
GW5-001B0-150V / 0-5A500W1ph, 2W, 1E85-135V+/-1mA
GW5-001D0-150V / 0-5A500W1ph, 2W, 1E85-135V+/-10V
GW5-001E0-150V / 0-5A500W1ph, 2W, 1E85-135V4-20mA
GW5-001X50-150V / 0-5A500W1ph, 2W, 1E85-135V+/-5V
GW5-002A0-300V / 0-5A1kW1ph, 2W, 1Eself+/-1mA
GW5-002C0-300V / 0-5A1kW1ph, 2W, 1Eself+/-10V
GW5-002EG0-300V / 0-5A1kW1ph, 2W, 1Eself4-20mA
GW5-002EMG0-300V / 0-5A1kW1ph, 2W, 1Eself4-12-20mA
GW5-002CX50-300V / 0-5A1kW1ph, 2W, 1Eself+/-5V
GW5-002B0-300V / 0-5A1kW1ph, 2W, 1E85-135V+/-1mA
GW5-004EMG0-150V / 0-5A1kW3ph, 3W, 2Eself4-12-20mA
GW5-004CX50-150V / 0-5A1kW3ph, 3W, 2Eself+/-5V
GW5-004B0-150V / 0-5A1kW3ph, 3W, 2E85-135V+/-1mA
GW5-004D0-150V / 0-5A1kW3ph, 3W, 2E85-135V+/-10V
GW5-004E0-150V / 0-5A1kW3ph, 3W, 2E85-135V4-20mA
GW5-004X50-150V / 0-5A1kW3ph, 3W, 2E85-135V+/-5V
GW5-005A0-300V / 0-5A2kW3ph, 3W, 2Eself+/-1mA
GW5-005C0-300V / 0-5A2kW3ph, 3W, 2Eself+/-10V
GW5-005EG0-300V / 0-5A2kW3ph, 3W, 2Eself4-20mA
GW5-005EMG0-300V / 0-5A2kW3ph, 3W, 2Eself4-12-20mA
GW5-005CX50-300V / 0-5A2kW3ph, 3W, 2Eself+/-5V
GW5-005B0-300V / 0-5A2kW3ph, 3W, 2E85-135V+/-1mA
GW5-005D0-300V / 0-5A2kW3ph, 3W, 2E85-135V+/-10V
GW5-005E0-300V / 0-5A2kW3ph, 3W, 2E85-135V4-20mA
GW5-005X50-300V / 0-5A2kW3ph, 3W, 2E85-135V+/-5V
GW5-006A0-600V / 0-5A4kW3ph, 3W, 2Eself+/-1mA
GW5-006C0-600V / 0-5A4kW3ph, 3W, 2Eself+/-10V
GW5-006EG0-600V / 0-5A4kW3ph, 3W, 2Eself4-20mA
GW5-006EMG0-600V / 0-5A4kW3ph, 3W, 2Eself4-12-20mA
GW5-006CX50-600V / 0-5A4kW3ph, 3W, 2Eself+/-5V
GW5-006B0-600V / 0-5A4kW3ph, 3W, 2E85-135V+/-1mA
GW5-006D0-600V / 0-5A4kW3ph, 3W, 2E85-135V+/-10V
GW5-006E0-600V / 0-5A4kW3ph, 3W, 2E85-135V4-20mA
GW5-006X50-600V / 0-5A4kW3ph, 3W, 2E85-135V+/-5V
GW5-007A0-150V L-N / 0-5A1.5kW3ph, 4W, 3Eself+/-1mA
GW5-007C0-150V L-N / 0-5A1.5kW3ph, 4W, 3Eself+/-10V
GW5-007EG0-150V L-N / 0-5A1.5kW3ph, 4W, 3Eself4-20mA
GW5-007EMG0-150V L-N / 0-5A1.5kW3ph, 4W, 3Eself4-12-20mA
GW5-007CX50-150V L-N / 0-5A1.5kW3ph, 4W, 3Eself+/-5V
GW5-007B0-150V L-N / 0-5A1.5kW3ph, 4W, 3E85-135V+/-1mA
GW5-007D0-150V L-N / 0-5A1.5kW3ph, 4W, 3E85-135V+/-10V
GW5-007E0-150V L-N / 0-5A1.5kW3ph, 4W, 3E85-135V4-20mA
GW5-007X50-150V L-N / 0-5A1.5kW3ph, 4W, 3E85-135V+/-5V
GW5-008A0-300V L-N / 0-5A3kW3ph, 4W, 3Eself+/-1mA
GW5-008C0-300V L-N / 0-5A3kW3ph, 4W, 3Eself+/-10V
GW5-008EG0-300V L-N / 0-5A3kW3ph, 4W, 3Eself4-20mA
GW5-008EMG0-300V L-N / 0-5A3kW3ph, 4W, 3Eself4-12-20mA
GW5-008CX50-300V L-N / 0-5A3kW3ph, 4W, 3Eself+/-5V
GW5-008B0-300V L-N / 0-5A3kW3ph, 4W, 3E85-135V+/-1mA
GW5-008D0-300V L-N / 0-5A3kW3ph, 4W, 3E85-135V+/-10V
GW5-008E0-300V L-N / 0-5A3kW3ph, 4W, 3E85-135V4-20mA
GW5-008X50-300V L-N / 0-5A3kW3ph, 4W, 3E85-135V+/-5V
GW5-7.5A0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5Eself+/-1mA
GW5-7.5C0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5Eself+/-10V
GW5-7.5EG0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5Eself4-20mA
GW5-7.5EMG0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5Eself4-12-20mA
GW5-7.5CX50-150V L-N / 0-5A1.5kW3ph, 4W, 2.5Eself+/-5V
GW5-7.5B0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5E85-135V+/-1mA
GW5-7.5D0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5E85-135V+/-10V
GW5-7.5E0-150V L-N / 0-5A1.5kW3ph, 4W, 2.5E85-135V4-20mA
GW5-7.5X50-150V L-N / 0-5A1.5kW3ph, 4W, 2.5E85-135V+/-5V
GW5-8.5A0-300V L-N / 0-5A3kW3ph, 4W, 2.5Eself+/-1mA
GW5-8.5C0-300V L-N / 0-5A3kW3ph, 4W, 2.5Eself+/-10V
GW5-8.5EG0-300V L-N / 0-5A3kW3ph, 4W, 2.5Eself4-20mA
GW5-8.5EMG0-300V L-N / 0-5A3kW3ph, 4W, 2.5Eself4-12-20mA
GW5-8.5CX50-300V L-N / 0-5A3kW3ph, 4W, 2.5Eself+/-5V
GW5-8.5B0-300V L-N / 0-5A3kW3ph, 4W, 2.5E85-135V+/-1mA
GW5-8.5D0-300V L-N / 0-5A3kW3ph, 4W, 2.5E85-135V+/-10V
GW5-8.5E0-300V L-N / 0-5A3kW3ph, 4W, 2.5E85-135V4-20mA
GW5-8.5X50-300V L-N / 0-5A3kW3ph, 4W, 2.5E85-135V+/-5V
GV5-001A0-150V / 0-5A500VAR1ph, 2W, 1Eself+/-1mA
GV5-001C0-150V / 0-5A500VAR1ph, 2W, 1Eself+/-10V
GV5-001EG0-150V / 0-5A500VAR1ph, 2W, 1Eself4-20mA
GV5-001EMG0-150V / 0-5A500VAR1ph, 2W, 1Eself4-12-20mA
GV5-001CX50-150V / 0-5A500VAR1ph, 2W, 1Eself+/-5V
GV5-001B0-150V / 0-5A500VAR1ph, 2W, 1E85-135V+/-1mA
GV5-001D0-150V / 0-5A500VAR1ph, 2W, 1E85-135V+/-10V
GV5-001E0-150V / 0-5A500VAR1ph, 2W, 1E85-135V4-20mA
GV5-001X50-150V / 0-5A500VAR1ph, 2W, 1E85-135V+/-5V
GV5-002A0-300V / 0-5A1kVAR1ph, 2W, 1Eself+/-1mA
GV5-002C0-300V / 0-5A1kVAR1ph, 2W, 1Eself+/-10V
GV5-002EG0-300V / 0-5A1kVAR1ph, 2W, 1Eself4-20mA
GV5-002EMG0-300V / 0-5A1kVAR1ph, 2W, 1Eself4-12-20mA
GV5-002CX50-300V / 0-5A1kVAR1ph, 2W, 1Eself+/-5V
GV5-002B0-300V / 0-5A1kVAR1ph, 2W, 1E85-135V+/-1mA
GV5-002D0-300V / 0-5A1kVAR1ph, 2W, 1E85-135V+/-10V
GV5-002E0-300V / 0-5A1kVAR1ph, 2W, 1E85-135V4-20mA
GV5-002X50-300V / 0-5A1kVAR1ph, 2W, 1E85-135V+/-5V
GV5-003A0-600V / 0-5A2kVAR1ph, 2W, 1Eself+/-1mA
GV5-003C0-600V / 0-5A2kVAR1ph, 2W, 1Eself+/-10V
GV5-003EG0-600V / 0-5A2kVAR1ph, 2W, 1Eself4-20mA
GV5-003EMG0-600V / 0-5A2kVAR1ph, 2W, 1Eself4-12-20mA
GV5-003CX50-600V / 0-5A2kVAR1ph, 2W, 1Eself+/-5V
GV5-003B0-600V / 0-5A2kVAR1ph, 2W, 1E85-135V+/-1mA
GV5-003D0-600V / 0-5A2kVAR1ph, 2W, 1E85-135V+/-10V
GV5-003E0-600V / 0-5A2kVAR1ph, 2W, 1E85-135V4-20mA
GV5-003X50-600V / 0-5A2kVAR1ph, 2W, 1E85-135V+/-5V
GV5-004A0-150V / 0-5A1kVAR3ph, 3W, 2Eself+/-1mA
GV5-004C0-150V / 0-5A1kVAR3ph, 3W, 2Eself+/-10V
GV5-004EG0-150V / 0-5A1kVAR3ph, 3W, 2Eself4-20mA
GV5-004EMG0-150V / 0-5A1kVAR3ph, 3W, 2Eself4-12-20mA
GV5-004CX50-150V / 0-5A1kVAR3ph, 3W, 2Eself+/-5V
GV5-004B0-150V / 0-5A1kVAR3ph, 3W, 2E85-135V+/-1mA
GV5-004D0-150V / 0-5A1kVAR3ph, 3W, 2E85-135V+/-10V
GV5-004E0-150V / 0-5A1kVAR3ph, 3W, 2E85-135V4-20mA
GV5-004X50-150V / 0-5A1kVAR3ph, 3W, 2E85-135V+/-5V
GV5-005A0-300V / 0-5A2kVAR3ph, 3W, 2Eself+/-1mA
GV5-005C0-300V / 0-5A2kVAR3ph, 3W, 2Eself+/-10V
GV5-005EG0-300V / 0-5A2kVAR3ph, 3W, 2Eself4-20mA
GV5-005EMG0-300V / 0-5A2kVAR3ph, 3W, 2Eself4-12-20mA
GV5-005CX50-300V / 0-5A2kVAR3ph, 3W, 2Eself+/-5V
GV5-005B0-300V / 0-5A2kVAR3ph, 3W, 2E85-135V+/-1mA
GV5-005D0-300V / 0-5A2kVAR3ph, 3W, 2E85-135V+/-10V
GV5-005E0-300V / 0-5A2kVAR3ph, 3W, 2E85-135V4-20mA
GV5-005X50-300V / 0-5A2kVAR3ph, 3W, 2E85-135V+/-5V
GV5-006A0-600V / 0-5A4kVAR3ph, 3W, 2Eself+/-1mA
GV5-006C0-600V / 0-5A4kVAR3ph, 3W, 2Eself+/-10V
GV5-006EG0-600V / 0-5A4kVAR3ph, 3W, 2Eself4-20mA
GV5-006EMG0-600V / 0-5A4kVAR3ph, 3W, 2Eself4-12-20mA
GV5-006CX50-600V / 0-5A4kVAR3ph, 3W, 2Eself+/-5V
GV5-006B0-600V / 0-5A4kVAR3ph, 3W, 2E85-135V+/-1mA
GV5-006D0-600V / 0-5A4kVAR3ph, 3W, 2E85-135V+/-10V
GV5-006E0-600V / 0-5A4kVAR3ph, 3W, 2E85-135V4-20mA
GV5-006X50-600V / 0-5A4kVAR3ph, 3W, 2E85-135V+/-5V
GV5-007A0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3Eself+/-1mA
GV5-007C0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3Eself+/-10V
GV5-007EG0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3Eself4-20mA
GV5-007EMG0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3Eself4-12-20mA
GV5-007CX50-150V L-N / 0-5A1.5kVAR3ph, 4W, 3Eself+/-5V
GV5-007B0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3E85-135V+/-1mA
GV5-007D0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3E85-135V+/-10V
GV5-007E0-150V L-N / 0-5A1.5kVAR3ph, 4W, 3E85-135V4-20mA
GV5-007X50-150V L-N / 0-5A1.5kVAR3ph, 4W, 3E85-135V+/-5V
GV5-008A0-300V L-N / 0-5A3kVAR3ph, 4W, 3Eself+/-1mA
GV5-008C0-300V L-N / 0-5A3kVAR3ph, 4W, 3Eself+/-10V
GV5-008EG0-300V L-N / 0-5A3kVAR3ph, 4W, 3Eself4-20mA
GV5-008EMG0-300V L-N / 0-5A3kVAR3ph, 4W, 3Eself4-12-20mA
GV5-008CX50-300V L-N / 0-5A3kVAR3ph, 4W, 3Eself+/-5V
GV5-008B0-300V L-N / 0-5A3kVAR3ph, 4W, 3E85-135V+/-1mA
GV5-008D0-300V L-N / 0-5A3kVAR3ph, 4W, 3E85-135V+/-10V
GV5-008E0-300V L-N / 0-5A3kVAR3ph, 4W, 3E85-135V4-20mA
GV5-008X50-300V L-N / 0-5A3kVAR3ph, 4W, 3E85-135V+/-5V
GV5-7.5A0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5Eself+/-1mA
GV5-7.5C0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5Eself+/-10V
GV5-7.5EG0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5Eself4-20mA
GV5-7.5EMG0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5Eself4-12-20mA
GV5-7.5CX50-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5Eself+/-5V
GV5-7.5B0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5E85-135V+/-1mA
GV5-7.5D0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5E85-135V+/-10V
GV5-7.5E0-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5E85-135V4-20mA
GV5-7.5X50-150V L-N / 0-5A1.5kVAR3ph, 4W, 2.5E85-135V+/-5V
GV5-8.5A0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5Eself+/-1mA
GV5-8.5C0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5Eself+/-10V
GV5-8.5EG0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5Eself4-20mA
GV5-8.5EMG0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5Eself4-12-20mA
GV5-8.5CX50-300V L-N / 0-5A3kVAR3ph, 4W, 2.5Eself+/-5V
GV5-8.5B0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5E85-135V+/-1mA
GV5-8.5D0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5E85-135V+/-10V
GV5-8.5E0-300V L-N / 0-5A3kVAR3ph, 4W, 2.5E85-135V4-20mA
GV5-8.5X50-300V L-N / 0-5A3kVAR3ph, 4W, 2.5E85-135V+/-5V
GWV5-001A0-150V / 0-5A500W/VAR1ph, 2W, 1Eself+/-1mA
GWV5-001C0-150V / 0-5A500W/VAR1ph, 2W, 1Eself+/-10V
GWV5-001EG0-150V / 0-5A500W/VAR1ph, 2W, 1Eself4-20mA
GWV5-001CX50-150V / 0-5A500W/VAR1ph, 2W, 1Eself+/-5V
GWV5-004A0-150V / 0-5A1000W/VAR3ph, 3W, 2Eself+/-1mA
GWV5-004C0-150V / 0-5A1000W/VAR3ph, 3W, 2Eself+/-10V
GWV5-004EG0-150V / 0-5A1000W/VAR3ph, 3W, 2Eself4-20mA
GWV5-004CX50-150V / 0-5A1000W/VAR3ph, 3W, 2Eself+/-5V
GWV5-007A0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3Eself+/-1mA
GWV5-007C0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3Eself+/-10V
GWV5-007EG0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3Eself4-20mA
GWV5-007CX50-150V L-N / 0-5A1500W/VAR3ph, 4W, 3Eself+/-5V
GWV5-002B0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V+/-1mA
GWV5-002D0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V+/-10V
GWV5-002E0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V4-20mA
GWV5-002EM0-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V4-12-20mA
GWV5-002X50-150V / 0-5A500W/VAR1ph, 2W, 1E85-135V+/-5V
GWV5-005B0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V+/-1mA
GWV5-005D0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V+/-10V
GWV5-005E0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V4-20mA
GWV5-005EM0-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V4-12-20mA
GWV5-005X50-150V / 0-5A1000W/VAR3ph, 3W, 2E85-135V+/-5V
GWV5-008B0-150V L-N / 0-5A1500W/VAR3ph, 4W, 3E85-135V+/-1mA

登录注册后查看更多技术资料
(产品样本 / 使用说明书 / 通讯指令 / 软件下载)

立即登录 / 注册

该产品的行业应用方案正在整理中。
如需了解同行业解决方案,请前往解决方案 或联系客服。

咨询应用方案
RELATED
相关产品
tyco Crompton integra 电力 与 电能 变送器 系统
Cromptontyco Crompton integra 电力 与 电能 变送器 系统
Electro Industries 电力 变送器 – shark 100T
Electro IndustriesElectro Industries 电力 变送器 – shark 100T
电力 变送器 – APT-TH 系列 – NK 技术
NK Technologies电力 变送器 – APT-TH 系列 – NK 技术
veris 开口式 KW 变送器
Verisveris 开口式 KW 变送器
0.041402s
