Simpson 频率表

Name: Simpson Simpson 频率表
Brand: Weschler
SKU: Simpson

Weschler美国

型号：Simpson

Simpson 频率表是适用于监测线路频率. 它们是应用 wherever 快速, 精准监测的 complex 电路为 essential. segmental 刻度仪表 present selected 频率量程遍及 entire 表盘面板在线性 fashion, 其中其他仪表是 squeezed 到 quarter 的英寸的 space.

立即询价加入询价车

概要特点规格相关下载解决方案

产品目录页 068 widevue-数据表 century-数据表

圆形-数据表矩形-数据表

精度: 3% 的满度

suspension: 轴尖和宝石轴承

表芯: 小型磁芯磁体

2½”, 3½” 和 4½” 尺寸规格

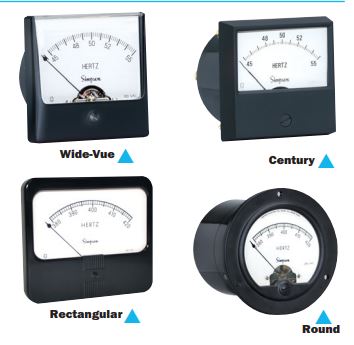

Item #	Model	Type	Frequency (Hz)	Voltage (V)	Size (in)
35100	1287	Wide-Vue	45-55	120	2.5
35101	1287	Wide-Vue	45-55	240	2.5
35102	1287	Wide-Vue	55-65	120	2.5
35105	1287	Wide-Vue	380-420	240	2.5
35104	1287	Wide-Vue	380-420	120	2.5
35103	1287	Wide-Vue	55-65	240	2.5
35106	1387	Wide-Vue	45-55	120	3.5
35109	1387	Wide-Vue	55-65	240	3.5
35107	1387	Wide-Vue	45-55	240	3.5
35108	1387	Wide-Vue	55-65	120	3.5
35110	1387	Wide-Vue	380-420	120	3.5
35113	1389	Wide-Vue	45-55	240	4.5
35112	1389	Wide-Vue	45-55	120	4.5
35111	1387	Wide-Vue	380-420	240	3.5
35114	1389	Wide-Vue	55-65	120	4.5
35115	1389	Wide-Vue	55-65	240	4.5
35116	1389	Wide-Vue	380-420	120	4.5
35117	1389	Wide-Vue	380-420	240	4.5
35118	2182	Century	45-55	120	2.5
35119	2182	Century	45-55	240	2.5
35121	2182	Century	55-65	240	2.5
35120	2182	Century	55-65	120	2.5
35122	2182	Century	380-420	120	2.5
35124	2183	Century	45-55	120	3.5
35123	2182	Century	380-420	240	2.5
35126	2183	Century	55-65	120	3.5
35125	2183	Century	45-55	240	3.5
35128	2183	Century	380-420	120	3.5
35129	2183	Century	380-420	240	3.5
35127	2183	Century	55-65	240	3.5
35130	2184	Century	45-55	120	4.5
35132	2184	Century	55-65	120	4.5
35131	2184	Century	45-55	240	4.5
35133	2184	Century	55-65	240	4.5
35134	2184	Century	380-420	120	4.5
35136	187	Rectangular	45-55	120	2.5
35135	2184	Century	380-420	240	4.5
35138	187	Rectangular	55-65	120	2.5
35137	187	Rectangular	45-55	240	2.5
35140	187	Rectangular	380-420	120	2.5
35141	187	Rectangular	380-420	240	2.5
35142	87	Rectangular	45-55	120	3.5
35139	187	Rectangular	55-65	240	2.5
35144	87	Rectangular	55-65	120	3.5
35146	87	Rectangular	380-420	120	3.5
35143	87	Rectangular	45-55	240	3.5
35145	87	Rectangular	55-65	240	3.5
35147	87	Rectangular	380-420	240	3.5
35149	89	Rectangular	45-55	240	4.5
35150	89	Rectangular	55-65	120	4.5
35148	89	Rectangular	45-55	120	4.5
35152	89	Rectangular	380-420	120	4.5
35151	89	Rectangular	55-65	240	4.5
35153	89	Rectangular	380-420	240	4.5
35154	185	Round	45-55	120	2.5
35155	185	Round	45-55	240	2.5
35158	185	Round	380-420	120	2.5
35157	185	Round	55-65	240	2.5
35156	185	Round	55-65	120	2.5
35162	85	Round	55-65	120	3.5
35159	185	Round	380-420	240	2.5
35160	85	Round	45-55	120	3.5
35161	85	Round	45-55	240	3.5
35164	85	Round	380-420	120	3.5
35163	85	Round	55-65	240	3.5
35165	85	Round	380-420	240	3.5
